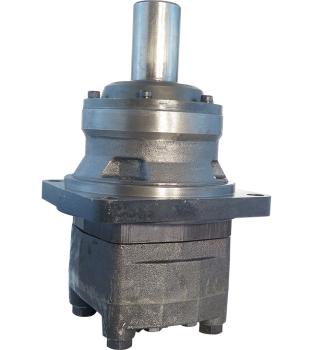

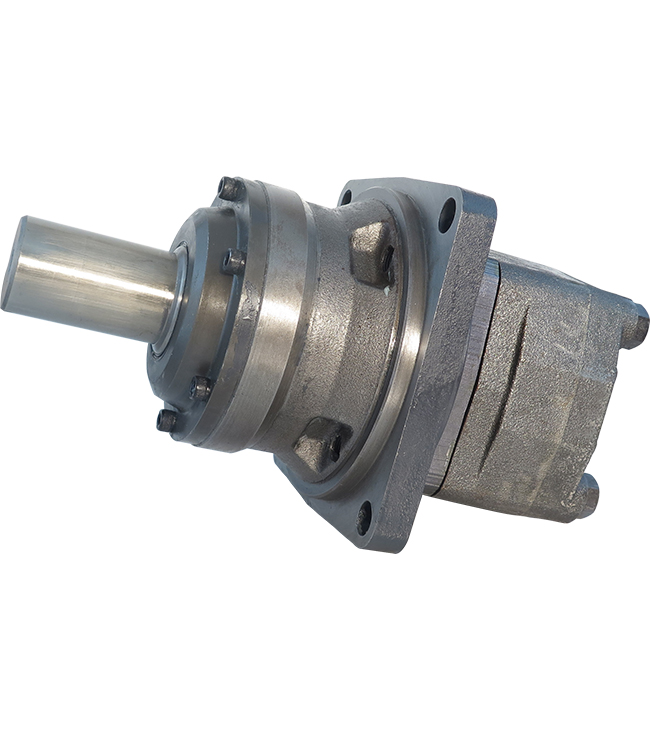

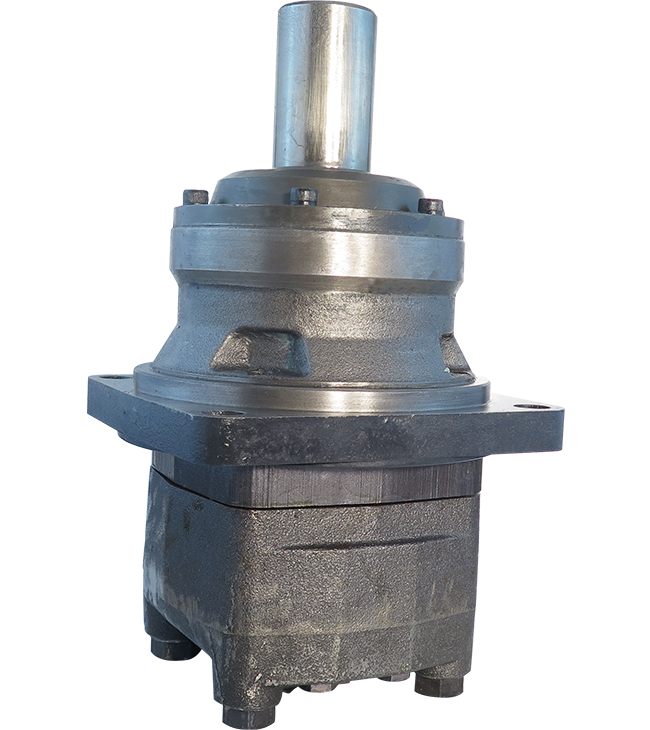

Hydraulic Motor CPMVW_C
Motor (Hydraulic) CPMVW_C
This motor is characterised by its high quality and its reasonable price.This product’s features are as follows:
- hydraulic motor CPMVW_C
- selectable displacement: 315 ccm/REV – 1000 ccm/REV
- ports: G 1’’
- shaft: Ø 50 mm cylindrical with key A14 x 9 x 70
- wheel flange
- disc valve type
- internal check valve
- usage without drain line possible
- OEM quality
- optimized for small spaces
Technical data:
| Type | CPMV315 | CPMV400 | CPMV500 | CPMV630 | CPMV800 | CPMV1000 |
| Displacement [ccm/REV] | 333 | 419 | 518 | 666 | 801 | 990 |
| max. Speed [RPM] | 510 | 500 | 400 | 320 | 250 | 200 |
| max. Torque [daNm] | 92 | 118 | 146 | 166 | 188 | 201.5 |
| max. Power [kW] | 38 | 47 | 47 | 40 | 33 | 26.6 |
| max. Pressure drop [bar] | 200 | 200 | 200 | 180 | 160 | 140 |
| max. Oil flow [l/min] | 160 | 200 | 200 | 200 | 200 | 200 |
| max. Input pressure [bar] | 210 | 210 | 210 | 210 | 210 | 210 |
CPMV available flange and shaft versions:
| Code | Mounting flange | Code | Shaft versions | |
| Omit | square flange 4-hole | C | Ø50 mm cylindrical with key A14 x 9 x 70 | |
| C | SAE C flange 4 holes | CO | Ø2 1/4 inch (57.15 mm) cylindrical with key | |
| W | wheelflange | SH | Ø2 1/8 inch, splined (16T) | |
| S | short mount | K | Conical 1:10 parallel key B16 x 10 x 32 |
Catalogue download:
