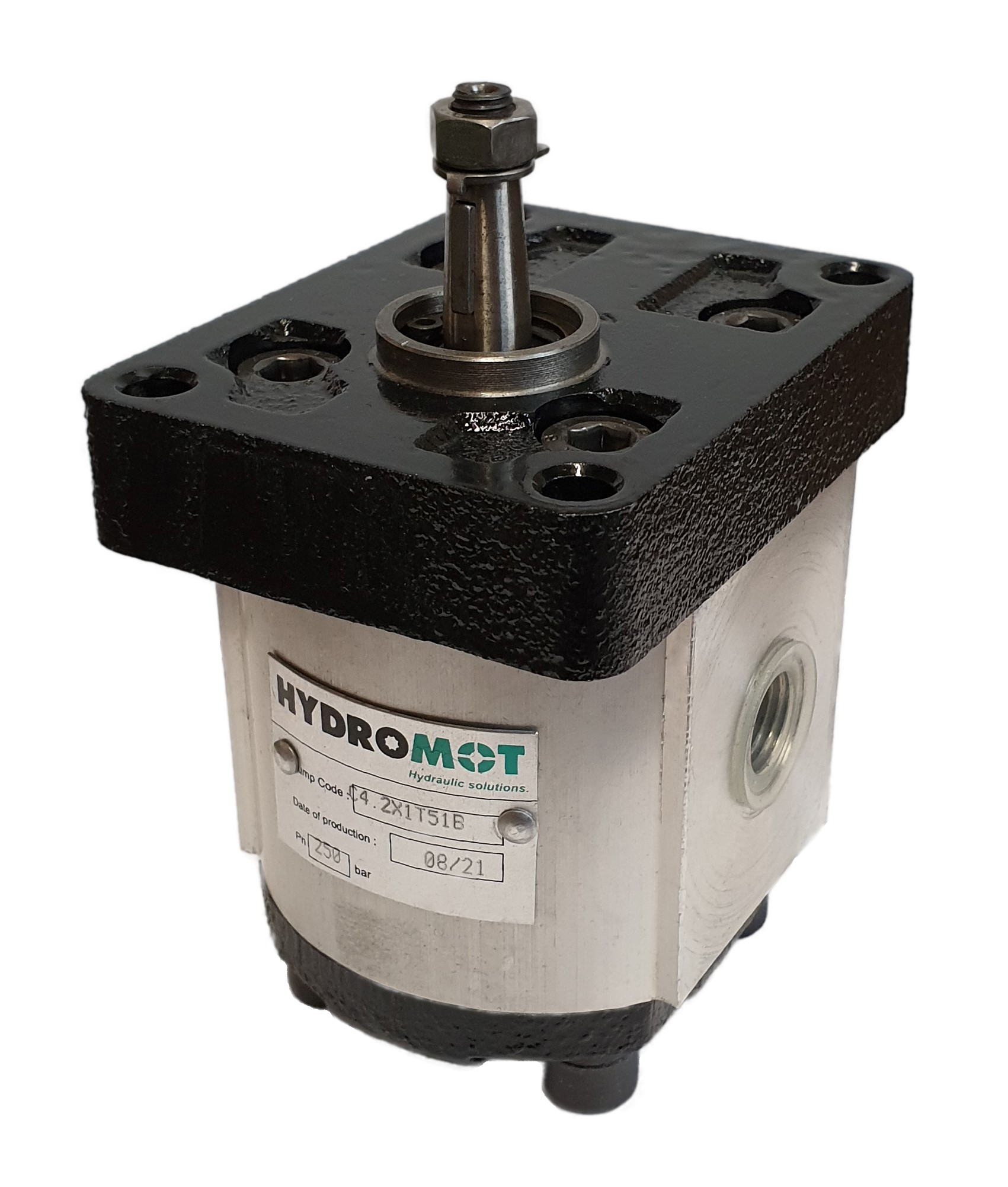

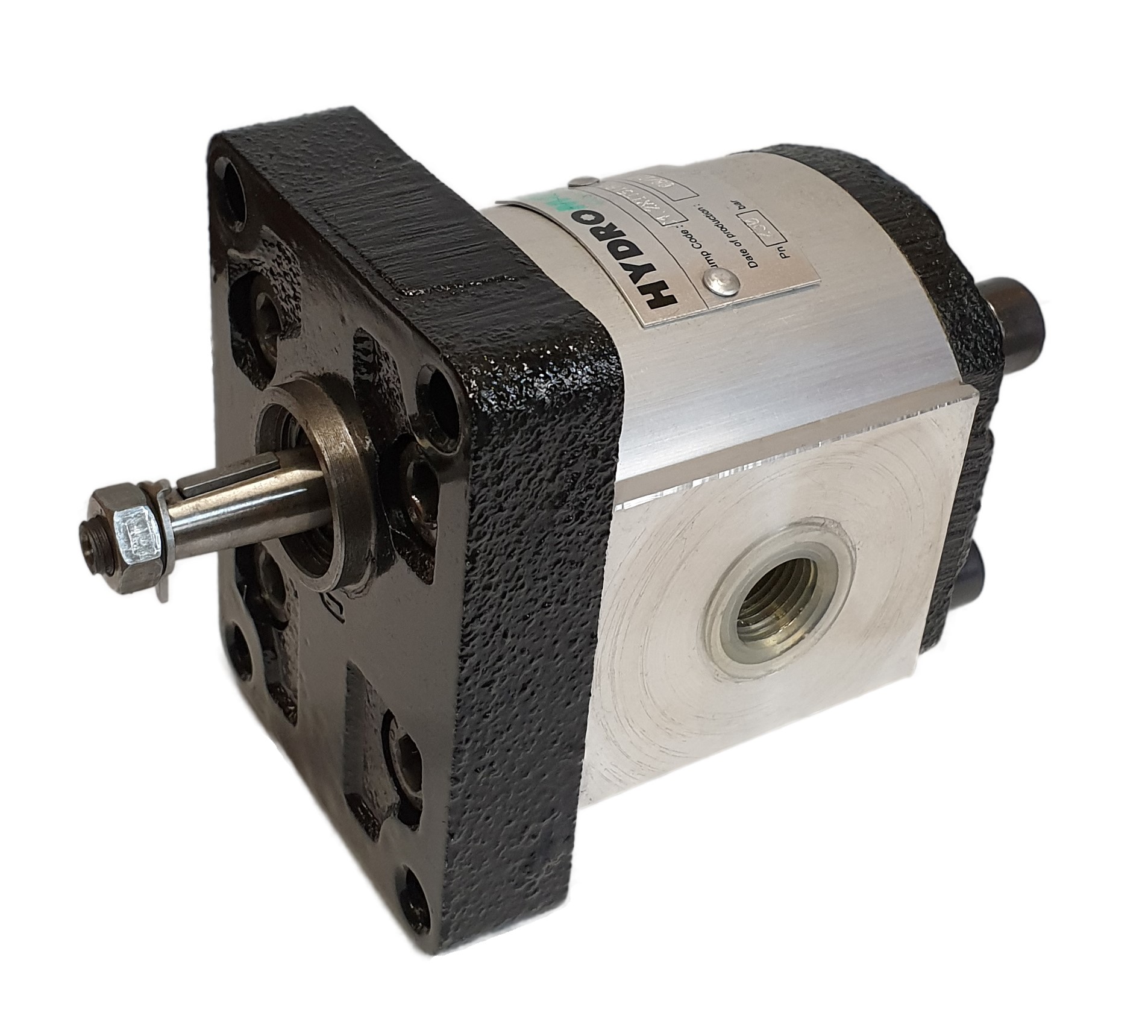

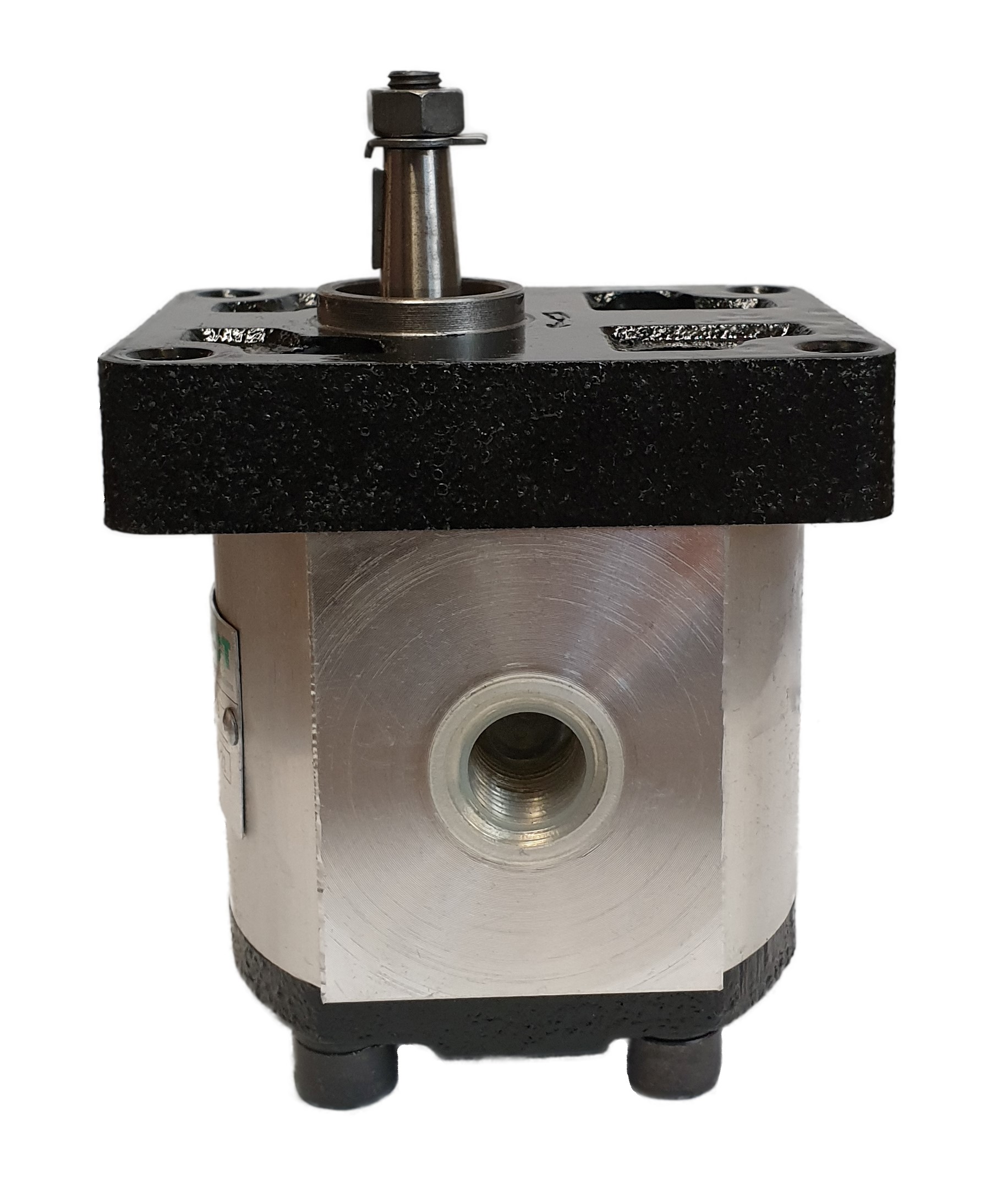

Hydraulic Gear Pump, Group 1, europ. flange, pipe mounting, Conical shaft 1:8, Selectable displacement 1 up to 7,9 ccm/REV

Hydraulic Gear Pump, Group 1, conical shaft 1:8, Pipe mounting, Selectable displacement 1 ccm/REV up to 7,9 ccm/REV

This pump is characterised by its high quality and reasonable price.

Its features are as follows:

• group 1
• selectable displacement 1 ccm/REV up to 7,9 ccm/REV
• shaft: conical 1:8
• centering Ø 25,4mm
• inlet / outlet port: pipe mounting 3/8’’
• Plessey flange
• rotation direction: right

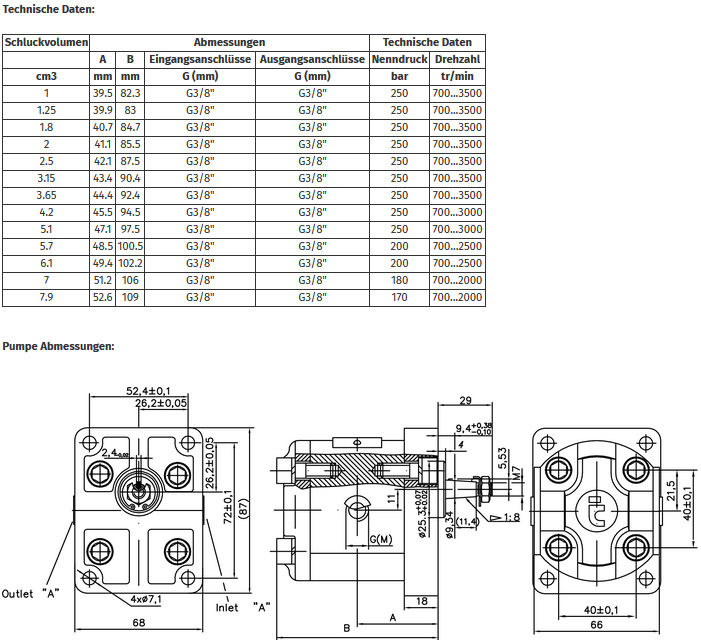

Technical data:


Displacement	Dimensions				Technical data
	A	B	Inlet ports	Outlet ports	Max.pressure	Speed
cm3	mm	mm	G (mm)	G (mm)	bar	tr/min
1	39.5	82.3	G3/8"	G3/8"	250	700...3500
1.25	39.9	83	G3/8"	G3/8"	250	700...3500
1.8	40.7	84.7	G3/8"	G3/8"	250	700...3500
2	41.1	85.5	G3/8"	G3/8"	250	700...3500
2.5	42.1	87.5	G3/8"	G3/8"	250	700...3500
3.15	43.4	90.4	G3/8"	G3/8"	250	700...3500
3.65	44.4	92.4	G3/8"	G3/8"	250	700...3500
4.2	45.5	94.5	G3/8"	G3/8"	250	700...3000
5.1	47.1	97.5	G3/8"	G3/8"	250	700...3000
5.7	48.5	100.5	G3/8"	G3/8"	200	700...2500
6.1	49.4	102.2	G3/8"	G3/8"	200	700...2500
7	51.2	106	G3/8"	G3/8"	180	700...2000
7.9	52.6	109	G3/8"	G3/8"	170	700...2000

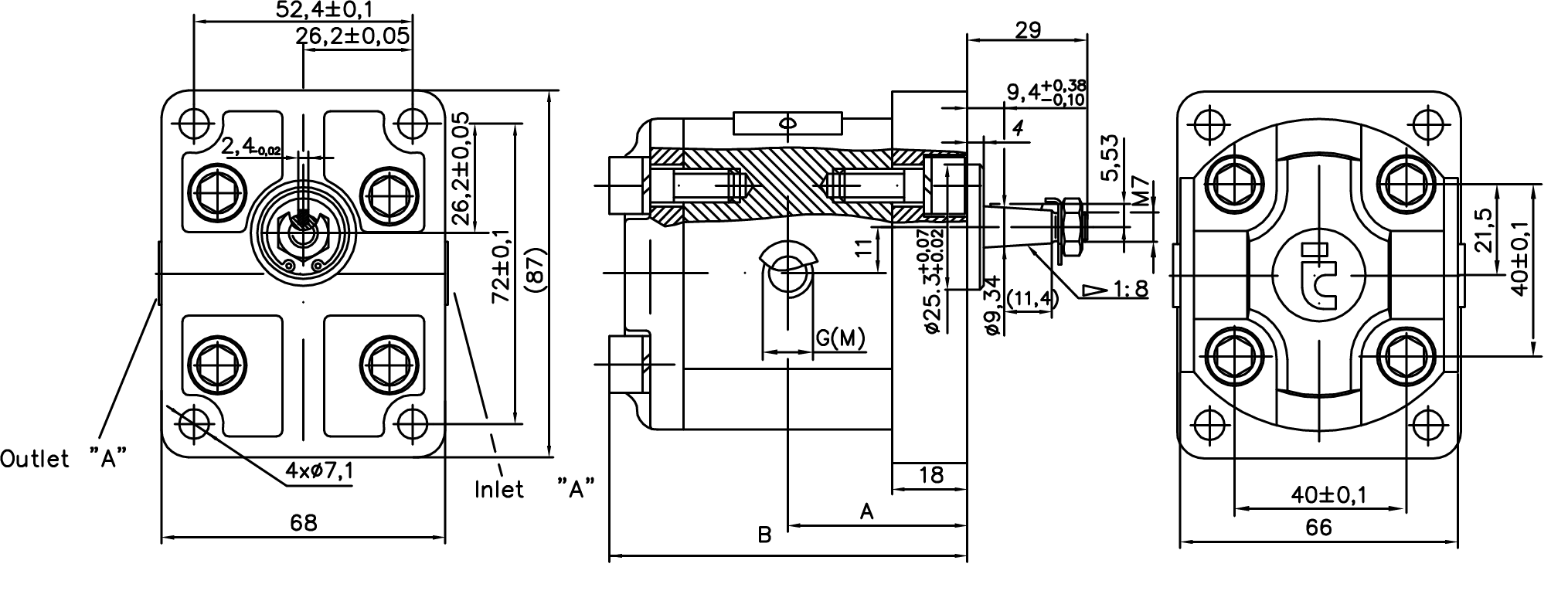

Pump dimensions:



Download catalogue:




Hydraulic component for integration in hydraulic systems
