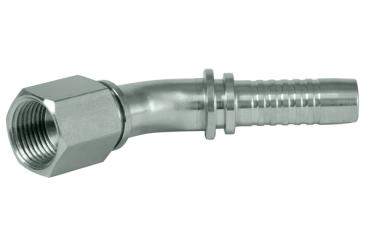

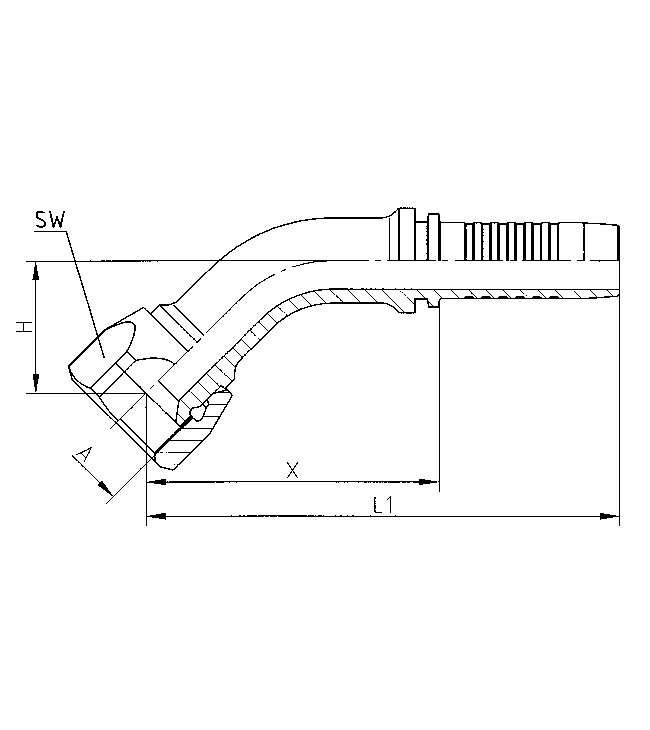

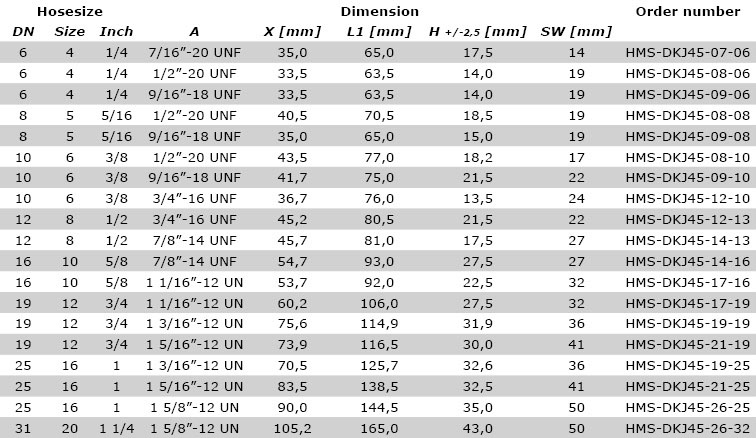

JIC threaded adapter, 74 ° cone with union nut, 45° elbow, UN / UNF thread
A: 7/16"-20 UNF
X: 39,0 mm
L1: 65,5 mm
H: 17,5 mm (+/- 2,5 mm)
SW: 15
DN6 / Size 4 / 1/4"
A: 1/2"-20 UNF
H: 13,0 mm (+/- 2,5 mm)
SW: 17
A: 9/16"-18 UNF
X: 40,0 mm
L1: 66,5 mm
H: 15,0 mm (+/- 2,5 mm)
SW: 19
X: 55,5 mm
L1: 82,0 mm
H: 14,5 mm (+/- 2,5 mm)
DN8 / Size 5 / 5/16"
X: 52,0 mm
L1: 78,5 mm
H: 16,0 mm (+/- 2,5 mm)
X: 43,5 mm
L1: 77,0 mm
H: 18,2 mm (+/- 2,5 mm)
DN10 / Size 6 / 3/8"
X: 46,2 mm
L1: 80,0 mm
H: 20,0 mm (+/- 2,5 mm)
A: 3/4"-16 UNF
X: 36,7 mm
L1: 76,0 mm
H: 13,5 mm (+/- 2,5 mm)
SW: 24
X: 62,0 mm
L1: 94,5 mm
H: 19,0 mm (+/- 2,5 mm)
DN12 / Size 8 / 1/2"
A: 7/8"-14 UNF
X: 64,0 mm
L1: 96,5 mm
H: 21,0 mm (+/- 2,5 mm)
SW: 27
X: 54,7 mm
L1: 93,0 mm
H: 27,5 mm (+/- 2,5 mm)
DN16 / Size 10 / 5/8"
A: 1 1/16"-12 UN
X: 53,7 mm
L1: 92,0 mm
H: 22,5 mm (+/- 2,5 mm)
SW: 32
X: 81,0 mm
L1: 125,3 mm
H: 25,0 mm (+/- 2,5 mm)
DN19 / Size 12 / 3/4"
A: 1 3/16"-12 UN
X: 75,6 mm
L1: 114,9 mm
H: 31,9 mm (+/- 2,5 mm)
SW: 36
A: 1 5/16"-12 UN
X: 84,0 mm
L1: 128,3 mm
H: 28,0 mm (+/- 2,5 mm)
SW: 41
X: 70,5 mm
L1: 125,7 mm
H: 32,6 mm (+/- 2,5 mm)
DN25 / Size 16 / 1"
{{.}}
{{{.}}}
