DIN - Metrical

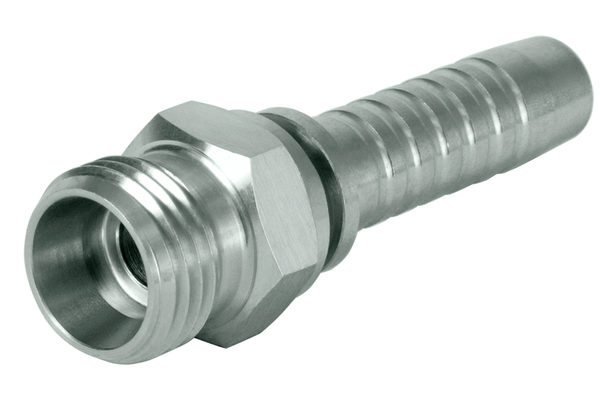

Threaded stem with bore form W (24 °) according to DIN 3861, light series

A: M14x1,5

R: 08L

X: 23,3 mm

L1: 53,5 mm

SW: 14

DN6 / Size 4 / 1/4"

Threaded stem with bore form W (24 °) according to DIN 3861, heavy series

A: M16x1,5

R: 08S

X: 25,3 mm

L1: 55,5 mm

SW: 17

DN6 / Size 4 / 1/4"

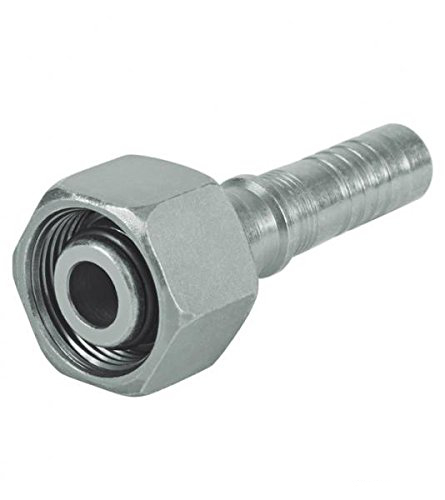

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series

A: M14x1,5

R: 08L

X: 24,4 mm

L1: 54,1 mm

SW: 17

DN6 / Size 4 / 1/4"

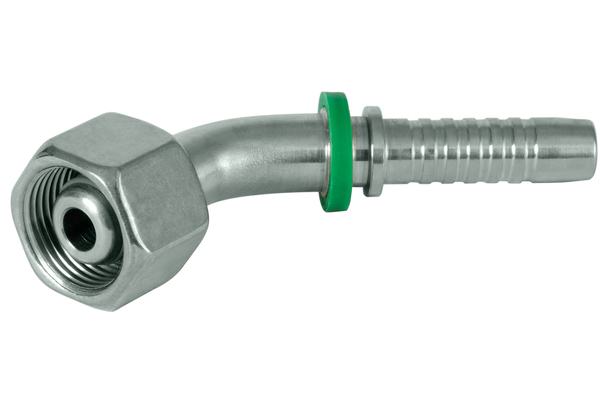

Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series

A: M14x1,5

R: 08L

X: 36,2 mm

L1: 66,2 mm

SW: 17

DN6 / Size 4 / 1/4"

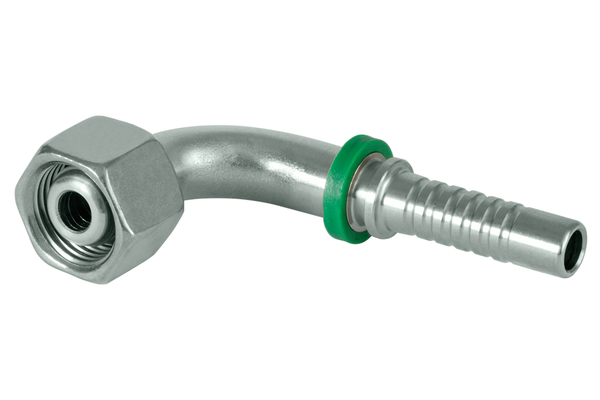

Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series

A: M14x1,5

R: 08L

X: 29,5 mm

L1: 59,5 mm

SW: 17

DN6 / Size 4 / 1/4"

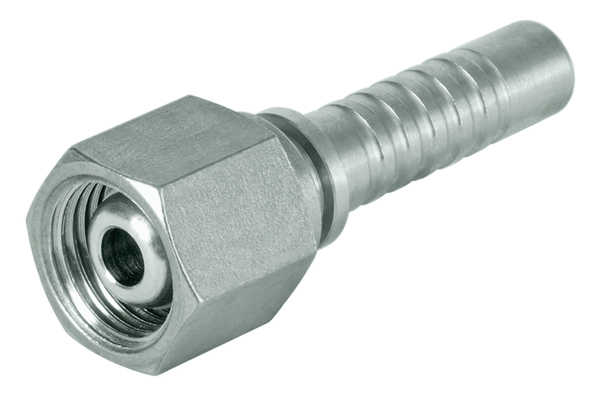

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series

A: M16x1,5

R: 08S

X: 24,4 mm

L1: 54,1 mm

SW: 19

DN6 / Size 4 / 1/4"

Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series

A: M16x1,5

R: 08S

X: 29,5 mm

L1: 59,5 mm

SW: 19

DN6 / Size 4 / 1/4"

Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series

A: M16x1,5

R: 08S

X: 36,2 mm

L1: 66,2 mm

SW: 19

DN6 / Size 4 / 1/4"

Threaded stem with bore form W (24 °) according to DIN 3861, light series

A: M16x1,5

R: 10L

X: 25,3 mm

L1: 55,5 mm

SW: 17

DN6 / Size 4 / 1/4"

Threaded stem with bore form W (24 °) according to DIN 3861, heavy series

A: M18x1,5

R: 10S

X: 26,3 mm

L1: 56,5 mm

SW: 19

DN6 / Size 4 / 1/4"

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series

A: M16x1,5

R: 10L

X: 22,3 mm

L1: 52,5 mm

SW: 19

DN6 / Size 4 / 1/4"

Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series

A: M16x1,5

R: 10L

X: 37,4 mm

L1: 67,4 mm

SW: 19

DN6 / Size 4 / 1/4"

Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series

A: M16x1,5

R: 10L

X: 31,0 mm

L1: 61,0 mm

SW: 19

DN6 / Size 4 / 1/4"

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series

A: M18x1,5

R: 10S

X: 25,8 mm

L1: 55,5 mm

SW: 22

DN6 / Size 4 / 1/4"

Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series

A: M18x1,5

R: 10S

X: 31,0 mm

L1: 61,0 mm

SW: 22

DN6 / Size 4 / 1/4"

Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series

A: M18x1,5

R: 10S

X: 37,4 mm

L1: 67,4 mm

SW: 22

DN6 / Size 4 / 1/4"
