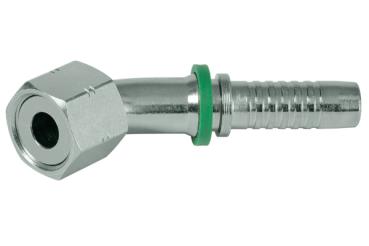

ORFS Sealing form, with union nut, 45° elbow, UN / UNF / UNS-Thread
A: 11/16"-16 UN
X: 48,0 mm
L1: 74,5 mm
H: 13,0 mm (+/- 2,5 mm)
SW: 22
DN6 / Size 4 / 1/4"
X: 52,0 mm
L1: 78,5 mm
DN8 / Size 5 / 5/16"
A: 9/16"-18 UNF
X: 47,0 mm
L1: 73,5 mm
H: 12,0 mm (+/- 2,5 mm)
SW: 17
X: 43,2 mm
L1: 76,7 mm
H: 17,9 mm (+/- 2,5 mm)
DN10 / Size 6 / 3/8"
A: 13/16"-16 UN
X: 44,5 mm
L1: 78,0 mm
H: 19,3 mm (+/- 2,5 mm)
SW: 24
X: 61,0 mm
L1: 93,5 mm
H: 17,0 mm (+/- 2,5 mm)
DN12 / Size 8 / 1/2"
A: 1"-14 UNS
X: 64,0 mm
L1: 96,5 mm
H: 20,0 mm (+/- 2,5 mm)
SW: 30
X: 52,5 mm
L1: 91,0 mm
H: 23,3 mm (+/- 2,5 mm)
DN16 / Size 10 / 5/8"
A: 1 3/16"-12 UN
X: 78,0 mm
L1: 122,3 mm
H: 21,0 mm (+/- 2,5 mm)
SW: 36
DN19 / Size 12 / 3/4"
A: 1 11/16"-12 UN
X: 129,0 mm
L1: 182,9 mm
H: 32,0 mm (+/- 2,5 mm)
SW: 50
DN31 / Size 20 / 1 1/4"
{{.}}
{{{.}}}
