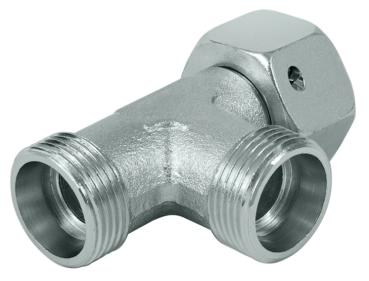

swivel nut run tee, L-series
pipe-Ø: 6 mm
thread: M12x1,5
max. working pressure 315 bar
SW: 14
Swivel nut run tee, L-series
pipe-Ø: 8 mm
thread: M14x1,5
SW: 17
pipe-Ø: 10 mm
thread: M16x1,5
SW: 19
pipe-Ø: 12 mm
thread: M18x1,5
SW: 22
pipe-Ø: 15 mm
thread: M22x1,5
SW: 27
pipe-Ø: 18 mm
thread: M26x1,5
SW: 32
pipe-Ø: 22 mm
thread: M30x2,0
max. working pressure 160 bar
SW: 36
pipe-Ø: 28 mm
thread: M36x2,0
SW: 41
pipe-Ø: 35 mm
thread: M45x2,0
SW: 50
pipe-Ø: 42 mm
thread: M52x2,0
SW: 60
swivel nut run tee, S-series
max. working pressure 630 bar
thread: M20x1,5
SW: 24
pipe-Ø: 14 mm
pipe-Ø: 16 mm
thread: M24x1,5
max. working pressure 400 bar
SW: 30
{{.}}
{{{.}}}
