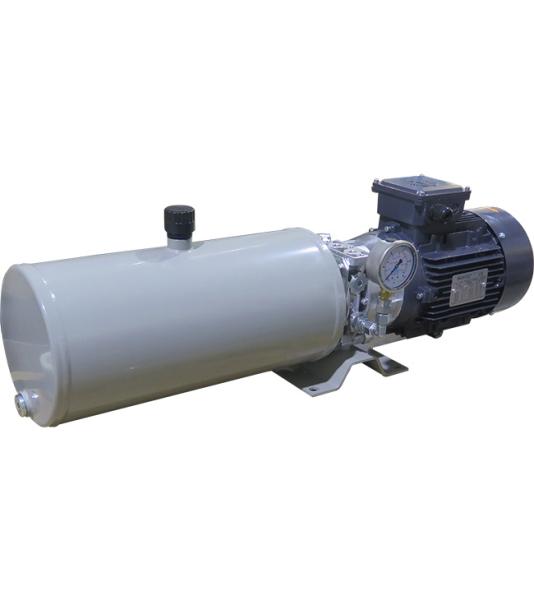

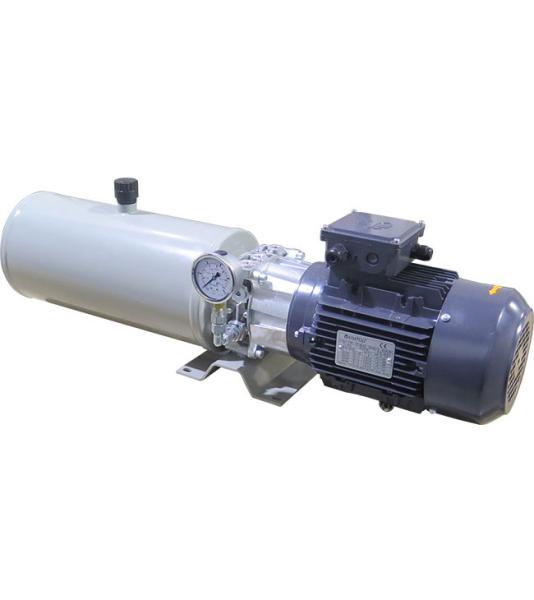

Hydraulic Power Pack, compact power pack 1.5 kW, 8 liter oil reservoir (steel), 4.8 ccm/REV gear pump, for double acting use

Hydraulic Power Pack, compact power pack 1.5 kW, 8 liter oil reservoir (steel), 4.8 ccm/REV gear pump, double acting

This hydraulic power pack is characterised by its high quality and its reasonable price.

The hydraulic power pack has the following features:

• Gear pump with 4,8 ccm/REV (equal about 6.9 l/min)
• Max. working pressure: PRV adjusted to 180 bar
• Hydraulic reservoir (steel reservoir) 8 liter
• Horizontal assembly
• Suction filter 0-17 l/min
• With pressure gauge 0-250 bar
• Connection "X" and "Y" plugged
• With 4/3-way solenoid valve (24 Volt) for double acting use
• Electrical motor selectable:

	3-phase AC motor	Single Phase AC motor
Voltage	400 Volt, 50 Hz	230 Volt, 50 Hz
Power	1,5 kW	1,5kW
Size	B14	B14
Remarks		incl. start-up and operating capacitor, centrifugal switch

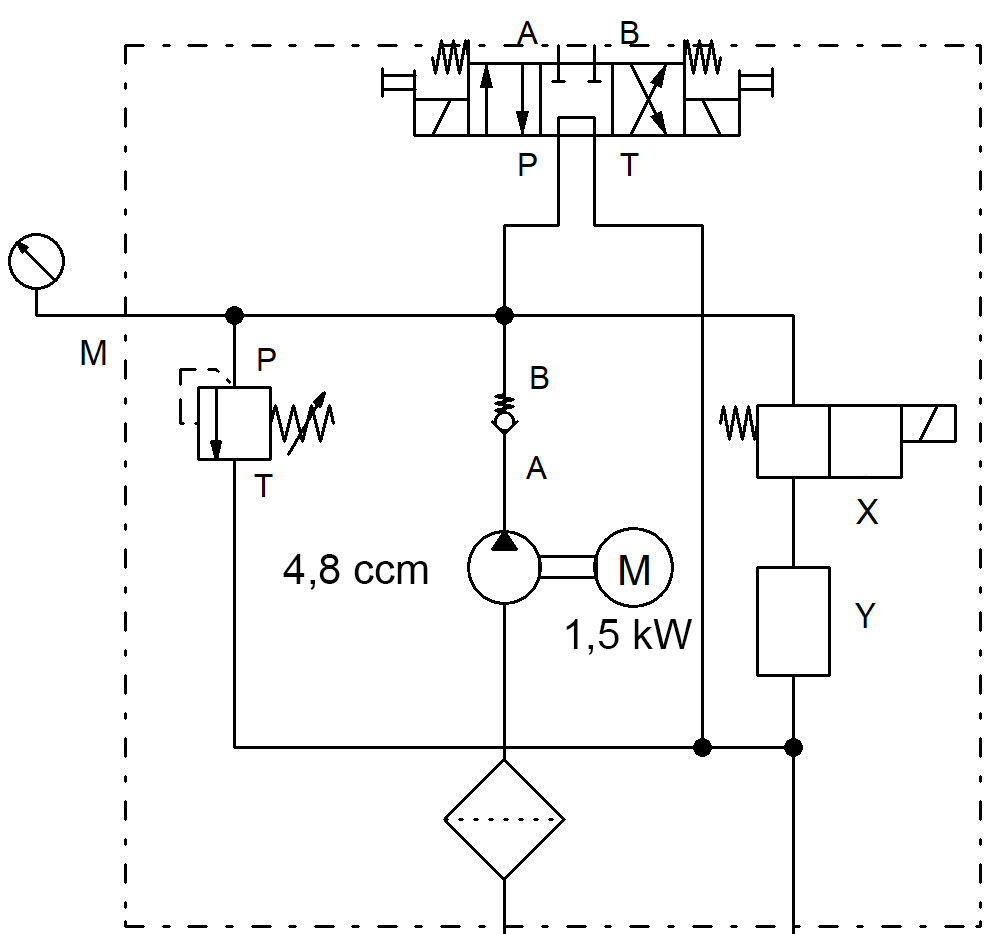

Hydraulic scheme:

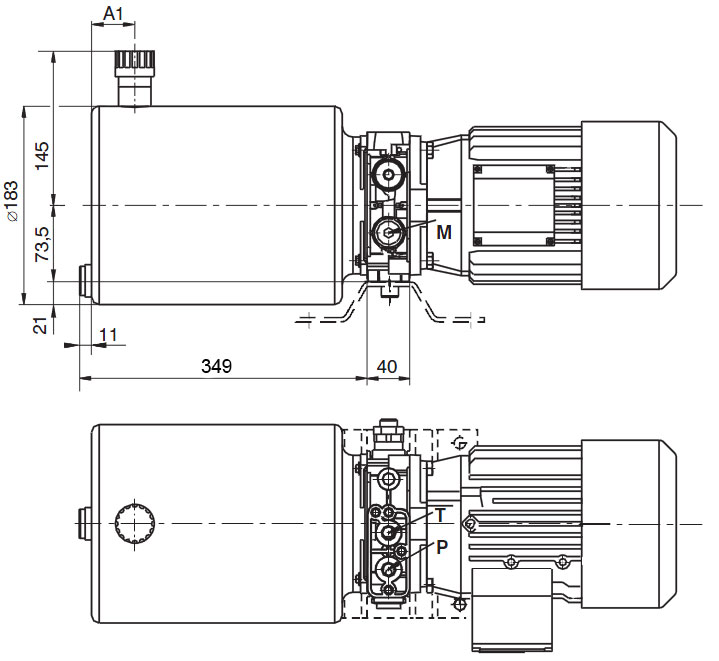

Dimension (without manifold):

More information and versions you'll find in our catalogue, delivery on request:





Hydraulic component for integration in hydraulic systems
