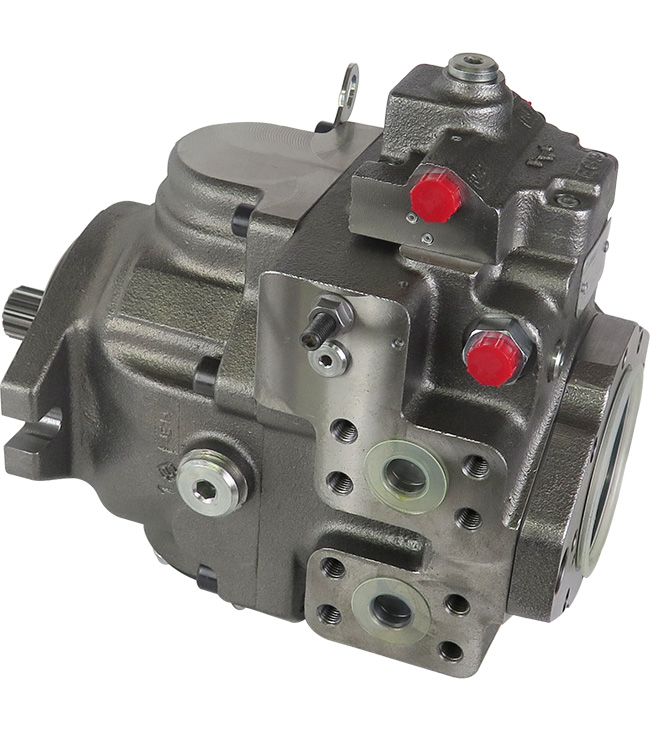

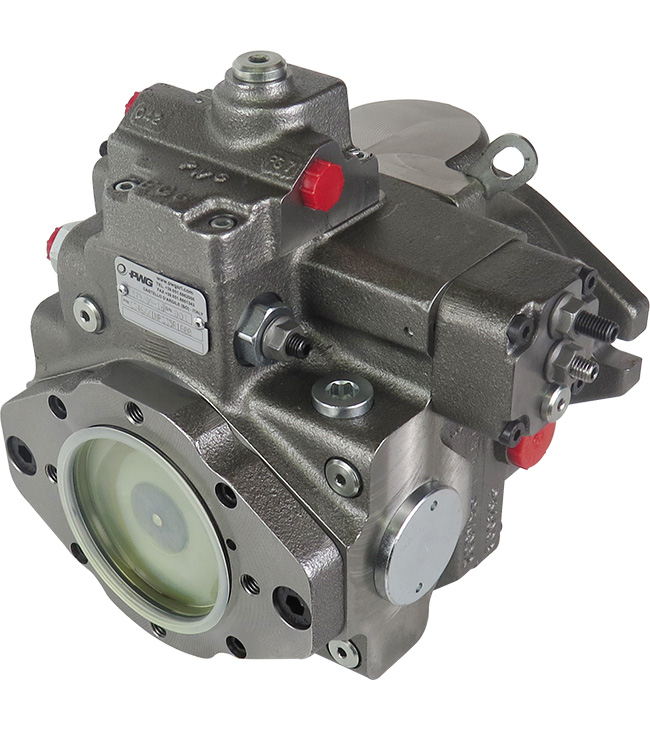

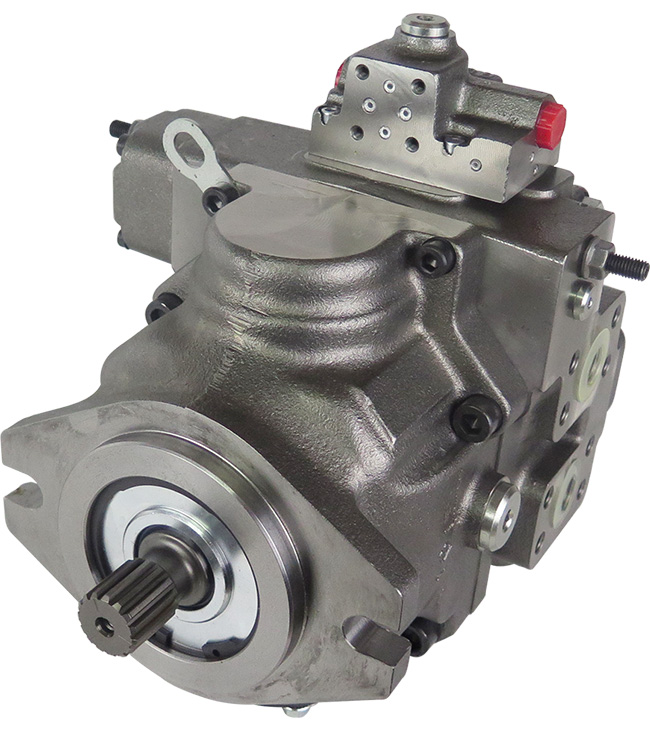

Hydraulic pump, Variable Axial Piston Pump C3, 46, 50 or 64 ccm/REV, hydraulic proportional control, rotation right, Pressure relief valve 350bar
Hydraulic pump, Variable Axial Piston Pump C3, 46, 50 or 64 ccm/REV, hydraulic proportional control, rotation right, Pressure relief valve 350bar
C3 46/50/64 series is a family of variable displacement axial piston pumps for use in closed circuits. The displacement is continuously variable by means of a tilting swash plate. The flow direction is reversible.
This product’s features are as follows:
- Variable axial piston pump for closed circuit, size C3
- Selectable displacement 46, 50 or 64 ccm/REV
- Control hydraulic proportional with zeroing (INP)
- Rotation right, pressure relief valve 350bar
- Output shaft splined SAE 15T 16/32DP
- Integrated charge pump
- Through drive for auxiliary gear pump SAE A Z=9 16/32 Dp
- Also available as double pump
Technical data:
Hydraulic Scheme Control:

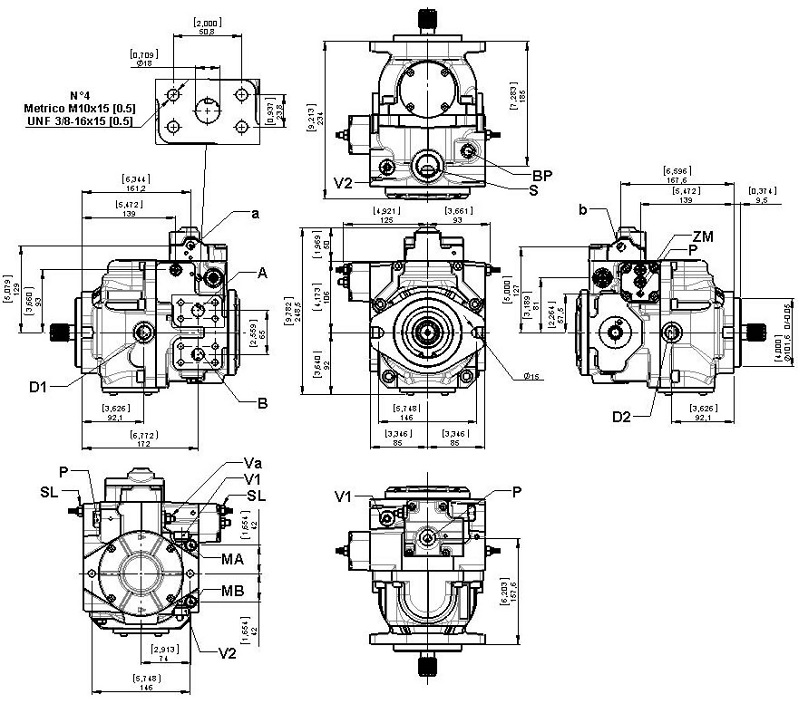

Dimensions:
More information is shown in our catalogue:
Hydraulic component for integration in hydraulic systems
All our hydraulic products are new, unused and in OEM quality (except when explicitly declared otherwise). Should a particular item not be in stock or not be represented here, please don’t hesitate to contact us. We will immediately try to find an appropriate solution pertaining to your given specifications. Moreover, we are constantly expanding our product range to offer you a wide variety of hydraulic components at reasonable prices. Hydromot hydraulics – always an excellent choice at low prices!
