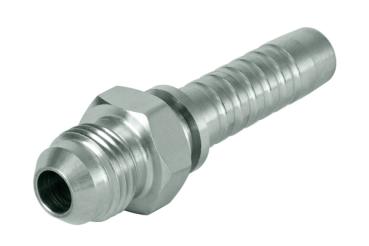

JIC threaded adapter, 74 ° cone with UN / UNF thread
A: 7/16"-20 UNF
L1: 49,3 mm
DN5 / Size 3 / 3/16"

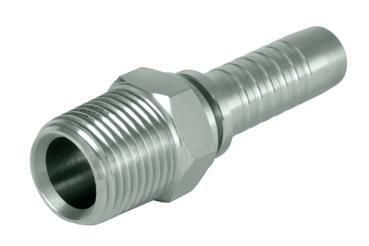

Threaded adapter with conical NPTF thread
A: 1/8"-27 NPTF
L1: 52,9 mm

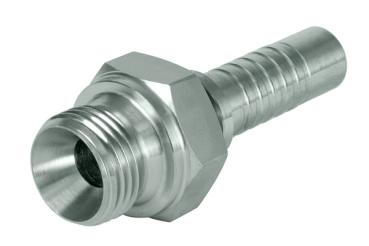

BSP threaded adapter, 60° cone with BSP male thread
A: G 1/8"
L1: 47,0 mm
DN6 / Size 4 / 1/4"

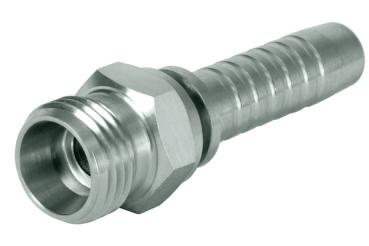

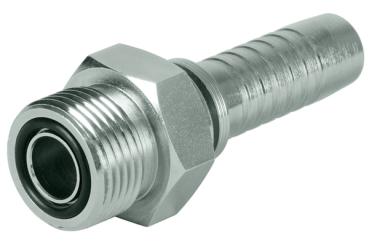

ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread
A: 9/16"-18 UNF
X: 24,6 mm
L1: 51,0 mm
SW: 17
O-Ring 7,65x1,78 mm
Threaded stem with bore form W (24 °) according to DIN 3861, light series
A: M12x1,5
R: 06L
X: 23,3 mm
L1: 53,5 mm
SW: 14
DN6 / SIZE 4 / 1/4"
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
A: M14x1,5
R: 06S
X: 25,7 mm
L1: 55,9 mm

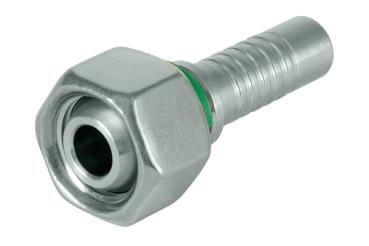

JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
L1: 37,8 mm

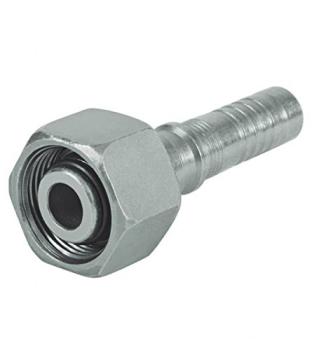

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
X: 20,8 mm

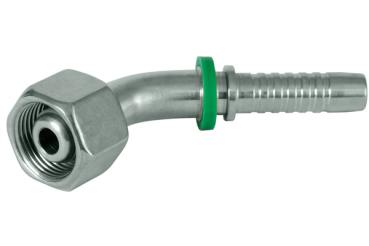

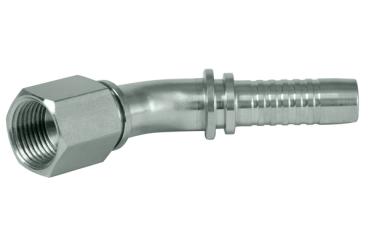

Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
X: 36,5 mm
L1: 66,0 mm

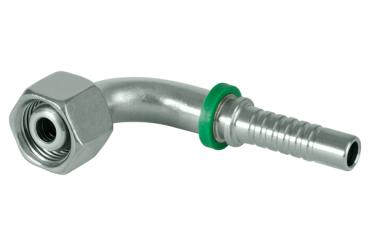

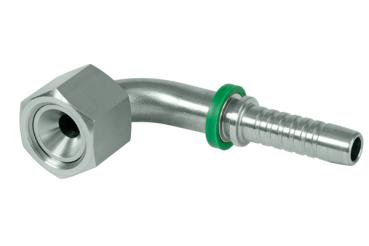

Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
X: 25,0 mm
L1: 55,0 mm

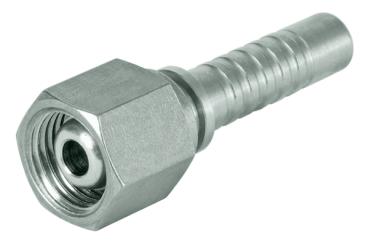

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
X: 25,8 mm
L1: 56,0 mm
Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
X: 33,5 mm
L1: 63,5 mm
Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
X: 39,5 mm
L1: 70,0 mm

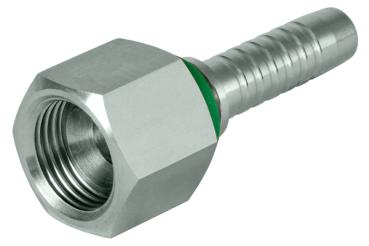

BSP sealing head, 60° cone union with BSP thread
L1: 42,4 mm
BSP sealing head 90°, 60° cone union with BSP thread
L1: 49,5 mm
BSP sealing head 45°, 60° cone union with BSP thread
L1: 64,5 mm
{{.}}
{{{.}}}
