Size 6 / CETOP3

Discover our NG06 series solenoid valves (CETOP 3), which enable precise control of flow and flow direction in high-performance hydraulics. Thanks to standardisation in
accordance with ISO 4401/CETOP 03, our directional control valves and check valves have a modular design, feature an intermediate plate construction and are
largely compatible with Bosch, Parker, Eaton and Argo Hytos. Learn more...

Filter
Design
Control type
Circuit diagram
Failed to retrieve the available filter values!

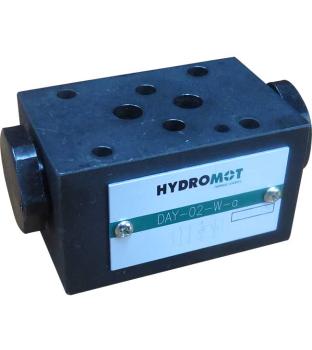

throttle check valve cetop 3 intermediate plate front
Pilot operated check valve in line A, sandwich valve, CETOP 3, 315Bar, 60l/min, 0,5 bar opening pressure
  • Pilot operated check valve in line A
  • Cetop 3
  • max. pressure: 315 bar
  • opening pressure: 0,5 bar
  • Qmax.: 60 l/min
  • Subplate system
Scheme Pilot operated check valve in line A, sandwich valve, CETOP 3, 315Bar
46,86 EUR
40,05 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
40,05 EUR excl. 17% tax
throttle check valve cetop 3 intermediate plate front
Pilot operated check valve in line A, sandwich valve, CETOP 3, 315Bar, 60l/min, 2,5 bar opening pressure
  • Pilot operated check valve in line A
  • Cetop 3
  • max. pressure: 315 bar
  • opening pressure: 2,5 bar
  • Qmax.: 60 l/min
  • Subplate system
46,86 EUR
40,05 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
40,05 EUR excl. 17% tax
throttle check valve cetop 3 intermediate plate front
Pilot operated check valve in line B, sandwich valve, CETOP 3, 315Bar, 60l/min, 0,5 bar opening pressure
  • Pilot operated check valve in line B
  • Cetop 3
  • max. pressure: 315 bar
  • opening pressure: 0,5 bar
  • Qmax.: 60 l/min
  • Subplate system

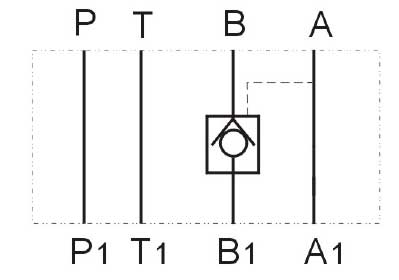

Scheme Pilot operated check valve in line B, sandwich valve, CETOP 3, 315Bar
46,86 EUR
40,05 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
40,05 EUR excl. 17% tax
throttle check valve cetop 3 intermediate plate front
Pilot operated check valve in line B, sandwich valve, CETOP 3, 315Bar, 60l/min, 2,5 bar opening pressure
  • Pilot operated check valve in line B
  • Cetop 3
  • max. pressure: 315 bar
  • opening pressure: 2,5 bar
  • Qmax.: 60 l/min
  • Subplate system
Scheme Pilot operated check valve in line B, sandwich valve, CETOP 3, 315Bar
46,86 EUR
40,05 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
40,05 EUR excl. 17% tax
throttle check valve cetop 3 intermediate plate front
Pilot operated check valve in line A and B, sandwich valve, CETOP 3, 315Bar, 60l/min, 0,5 bar opening pressure
  • Pilot operated check valve in line A and B
  • Cetop 3
  • max. pressure: 315 bar
  • opening pressure: 0,5 bar
  • Qmax.: 60 l/min
  • Subplate system
Scheme Pilot operated check valve in line A and B, sandwich valve, CETOP 3
46,86 EUR
40,05 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
40,05 EUR excl. 17% tax
solenoid valve 42 cetop 3 front 2B3B
Solenoid Valve, Cetop 3, 2B3B
  • 4/2-way solenoid valve
  • scheme: A-B-P-T connected (initial), P-B, A-T connected (switched)
  • direct controlled
  • for modular assembly
  • max. pressure: 315 bar
  • spool voltage: 12V DC, 24V DC or 230V AC
  • Qmax.: see diagram in our catalogue
Scheme Solenoid Valve, Cetop 3, 2B4B
52,40 EUR
44,79 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
44,79 EUR excl. 17% tax
solenoid valve 43 cetop 3 front 2B2L
Solenoid Valve, Hydraulic Valve, Cetop 3, 4/2 Way, 2B2L
  • 4/2-way solenoid valve, hydraulic valve
  • Qmax.: see diagram in our catalogue
  • locked in transition position

Scheme:
Scheme Solenoid Valve, Cetop 3, 4/2 Way, 2B2L
52,40 EUR
44,79 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
44,79 EUR excl. 17% tax
solenoid valve 42 cetop 3 front 2B4B
Solenoid Valve, Cetop 3, 2B4B
  • 4/2-way solenoid valve
  • scheme: A-B-T connected, P closed (initial), P-B / A-T connected (switched)
  • direct controlled
  • for modular assembly
  • max. pressure: 315 bar
  • spool voltage: 12V DC, 24V DC or 230V AC
  • Qmax.: see diagram in our catalogue

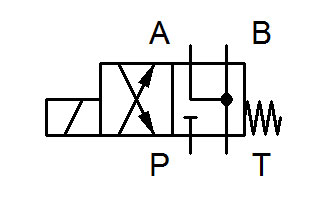

Scheme Solenoid Valve, Cetop 3, 2B4B
52,40 EUR
44,79 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
44,79 EUR excl. 17% tax
solenoid valve 42 cetop 3 front 2B6B
Solenoid Valve, Cetop 3, 2B60B
  • 4/2-way solenoid valve
  • scheme: A-B closed, P-T connected (initial), P-A / B-T connected (switched)
  • direct controlled
  • for modular assembly
  • max. pressure: 315 bar
  • spool voltage: 12V DC, 24V DC or 230V AC
  • Qmax.: see diagram in our catalogue
52,40 EUR
44,79 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
44,79 EUR excl. 17% tax
Solenoid valve (directional control valve), NG06, 2B3BL
Solenoid Valve, Cetop 3, 2B3BL
  • 4/2-way solenoid valve
  • scheme: A-B-P-T connected (initial), P-A, B-T connected (switched)
  • direct controlled
  • for modular assembly
  • max. pressure: 315 bar
  • spool voltage: 12V DC, 24V DC or 230V AC
  • Qmax.: see diagram in our catalogue
Scheme Solenoid Valve, Cetop 3, 2B3BL
52,40 EUR
44,79 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
44,79 EUR excl. 17% tax
solenoid valve 42 cetop 3 front 2B6BL
Solenoid Valve, Cetop 3, 2B60BL
  • 4/2-way solenoid valve
  • scheme: A-B closed, P-T connected (initial), P-B, A-T connected (switched)
  • direct controlled
  • for modular assembly
  • max. pressure: 315 bar
  • spool voltage: 12V DC, 24V DC or 230V AC
  • Qmax.: see diagram in our catalogue

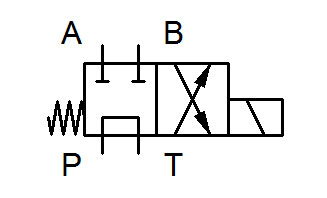

Scheme Solenoid Valve, Cetop 3, 2B60BL
52,40 EUR
44,79 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
44,79 EUR excl. 17% tax
solenoid valve 43 cetop 3 front 2B2
Solenoid Valve, Cetop 3, 4/2 Way, 2D2
  • 4/2-way solenoid valve
  • Qmax.: see diagram in our catalogue
  • locked in transition position

Scheme:
Scheme Solenoid Valve, Cetop 3, 4/2 Way, 2D2
52,40 EUR
44,79 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
44,79 EUR excl. 17% tax
solenoid valve 43 cetop 3 front 2B2
Solenoid Valve, Cetop 3, 4/2-Way, 2B2
  • 4/2-way solenoid valve
  • Qmax.: see diagram in our catalogue
  • locked in transition position

Scheme:
Scheme Solenoid Valve, Cetop 3, 4/2-Way, 2B2
52,41 EUR
44,79 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
44,79 EUR excl. 17% tax
throttle check valve cetop 3 intermediate plate front
Pilot operated check valve in line A and B, sandwich valve, CETOP 3, 315Bar, 60l/min, 2,5 bar opening pressure
  • Pilot operated check valve in line An and B
  • Cetop 3
  • max. pressure: 315 bar
  • opening pressure: 2,5 bar
  • Qmax.: 60 l/min
  • Subplate system
Schaltbild Pilot operated check valve in line A and B, sandwich valve, CETOP 3
52,60 EUR
44,96 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
44,96 EUR excl. 17% tax
throttle check valve cetop 3 intermediate plate front
Throttle Check Valve, Cetop 3, adjustable
  • Adjustable throttle check valve
  • Cetop 3
  • max. pressure: 315 bar
  • opening pressure: 0,5 bar
  • Qmax.: 40 l/min
  • Intermediate plate layout
Scheme Throttle Check Valve, Cetop 3, adjustable
53,82 EUR
46,00 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
46,00 EUR excl. 17% tax
solenoid valve 42 cetop 3 front 2B2BL
Solenoid Valve, Cetop 3, 2B2BL
  • 4/2-way solenoid valve
  • scheme: A-B-P-T closed (initial), P-A, B-T connected (switched)
  • direct controlled
  • for modular assembly
  • max. pressure: 315 bar
  • spool voltage: 12V DC, 24V DC or 230V AC
  • Qmax.: see diagram in our catalogue
Scheme Solenoid Valve, Cetop 3, 2B2BL
56,07 EUR
47,92 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
47,92 EUR excl. 17% tax
1 to 16 (from a total of 25)





Our robust valves are suitable for machine tools, agricultural machinery, presses, and conveyor systems, and depending on the version, operate at a pressure of up to 315 bar. Choose from direct-operated 4/2-way valves, pilot-operated check valves, and throttle check valves with various circuit symbols and control voltages: 12 V DC, 24 V DC, or 230 V AC.


Frequently Asked Questions (FAQ): Solenoid Valves NG06 / CETOP 3

What are NG06 / CETOP 3 solenoid valves and where are they used?

Solenoid valves of size NG06 (CETOP 3) are electromagnetic directional control valves. They serve as key components in hydraulics for controlling the flow direction and flow rate of hydraulic oil. Typical applications include mobile hydraulics, machine tools, agricultural machinery, presses, and conveyor systems.

Are these solenoid valves compatible with components from other manufacturers?

Yes. Due to standardization, the valves are largely interchangeable with products from other manufacturers (e.g., Bosch, Parker, Eaton, Argo Hytos). The basis for this is the standardized mounting pattern according to ISO 4401 / CETOP 03.

What are the maximum technical specifications for NG06 valves?

Typical limits:

  • Max. operating pressure: typically 315 bar, up to 350 bar possible
  • Max. flow rate (pilot-operated check valves): 60 l/min
  • Max. flow rate (throttle check valves): 40 l/min

What types of NG06 valves are available in the shop?

Available types:

  • Direct-operated 4/2-way valves (solenoid valves) with various circuit diagrams (e.g., 2B3B, 2B60B)
  • Pilot-operated check valves
  • Adjustable throttle check valves

All valves are designed in sandwich plate construction.

What electrical voltages are required for the solenoid directional valves?

The directional valves can be operated with 12 V DC, 24 V DC, or 230 V AC.

How are these valves installed and maintained?

Installation is carried out using standardized mounting plates (ISO 4401 / CETOP 3). The coils are replaceable and can often be changed without tools or while the valve remains installed to minimize downtime.

To extend service life, it is recommended to perform regular checks of oil cleanliness.
