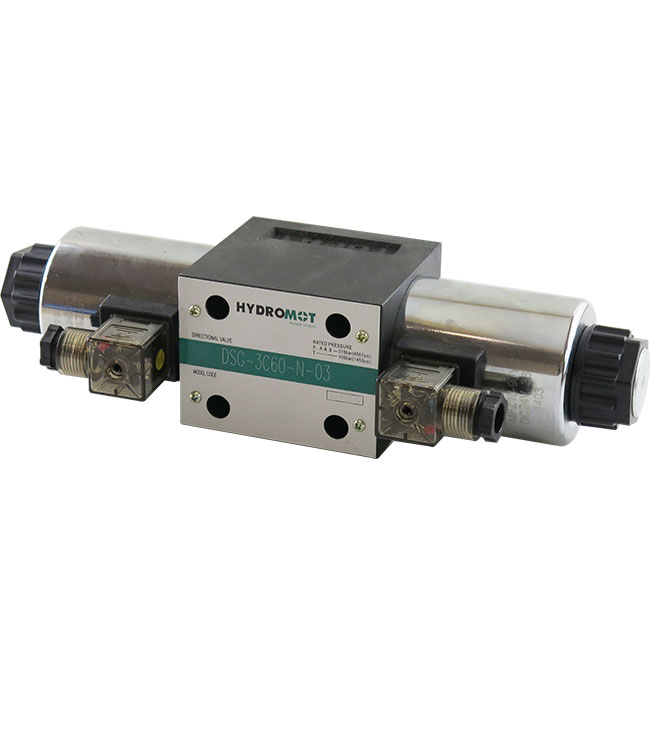

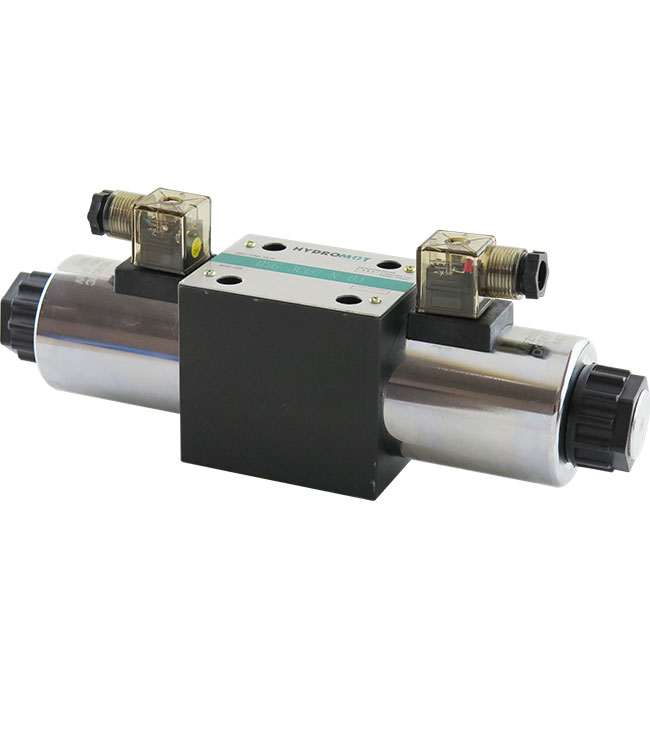

Solenoid Valve, NG06, 3C4, P closed, A-B-T connected

Solenoid Valve, Cetop 3, 3C4

This solenoid valve is characterised by ist high quality and ist reasonable price..

This products features are as follows:

• 4/3-way solenoid valve
• direct controlled
• for modular assembly
• max. pressure: 315 bar
• spool voltage: 12V DC, 24V DC or 230V AC
• Qmax.: see diagram in our catalogue

Scheme:
P closed
A-B-T connected

Technical data:

Type		CETOP05 (NG10)
Working pressure (bar)	Ports A,B,P	315
Working pressure (bar)	Port T	100
Max oil flow (l/min)		120
Fluid tempreture (°C)		-20 bis 70
Viscosity (mm2/s)		-2.8 bis 100
Voltages	DC AC	12V     24V 110V/50Hz       220V/Hz
Max switching frequency (1/h)	DC AC	15000 7200
Isolation degree		IP65
Weight (Kg)		DC	AC
Single solenoid		5.1	4.3
Double solenoid		6.7	5.1

Dimensions:

Hydraulic component for integration in hydraulic systems
