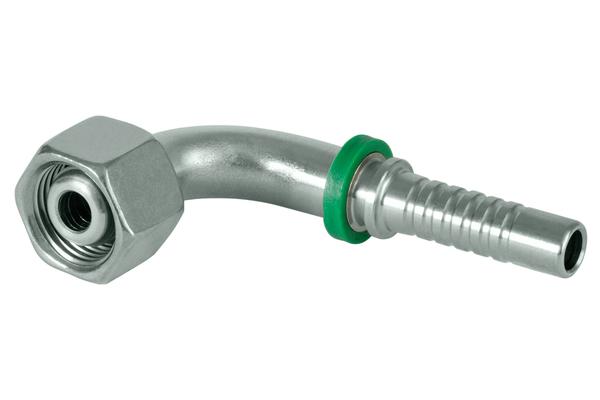

DKOL90° - DN16 - 15L - M22x1,5

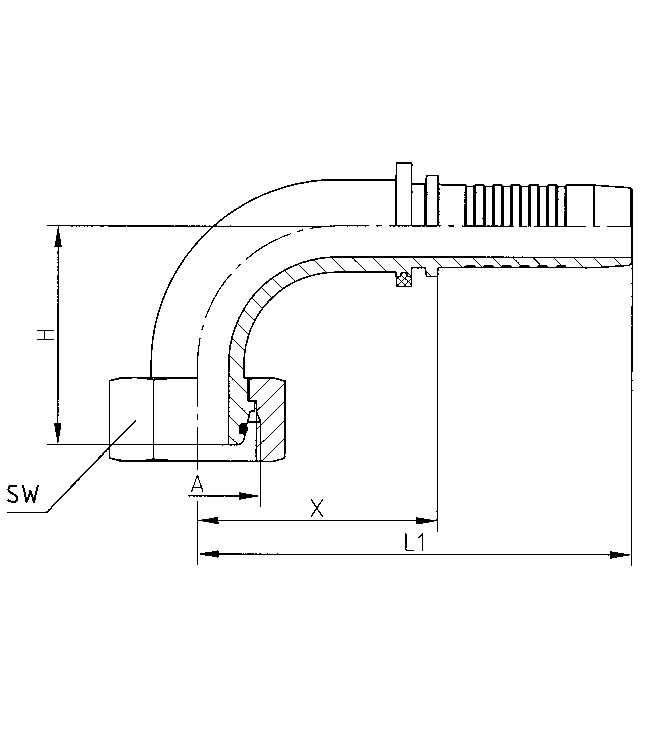

• Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series

• A: M22x1,5

• R: 15L

• X: 46,5 mm

• L1: 85,0 mm

• SW: 27

• DN16 / Size 10 / 5/8"

Hydraulic component for integration in hydraulic systems
