Gear Box Hollow Shaft with Snap Ring/ triple Gear Pump 22.5+11.3+3.2 ccm

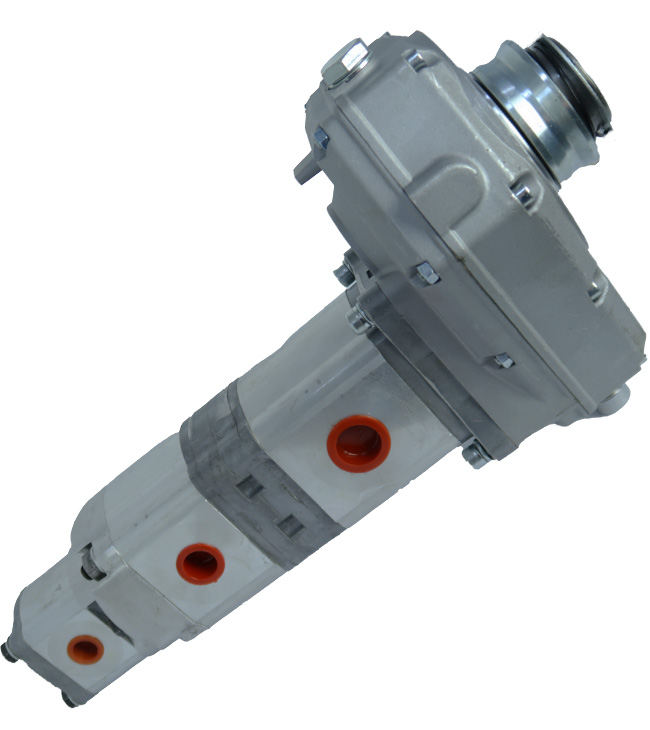

PTO gearbox with gear pump triple, 22.5+11.3+3.2 cc.

This PTO gearbox is equipped with a triple hydraulic pump (gear pump).

The following features distinguish this product:

Transmission with PTO

    Hollow P.T.O. shaft 1 3/8'' with snap ring
    Gear ratio: 1:3,8
    Size: Assembly 2

Mounted hydraulic pump (gear pump) with the following parameters

    con. Shaft 1:8,
    direction of rotation right

Output gear/pump unit:

HM221-(22,5+11,3+3)-3311/11/89-C

Stage 1 -- 22,5cc = 350U/min = 29,9L/min, 540U/min = 46,1L/min (connections: suction side 1", discharge side 3/4")
Stage 2 -- 11,3cc = 350rpm = 15L/min, 540rpm = 23,1L/min (connections: suction 3/4", discharge 1/2")
Stage 3 -- 03,2cc = 350rpm = 4,2L/min , 540rpm = 6,5L/min (connections: suction side 1/2", discharge side 3/8")


Hydraulic component for integration in hydraulic systems
