Hydraulic Gear Pump, Group 2, DIN-Flange (Type 4), Conical Shaft 1:5 (type D), Selectable Displacement 4 to 27.9 ccm/REV, rotation left

Hydraulic Gear Pump, Group 2, DIN-Flange (type 4), Conical Shaft 1:5 (type D),  Selectable Displacement 4 to 27.9 ccm/REV, rotation left

This pump is characterised by its high quality and reasonable price.

Its features are as follows:

• group 2
• selectable displacement from 4 to 27.9 ccm/REV
• DIN flange (60 mm x 60 mm)
• centering: 50 mm
• conical shaft 1:5
• drill holes 2 x Ø 11 mm
• side ports: DIN version
• rotation direction: left

Elbow flanges:

Size	Inlet ports	Outlet ports
4ccm - 26ccm	LK40-34-BO	LK35-12-BO

Technical data:


Displacement	Dimensions								Technical data
	A1	B1	Inlet ports			Outlet ports			Max.pressure	Speed
cm3	mm	mm	E (mm)	F (mm)	d (mm)	E (mm)	F (mm)	d (mm)	bar	tr/min
4	40.5	89	Ø40	Ø20	M6	Ø35	Ø15	M6	250	700...3500
5	41.3	90.5	Ø40	Ø20	M6	Ø35	Ø15	M6	250	700...3500
6	42	92	Ø40	Ø20	M6	Ø35	Ø15	M6	250	700...3500
9	44	96	Ø40	Ø20	M6	Ø35	Ø15	M6	250	700...3500
10	45	98	Ø40	Ø20	M6	Ø35	Ø15	M6	250	700...3500
11	46	100	Ø40	Ø20	M6	Ø35	Ø15	M6	250	700...3500
12	47	102	Ø40	Ø20	M6	Ø35	Ø15	M6	250	700...3500
14	49	106	Ø40	Ø20	M6	Ø35	Ø15	M6	250	700...3500
15	50	107.5	Ø40	Ø20	M6	Ø35	Ø15	M6	250	700...3000
16	50.5	109	Ø40	Ø20	M6	Ø35	Ø15	M6	250	700..3000
17	51	110	Ø40	Ø20	M6	Ø35	Ø15	M6	250	700...3000
19	53	114	Ø40	Ø20	M6	Ø35	Ø15	M6	200	700...2500
22	56	120	Ø40	Ø20	M6	Ø35	Ø15	M6	200	700...2500
25	58	123.5	Ø40	Ø20	M6	Ø35	Ø15	M6	160	700...2000
26	58.5	125	Ø40	Ø20	M6	Ø35	Ø15	M6	160	700...2000

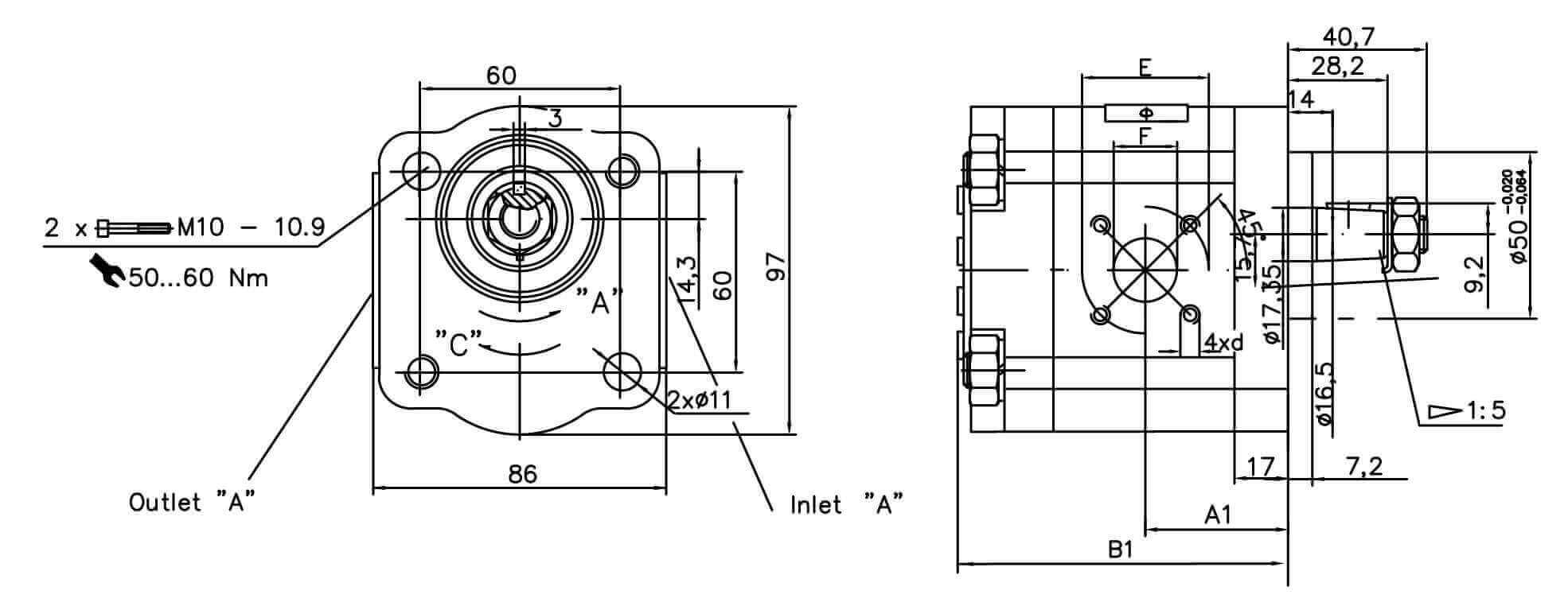

Pump dimensions:




Download catalogue:

Hydraulic component for integration in hydraulic systems
