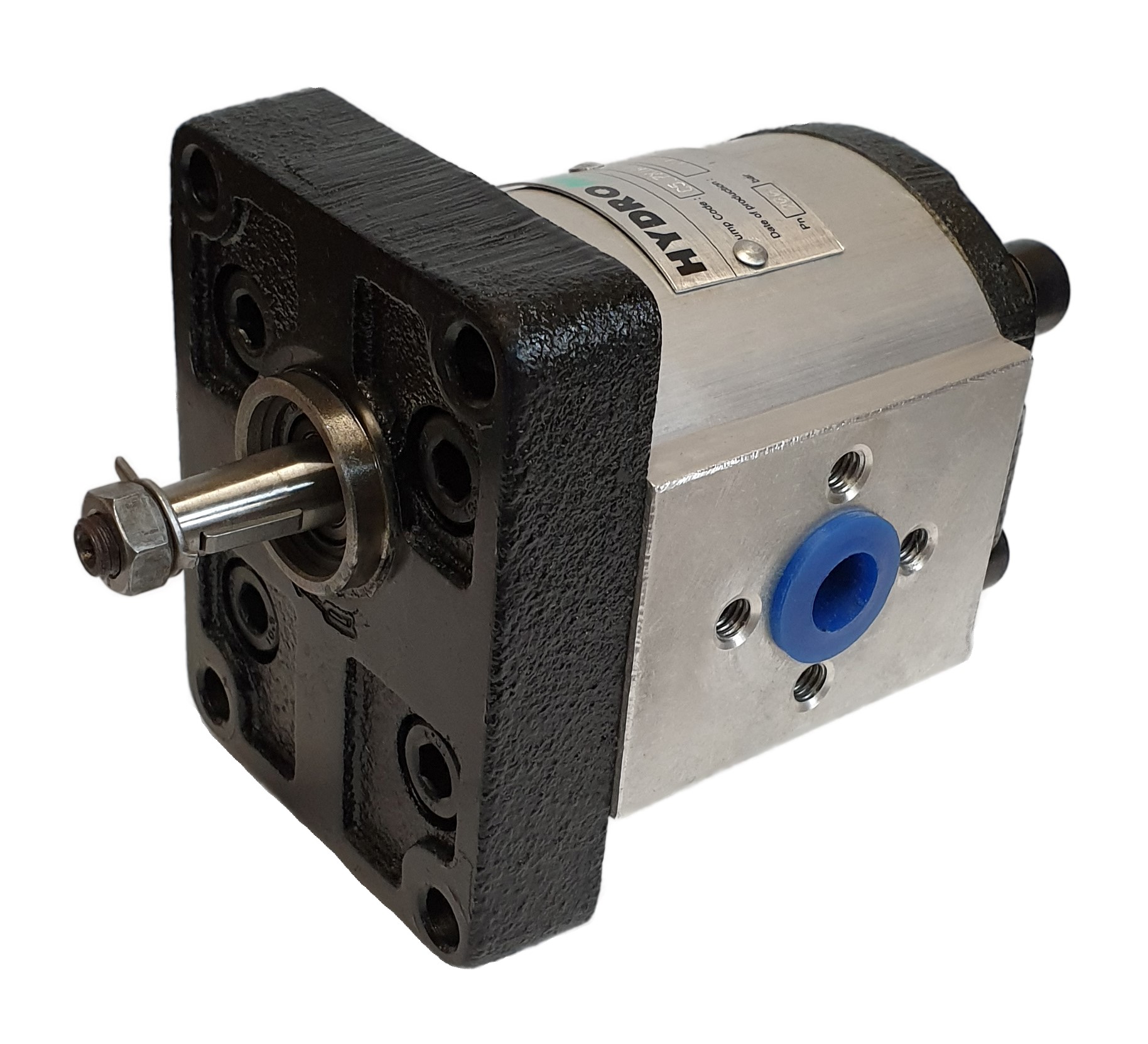

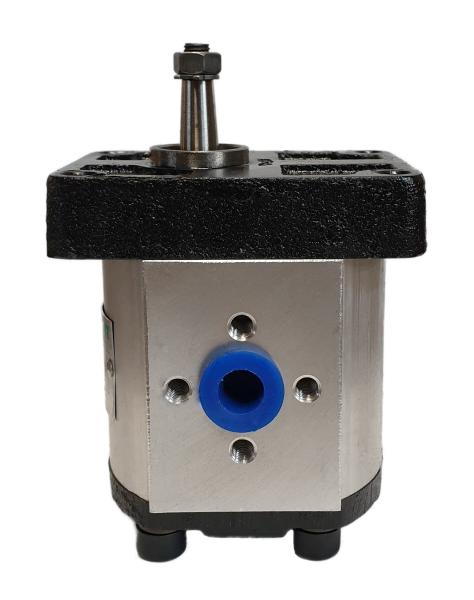

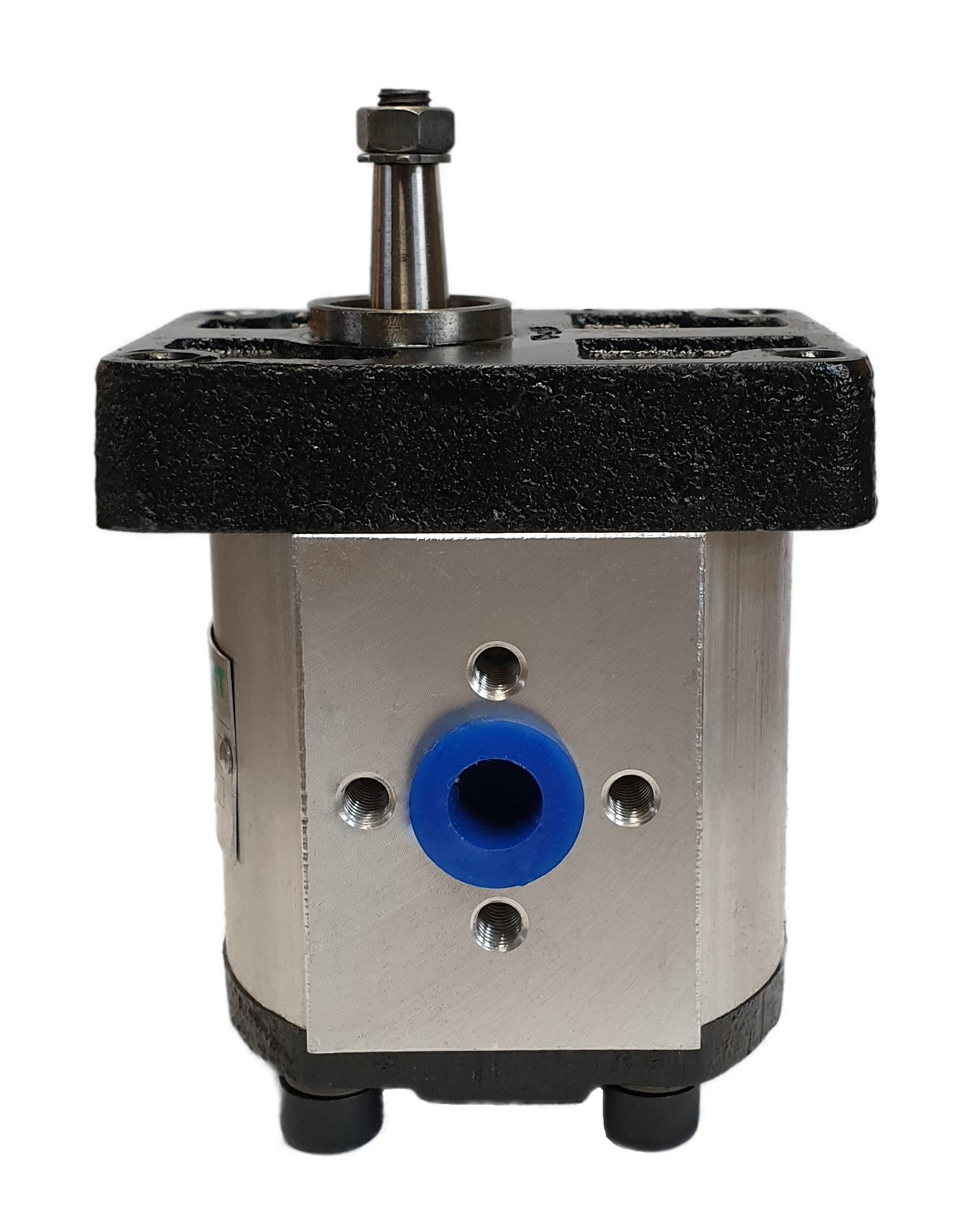

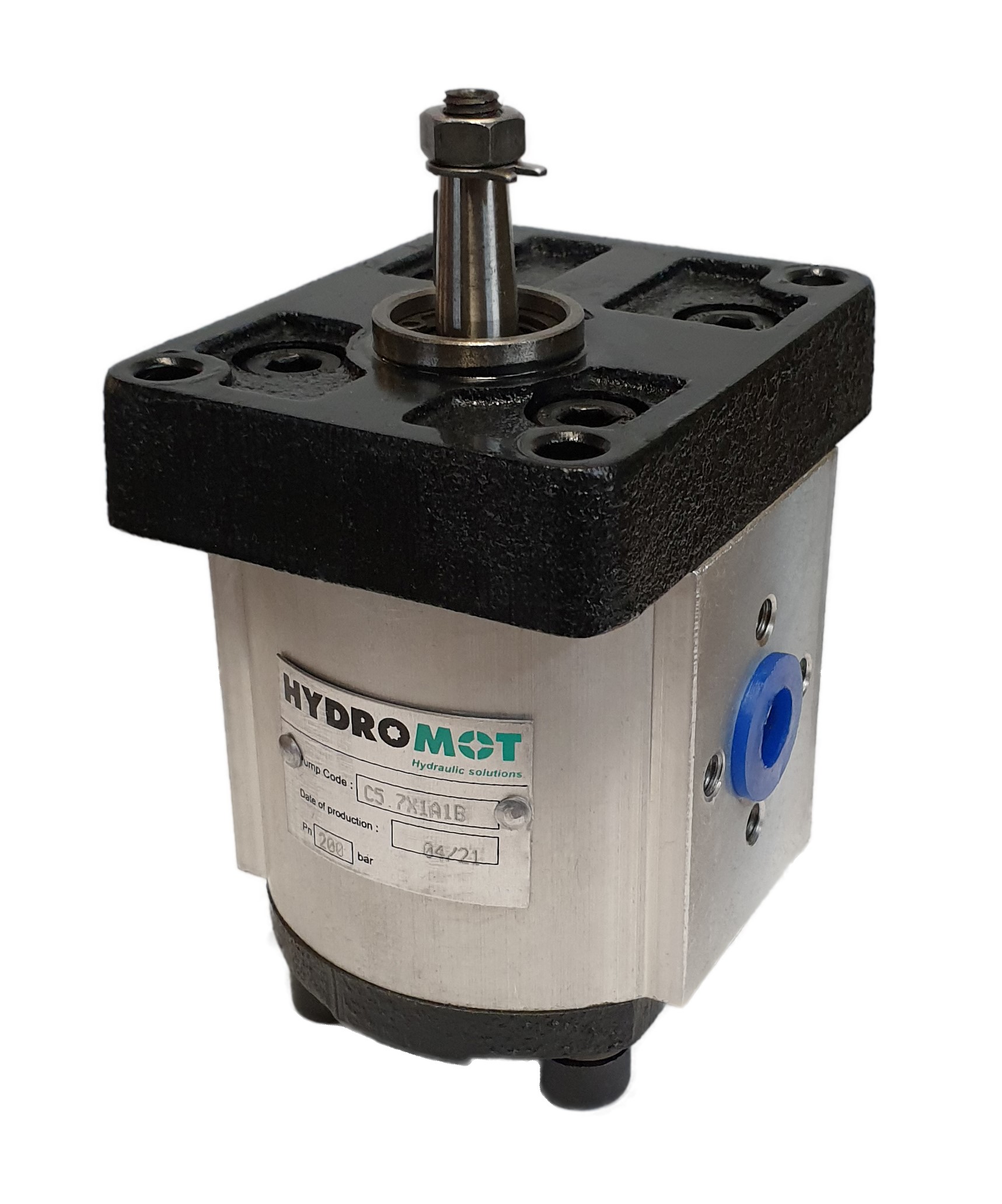

Hydraulic Gear Pump, Group 1, Europ. flange, side ports type 2, conical shaft 1:8, Selectable displacement 1 ccm/REV up to 7,8 ccm/REV

Hydraulic Gear Pump, Group 1, Europ. flange, conical shaft 1:8, Selectable displacement 1 ccm/REV up to 7,8 ccm/REV

This pump is characterised by its high quality and reasonable price.

Its features are as follows:

• group 1
• selectable displacement 1 ccm/REV up to 7,8 ccm/REV
• shaft: conical 1:8
• centering Ø 25,4mm
• inlet / outlet port: flange type 2’
• Plessey flange
• rotation direction: right

Elbow flanges:

Size	Inlet ports	Outlet ports
1ccm - 7.9ccm	LK31-1/2"	LK31-1/2"

Technical data:


Dispalcement	Dimensions								Technical data
	A	B	Inlet ports			Outlet ports			Max.pressure	Speed
cm3	mm	mm	E (mm)	F (mm)	d (mm)	E (mm)	F (mm)	d (mm)	bar	tr/min
1	39.5	82.3	Ø30	Ø12	M6	Ø30	Ø12	M6	250	700...3500
1.25	39.9	83	Ø30	Ø12	M6	Ø30	Ø12	M6	250	700...3500
1.8	40.7	84.7	Ø30	Ø12	M6	Ø30	Ø12	M6	250	700...3500
2	41.1	85.5	Ø30	Ø12	M6	Ø30	Ø12	M6	250	700...3500
2.5	42.1	87.5	Ø30	Ø12	M6	Ø30	Ø12	M6	250	700...3500
3.15	43.4	90.4	Ø30	Ø12	M6	Ø30	Ø12	M6	250	700...3500
3.65	44.4	92.4	Ø30	Ø12	M6	Ø30	Ø12	M6	250	700...3500
4.2	45.5	94.5	Ø30	Ø12	M6	Ø30	Ø12	M6	250	700...3000
5.1	47.1	97.5	Ø30	Ø12	M6	Ø30	Ø12	M6	250	700...3000
5.7	48.5	100.5	Ø30	Ø12	M6	Ø30	Ø12	M6	200	700...2500
6.1	49.4	102.2	Ø30	Ø12	M6	Ø30	Ø12	M6	200	700...2500
7	51.2	106	Ø30	Ø12	M6	Ø30	Ø12	M6	180	700...2000
7.9	52.6	109	Ø30	Ø12	M6	Ø30	Ø12	M6	170	700...2000

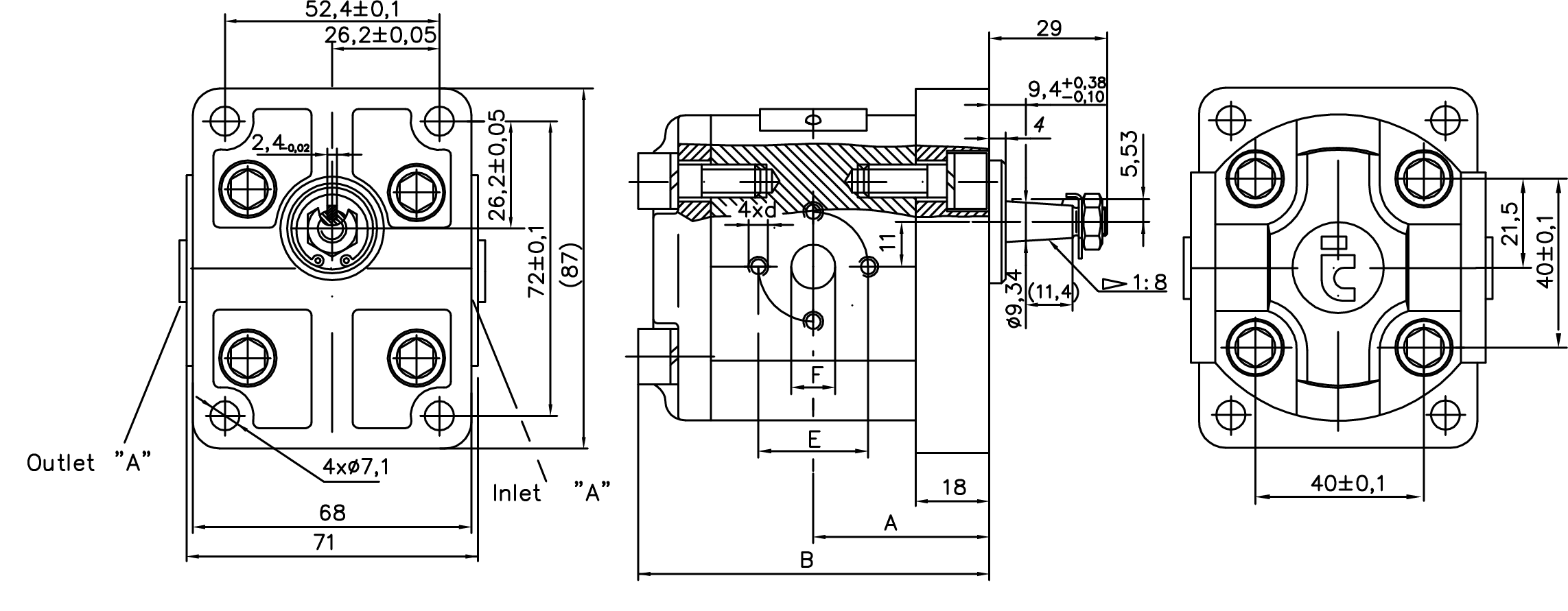

Pump dimensions:





Download catalogue:



Hydraulic component for integration in hydraulic systems
