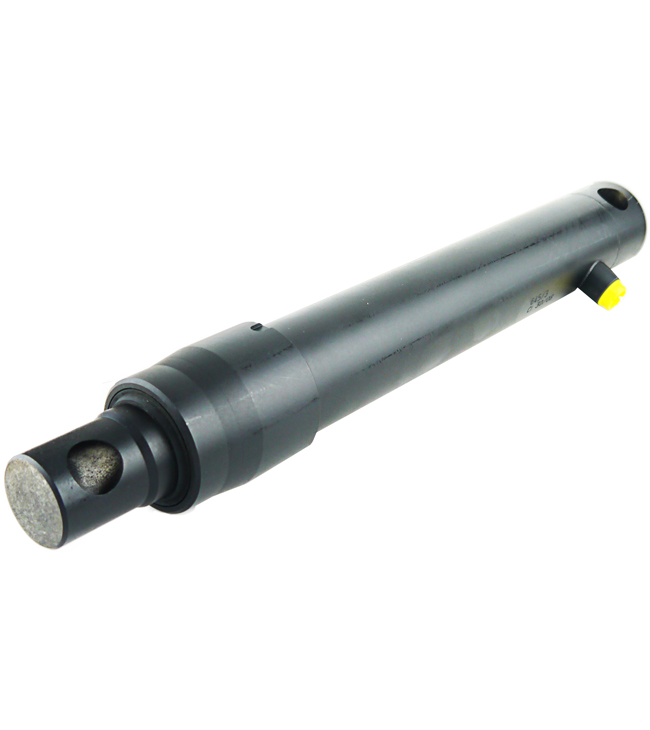

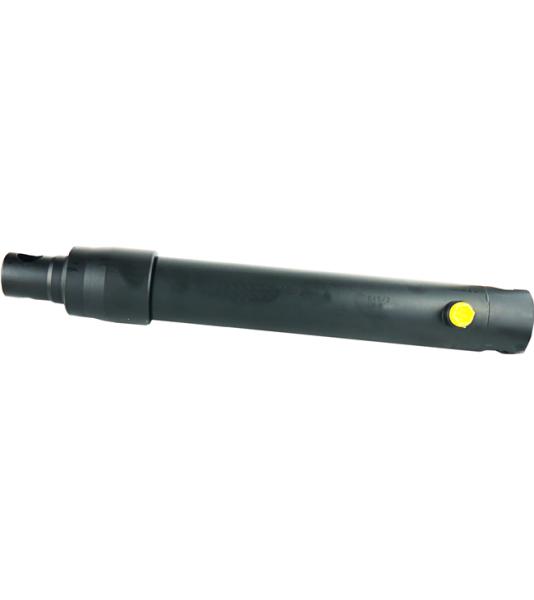

Hydraulic Cylinder, Single Acting, Piston Ø 60 mm, selectable stroke

Cylinder for hydraulic applications, single acting, piston Ø60 mm, selectable stroke

This cylinder is characterised by its high quality and  reasonable price.

Its features are as follows:

• single acting, up to 5,6 t of compression power
• Ø piston: 60 mm
• selectable stroke 200 - 700 mm
• max. pressure: 200 bar
• max. pass speed: 0,5 m/s

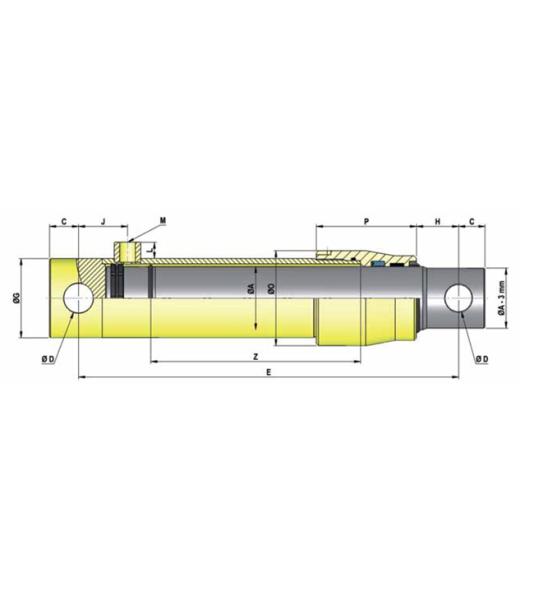

Dimensions:





ØA	STROKE	E	C	D	G	H	J	O	P	L	M (BSP)	WEIGHT [kg]
60	200	360	25	25,25	75	36	50	90	95	15	3/8"	12,6
60	300	460	25	25,25	75	36	50	90	95	15	3/8"	15,7
60	400	560	25	25,25	75	36	50	90	95	15	3/8"	18,7
60	550	710	25	25,25	75	36	50	90	95	15	3/8"	23,3
60	700	860	25	25,25	75	36	50	90	95	15	3/8"	28,4

Hydraulic component for integration in hydraulic systems

All our hydraulic products are new, unused and in OEM quality (except when explicitly declared otherwise). Should a particular item not be in stock or not be represented here, please don’t hesitate to contact us. We will immediately try to find an appropriate solution pertaining to your given specifications. Moreover, we are constantly expanding our product range to offer you a wide variety of hydraulic components at reasonable prices. Hydromot hydraulics – always an excellent choice at low prices!
