Hydraulic Motor CPMT200K
SOLD OUT

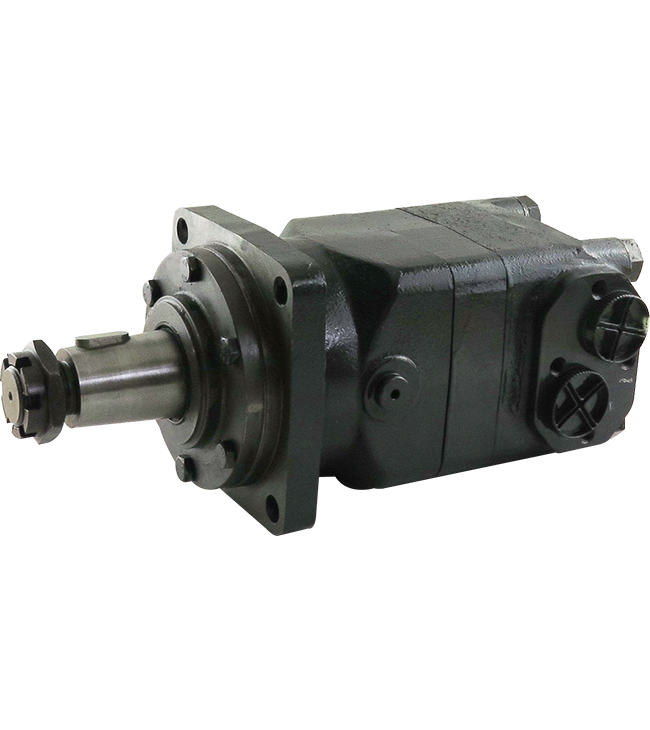

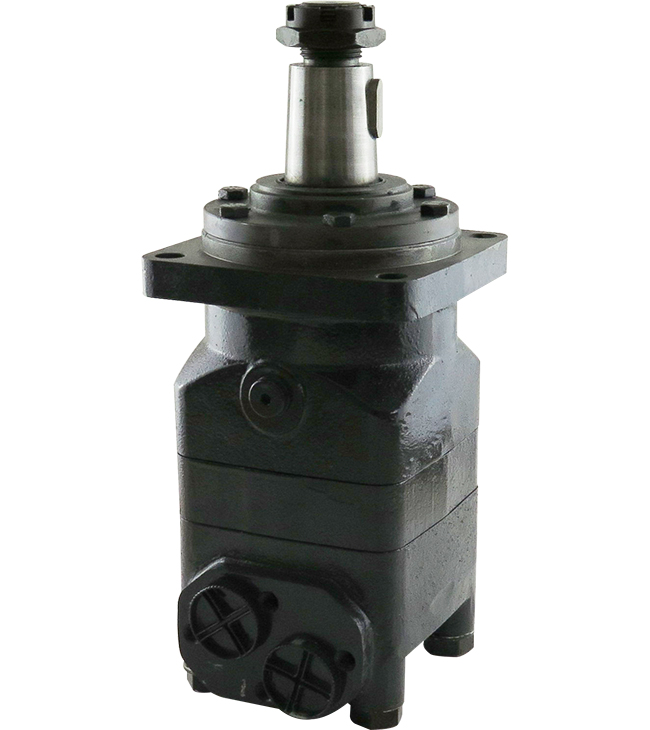

Motor (Hydraulic) CPMT200K
This motor is characterised by its high quality and its reasonable price.This product’s features are as follows:
- hydraulic motor CPMT200K
- displacement: 200 ccm/REV
- ports: G 3/4’’
- shaft: conical 1:10 with key B12 x 8 x 28
- 4-hole square flange
- disc valve type
- internal check valve
- usage without drain line possible
- OEM quality
- optimized for small spaces
- Danfoss, 151B0211, OMT 200 M. KEGL.WELLE
- Danfoss, 151B3013, OMT 200
- Hydrauliknord, 650-K403, GMT 200
Technical data:
| Type | CPMT160 | CPMT200 | CPMT250 | CPMT315 | CPMT400 | CPMT500 | CPMT630 | CPMT800 |
| Displacement [ccm/REV] | 161.1 | 201.4 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 |
| max. Speed [RPM] | 625 | 625 | 500 | 380 | 305 | 240 | 196 | 154 |
| max. Torque [daNm] | 47 | 59 | 73 | 95 | 108 | 122 | 131.8 | 146.4 |
| max. Power [kW] | 27.7 | 34.9 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| max. Pressure drop [bar] | 200 | 200 | 200 | 200 | 180 | 160 | 140 | 125 |
| max. Oil flow [l/min] | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| max. Input pressure [bar] | 210 | 210 | 210 | 210 |
