Hydraulic Motor Minimotor CPMMS40SH
SOLD OUT

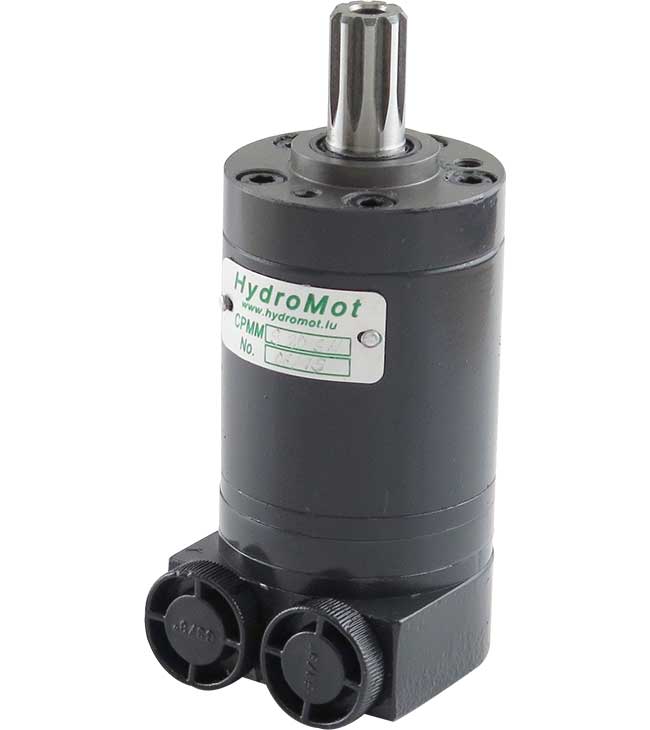

Motor (Hydraulic) CPMMS40SH
This motor is characterised by its high quality and its reasonable price.This product’s features are as follows:
- hydraulic motor CPMMS40SH
- displacement: 40 ccm/REV
- side ports: G 3/8’’
- shaft: Ø 16.5 mm splined B17 x 14
- spool valve type
- internal check valve
- usage without drain line possible
- OEM quality
- optimized for small spaces
Technical data:
| Type | CPMM8 | CPMM12.5 | CPMM20 | CPMM32 | CPMM40 | CPMM50 |
| Displacement [ccm/REV] | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 |
| max. Speed [REV/min] | 1950 | 1550 | 1000 | 630 | 500 | 400 |
| max. Torque [daNm] | 1.1 | 1.6 | 2.5 | 4 | 4.5 | 4.6 |
| max. Power [kW] | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 |
| max. Pressure drop [bar] | 100 | 100 | 100 | 100 | 90 | 70 |
| max. Oil flow [l/min] | 16 | 20 | 20 | 20 | 20 | 20 |
| max. Input pressure [bar] | 175 | 175 | 175 | 175 | 175 | 175 |

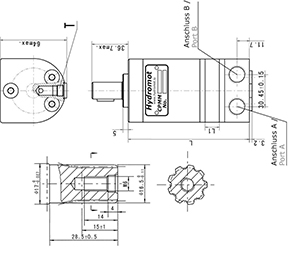

CPMM available flange and shaft versions:
| Code | Port type | | Code | Shaft version |
| Omit | Rear port 3/8 inch | | C | Ø16 mm cylindrical with key 5 x 5 x 16 |
| S | Side port 3/8 inch | | CO | Ø15.8 mm (5/8 inch) cylindrical with key |
| | | | SH | Ø16.5 mm splined B17 x 14 |
Catalogue download:
