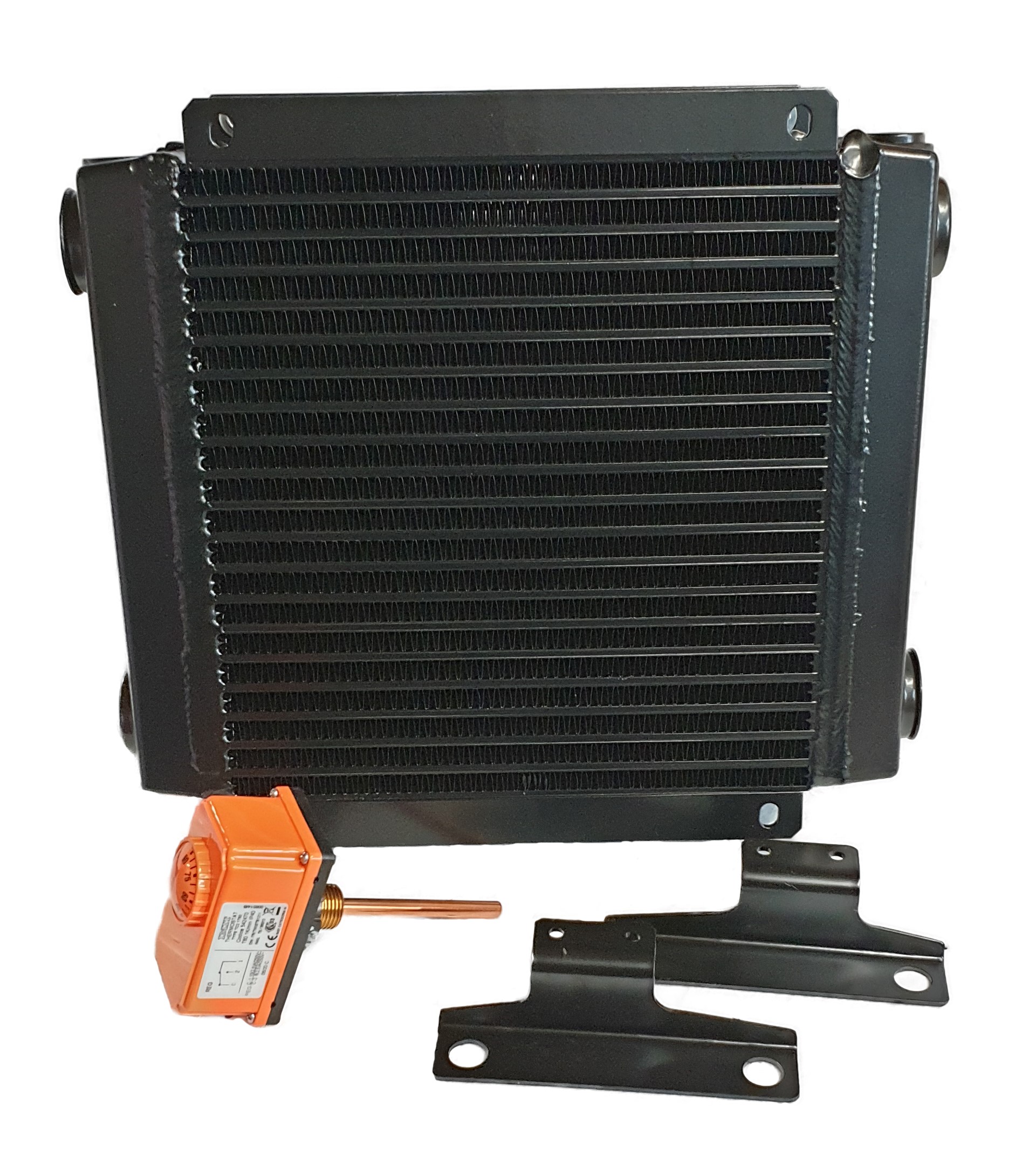

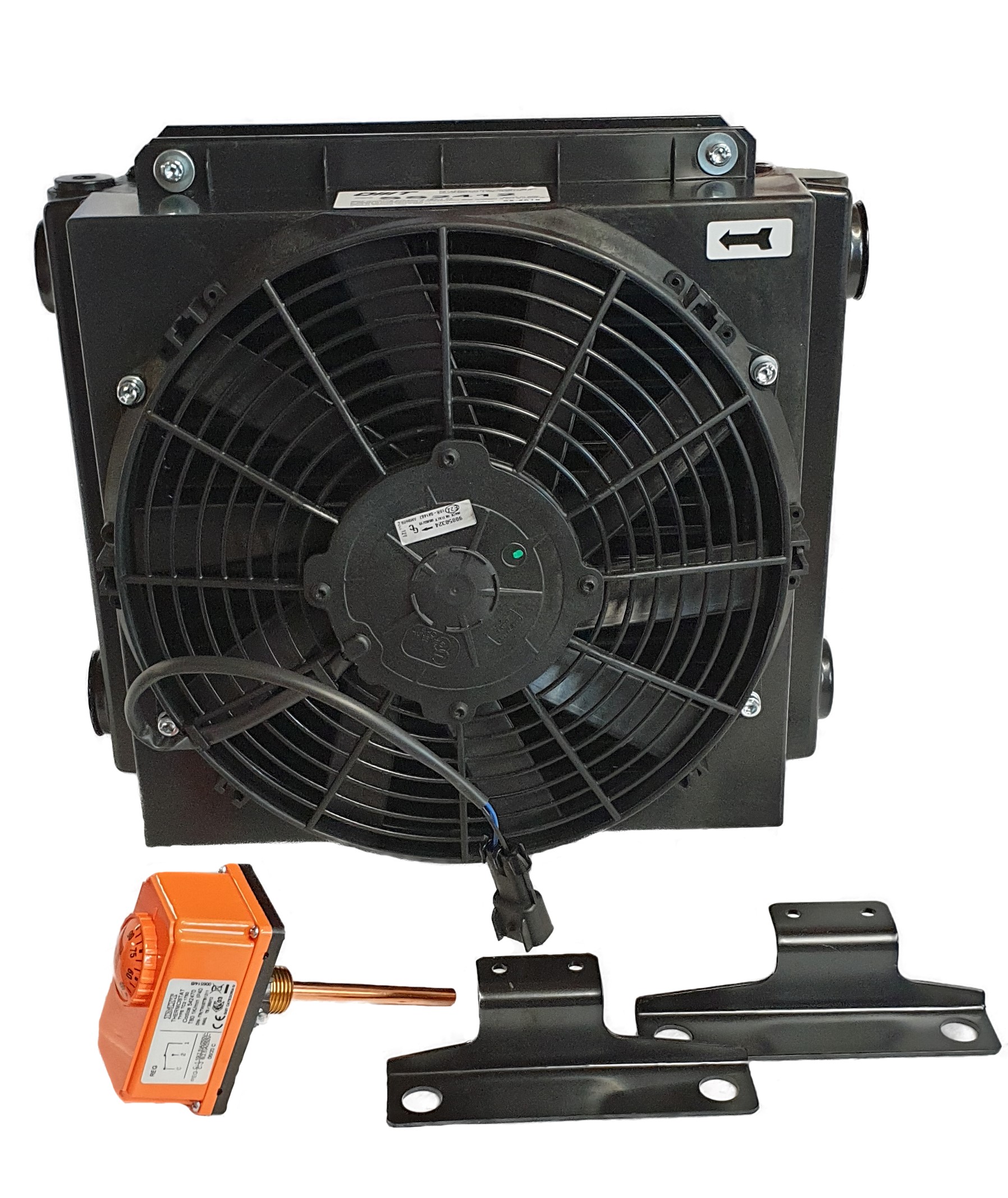

Hydraulic oil cooler, Air oil cooler, 24 Volt, Type 4020

Hydraulic cooler, Air oil cooler, 24 Volt, Type 4020

This products features are as follows:

• Cooling capacity 3000 kcal/h at ∆T=20°C, 4500 kcal/h at ∆T=30°C
• Max. oil flow 100 l/min
• Max. working pressure: 24 bar, testing pressure 36 bar
• Max. working temperature: 120 °C
• Connection ports: 1" BSP
• Elektrical fan drive with 24 Volt
• Delivery with adjustable thermostat (Type IMIT TC2)

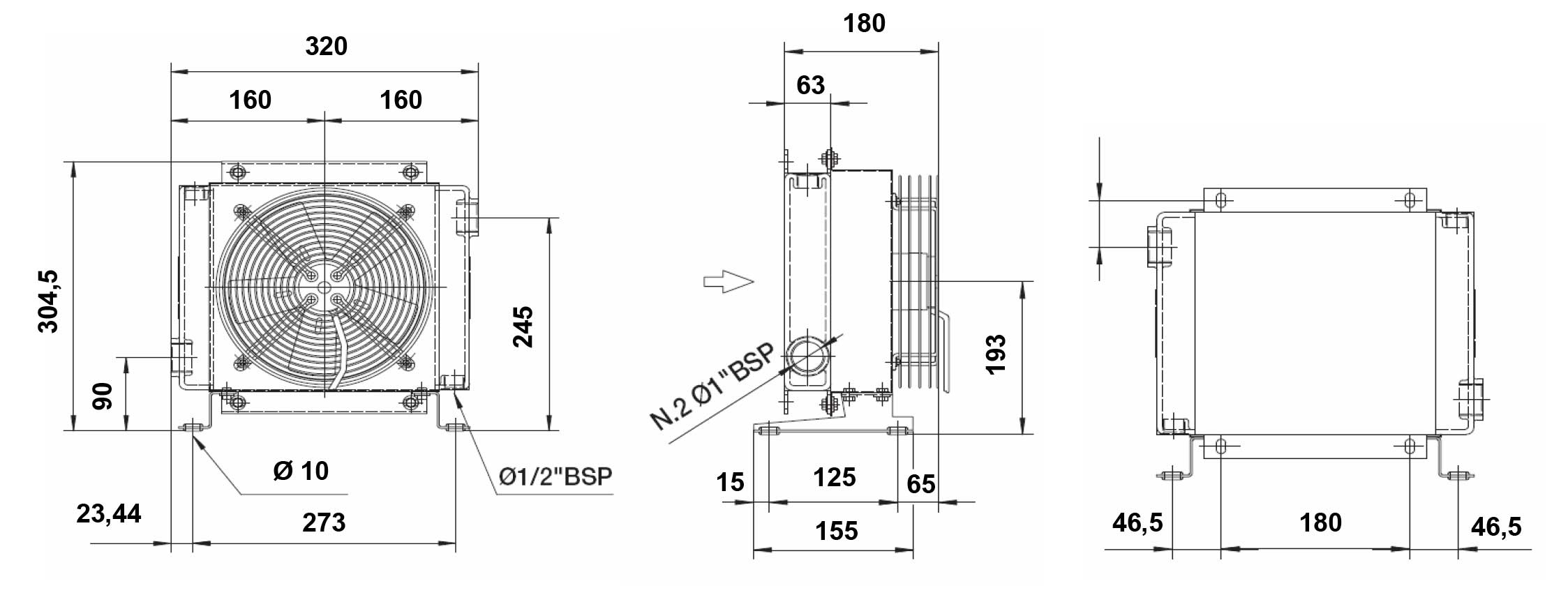

Dimensions:



Hydraulic component for integration in hydraulic systems
