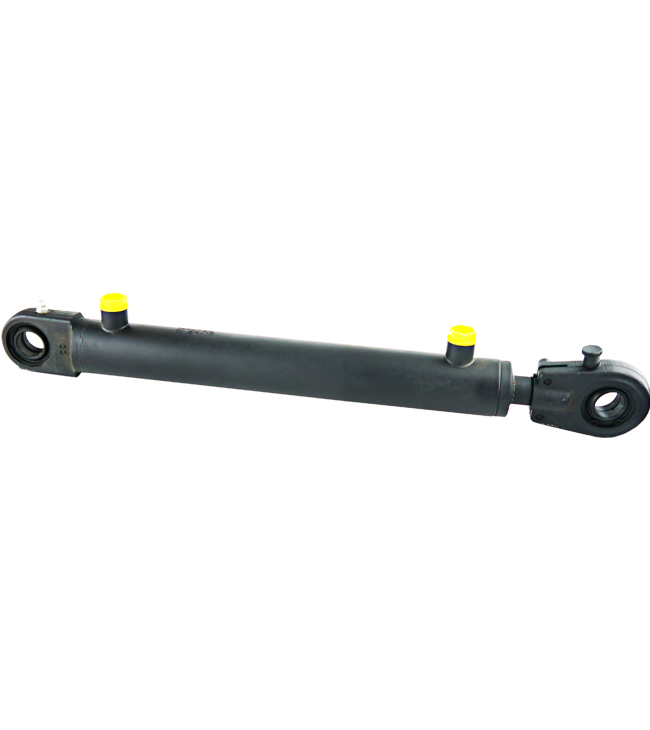

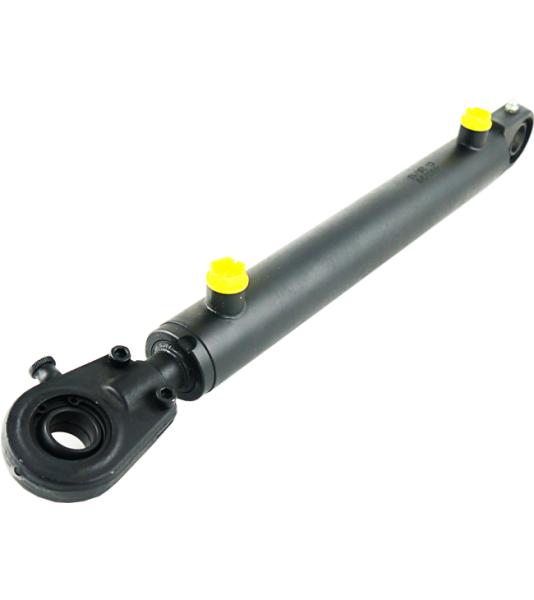

Hydraulic Cylinder, Double Acting, Ball joint, Piston Ø 50mm, Rod Ø 30mm, Selectable stroke

Hydraulic Cylinder, Double Acting, Ball joint, Piston Ø 50mm, Rod Ø 30mm, Selectable stroke

This cylinder is characterised by its high quality and  reasonable price.

Its features are as follows:

• double acting cylinder with hinge
• Maximum compression power: 4 tons
• Ø piston: 50mm
• Ø piston rod: 30mm
• selectable stroke from 100mm up to 800 mm
• max. pressure: 200 bar
• max. pass speed: 0,5 m/s

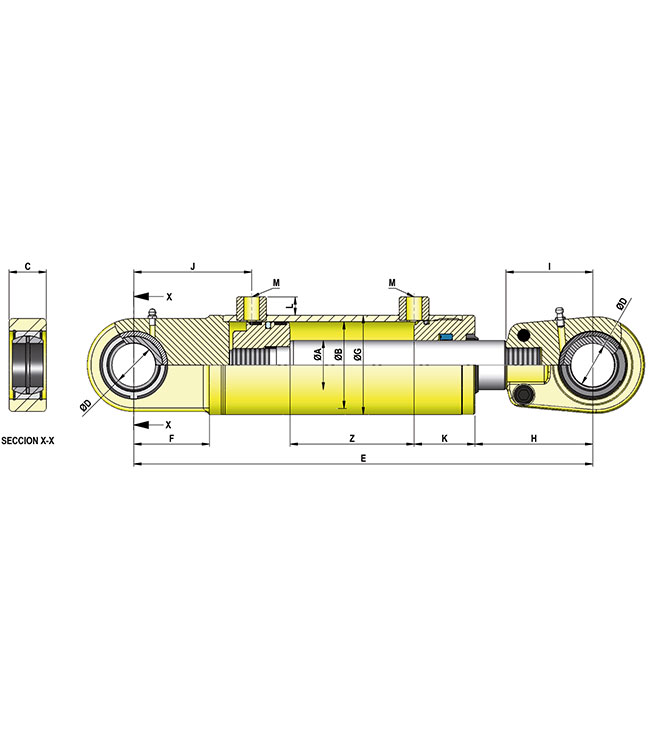

Dimensions:





ØA	ØB	STROKE	E	C	D	F	G	H	I	J	K	L	M (BSP)	WEIGHT [kg]
30	50	100	320	23	25	45	60	71	50	76	43	15	3/8"	4,44
30	50	150	370	23	25	45	60	71	50	76	43	15	3/8"	5,17
30	50	200	420	23	25	45	60	71	50	76	43	15	3/8"	5,62
30	50	250	470	23	25	45	60	71	50	76	43	15	3/8"	6,4
30	50	300	520	23	25	45	60	71	50	76	43	15	3/8"	6,8
30	50	350	570	23	25	45	60	71	50	76	43	15	3/8"	7,63
30	50	400	620	23	25	45	60	71	50	76	43	15	3/8"	7,98
30	50	450	670	23	25	45	60	71	50	76	43	15	3/8"	8,86
30	50	500	720	23	25	45	60	71	50	76	43	15	3/8"	9,16
30	50	600	770	23	25	45	60	71	50	76	43	15	3/8"	10,34
30	50	700	820	23	25	45	60	71	50	76	43	15	3/8"	11,52
30	50	800	870	23	25	45	60	71	50	76	43	15	3/8"	13,16

Hydraulic component for integration in hydraulic systems
