Hydraulic hand pump, single-acting, 17cm3, hydraulic tank 4 litres, lever

Hydraulic hand pump, single-acting, stroke volume 17cm3, hydraulic tank 4 litres, hand lever

This hydraulic hand pump impresses with its high quality and favourable price.

• The following features distinguish this product:
• Displacement 17cm³
• Piston Ø 16mm
• Working pressure: 120 bar
• Steel tank with 4 litres tank volume
• With hand lever 500mm
• Vertical and horizontal mounting possible
• Temperature range: -30°C to +90°C
• For use with hydraulic oil

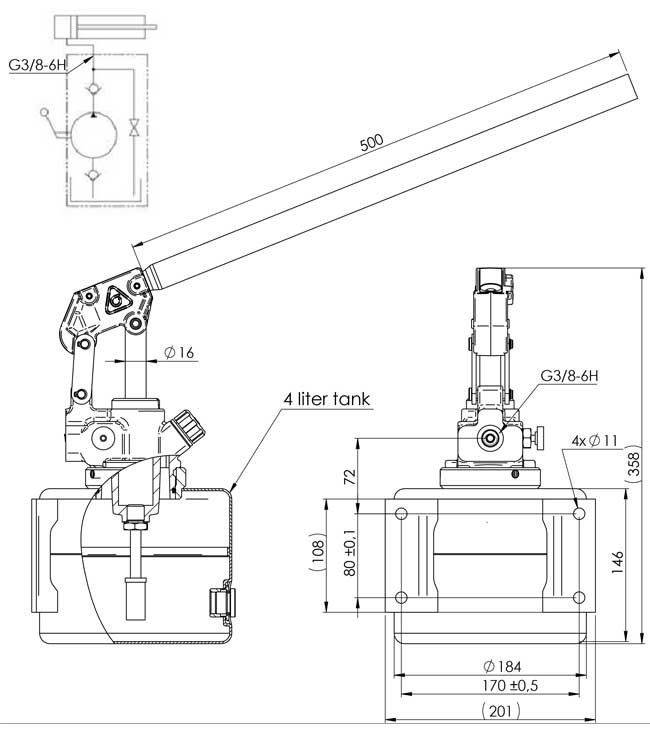

Dimensions hydraulic hand pump:

Hydraulic component for integration in hydraulic systems

All our hydraulic products are new, unused and in OEM quality (except when explicitly declared otherwise). Should a particular item not be in stock or not be represented here, please don’t hesitate to contact us. We will immediately try to find an appropriate solution pertaining to your given specifications. Moreover, we are constantly expanding our product range to offer you a wide variety of hydraulic components at reasonable prices. Hydromot hydraulics – always an excellent choice at low prices!
