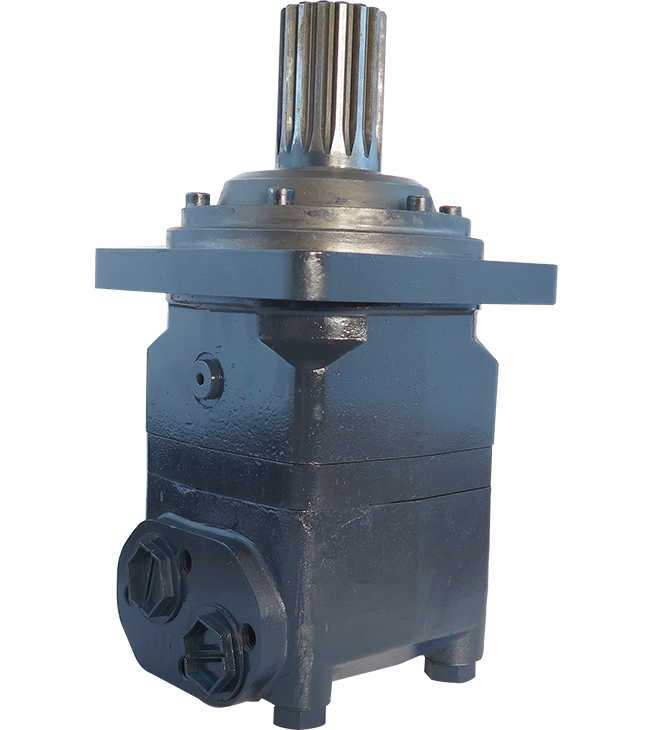

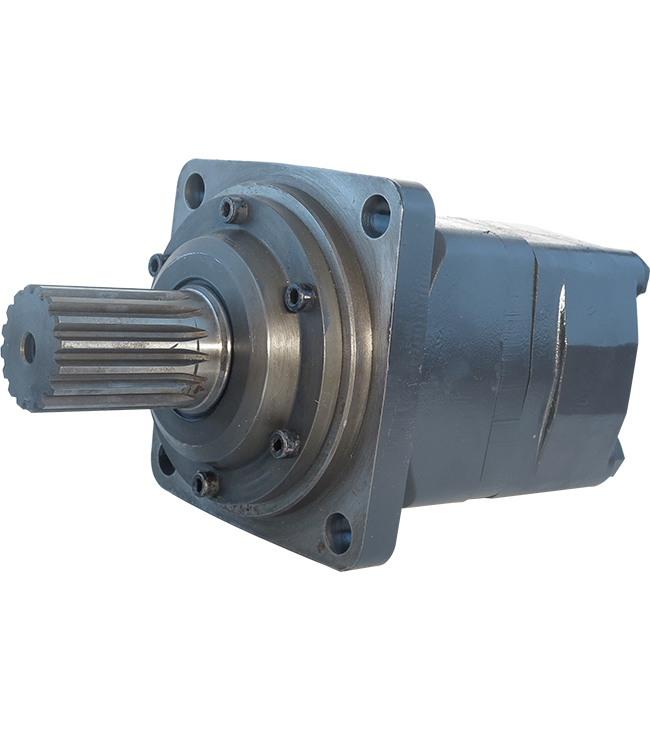

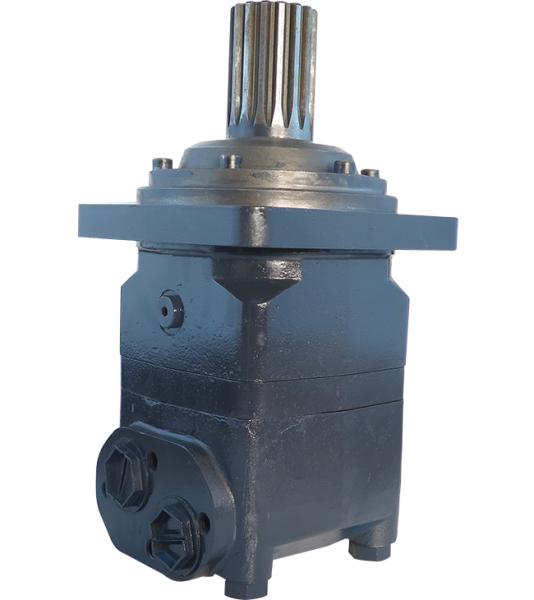

Hydraulic motor CPMV400SH

Motor (Hydraulic) CPMV400SH

This motor is characterised by its high quality and its reasonable price.

This product’s features are as follows:

• hydraulic motor CPMV400SH
• displacement: 400 ccm/REV
• ports: G 1’’
• shaft: Ø 2 1/8’’ splined, 16 T
• 4-hole square flange
• disc valve type
• internal check valve
• usage without drain line possible
• OEM quality
• optimized for small spaces

Our CPMV400SH motors are interchangeable to the following manufacturers:

• Danfoss, 151B0040, OMV 400 M. VK.-WELLE
• Danfoss, 151B0256, OMV 400 M. VK.-WELLE
• Danfoss, 151B3106, OMV 400

Technical data:


Type	CPMV315	CPMV400	CPMV500	CPMV630	CPMV800	CPMV1000
Displacement [ccm/REV]	333	419	518	666	801	990
max. Speed [RPM]	510	500	400	320	250	200
max. Torque [daNm]	92	118	146	166	188	201.5
max. Power [kW]	38	47	47	40	33	26.6
max. Pressure drop [bar]	200	200	200	180	160	140
max. Oil flow [l/min]	160	200	200	200	200	200
max. Input pressure [bar]	210	210	210	210	210	210

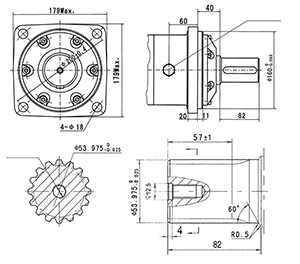

CPMV available flange and shaft versions:


Code	Mounting flange		Code	Shaft versions
Omit	square flange 4-hole		C	Ø50 mm cylindrical with key A14 x 9 x 70
C
