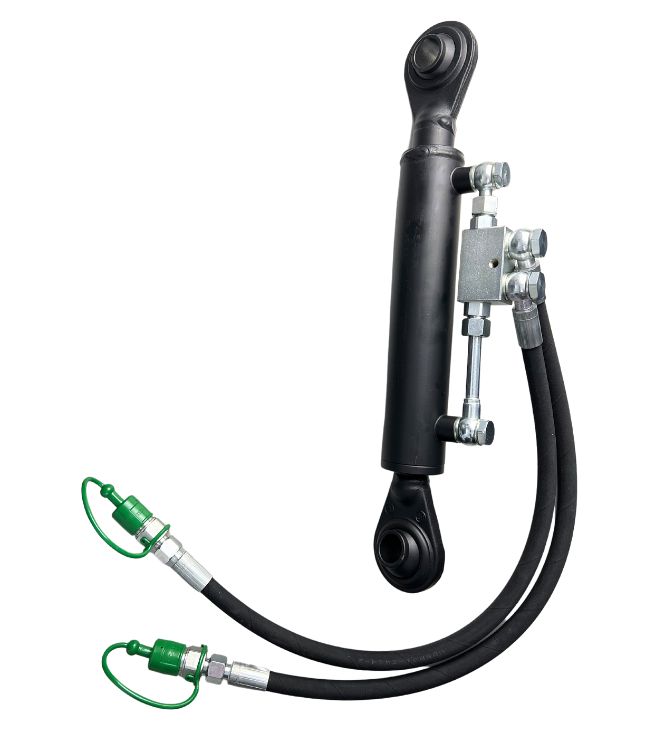

Hydraulic top link Cat2, piston Ø 50mm, rod Ø30mm, stroke 200mm - complete set

Hydraulic Top Link Kat2, Piston Ø 50mm, Rod Ø30mm, Stroke 200mm - Complete Set

This hydraulic cylinder stands out for its high quality and affordable price.

The following characteristics distinguish this product:

• Hydraulic top link of category 2
• Stroke 200mm
• Ø Piston: 50mm
• Ø Piston rod: 30mm
• Tractive force 1.3t
• Compressive force 2,2t
• Operating pressure 200bar
• Installation length: 470 mm
• With integrated load holding valve
• With mounting kit consisting of: 2 x hydraulic hose, 2 x hollow screw, 2 x plug, 2 x dust cap
• Completely ready for installation

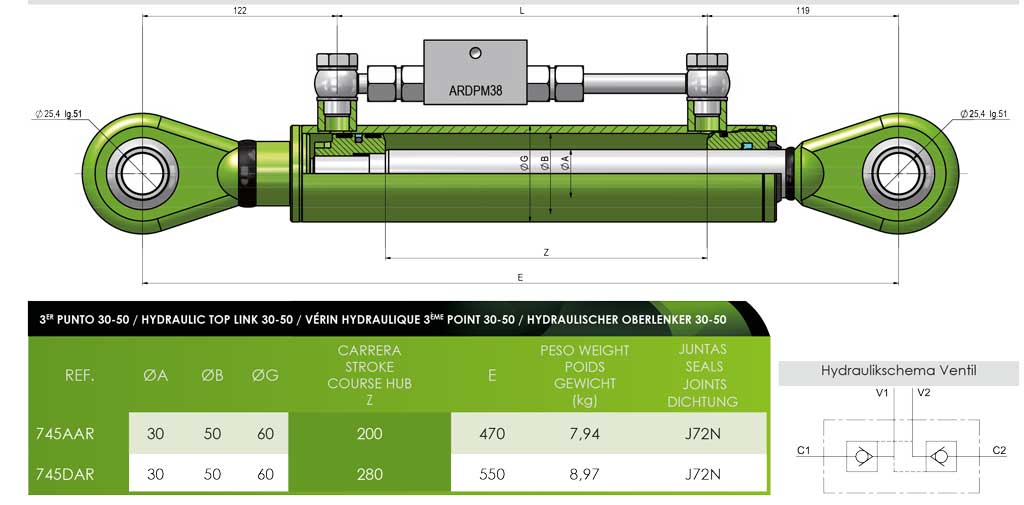

Dimensions:





Hydraulic Component for Integration into Hydraulic Systems

All our hydraulic products are brand new, original equipment manufacturer quality (unless explicitly stated otherwise). If an item you want is not in stock or listed, please feel free to contact us. We will then immediately try to find a suitable solution according to your specifications. Furthermore, we continuously expand our range in order to offer you a large selection of hydraulic components at affordable prices. Hydromot Hydraulics – always affordable, always good!
