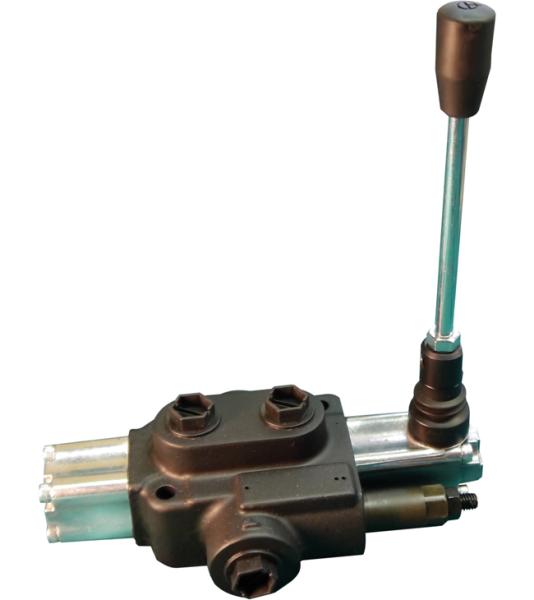

Lever Valve, 45 Liter, Spring Centered, 1 Section, with Pressure Relief Valve 160 to 315 bar

Hydraulic valve, lever valve, 45 liters, spring centered, 1 section, with pressure relief valve

This lever valve is characterized by its high quality and reasonable price.

Its features are as follows:

• monoblock valve
• 45 l/min
• 1 section
• connections A&B: G 3/8’’
• double acting
• spring centered
• max. working pressure: 250 bar
• incl. pressure relief valve
• Pressure relief valve adjustable from 160 bar – 315 bar (standard: 220 bar)

More details can be found in our catalogue!

Hydraulic scheme:

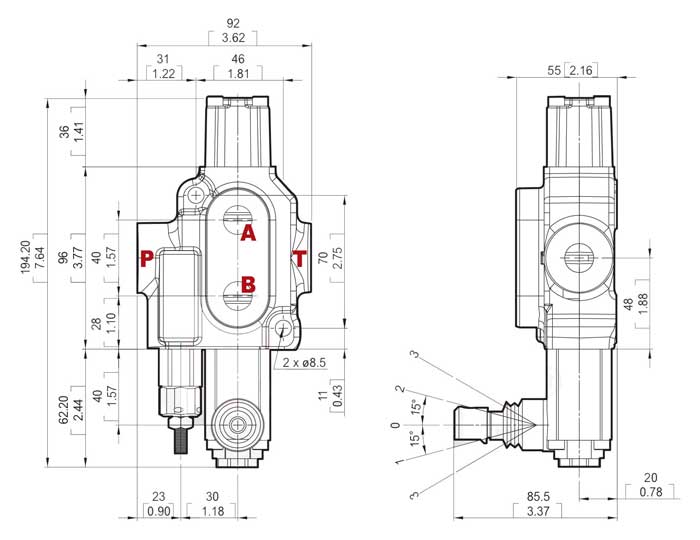

Dimensions:

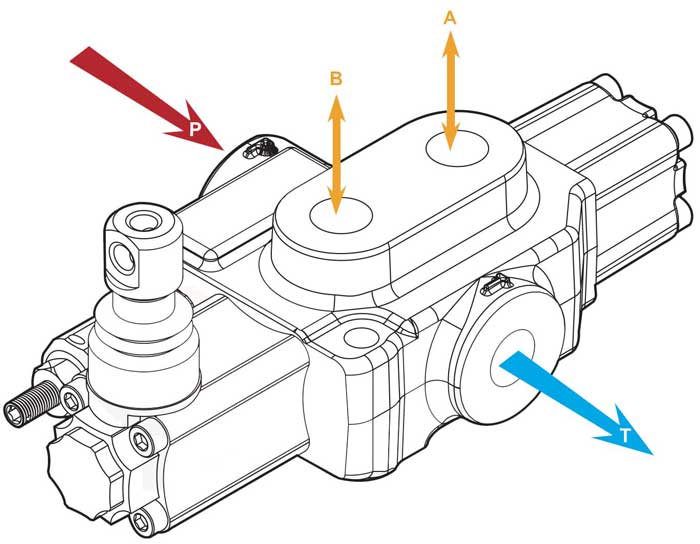

Mounting instructions:

• Assemble the valves on a flat surface to avoid problems caused by deformation
• Before painting, please close the connection ports with aplastic plug
• For cleaning please do not use high-pressure cleaners.

Catalogue:

Hydraulic component for integration in hydraulic systems

All our hydraulic products are new, unused and in OEM quality (except when explicitly declared otherwise). Should a particular item not be in stock or not be represented here, please don’t hesitate to contact us. We will immediately try to find an appropriate solution pertaining to your given specifications. Moreover, we are constantly expanding our product range to offer you a wide variety of hydraulic components at reasonable prices. Hydromot hydraulics – always an excellent choice at low prices!
