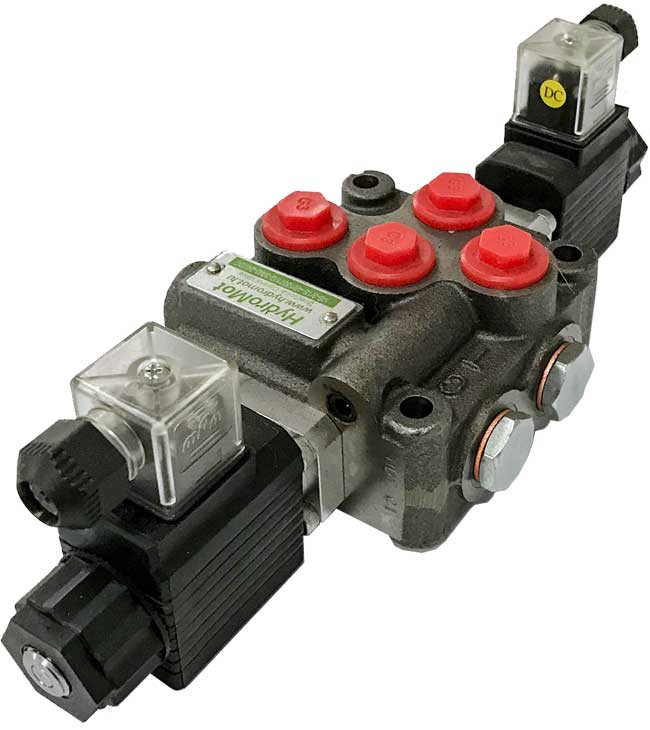

Lever Valve, 60 Liter, Electrical 24 Volt, 1 Section, with Pressure Relief Valve PRV 160 to 315 bar

Valve, lever valve, 60 liters, electrical 24 V, 1 section, with pressure relief valve 160 to 315 bar

This lever valve is characterised by its high quality and reasonable price.

Its features are as follows:

• monoblock valve
• 60 l/min
• 1 sections
• connections A&B: G 1/2’’
• double acting
• electrical 24 Volt
• pressureless flow in neutral position
• max. working pressure: 315 bar
• incl. pressure relief valve
• pressure relief valve adjustable from 160 bar – 315 bar (standard: 220 bar)

More details can be found in our catalogue!

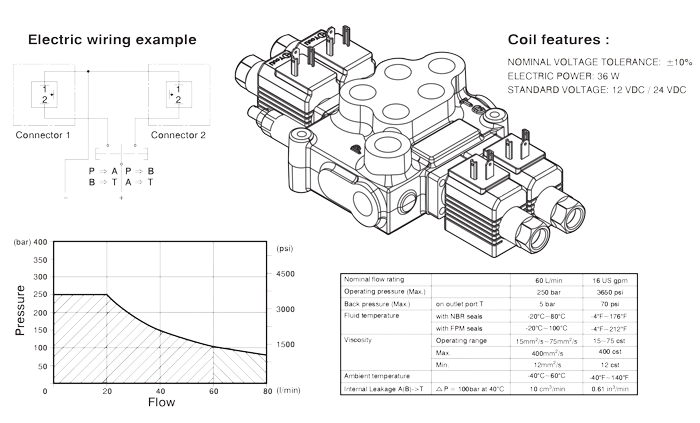

Hydraulic scheme:


Pressure carry over:
Our valves are usable for pressure carry over (s. mounting instruction, valve delivery is including plug):





Dimensions:



Mounting instructions:

• Assemble the valves on a flat surface to avoid problems caused by deformation
• Before painting, please close the connection ports with aplastic plug
• For cleaning please do not use high-pressure cleaners.

Katalogdownload:



Hydraulic component for integration in hydraulic systems
