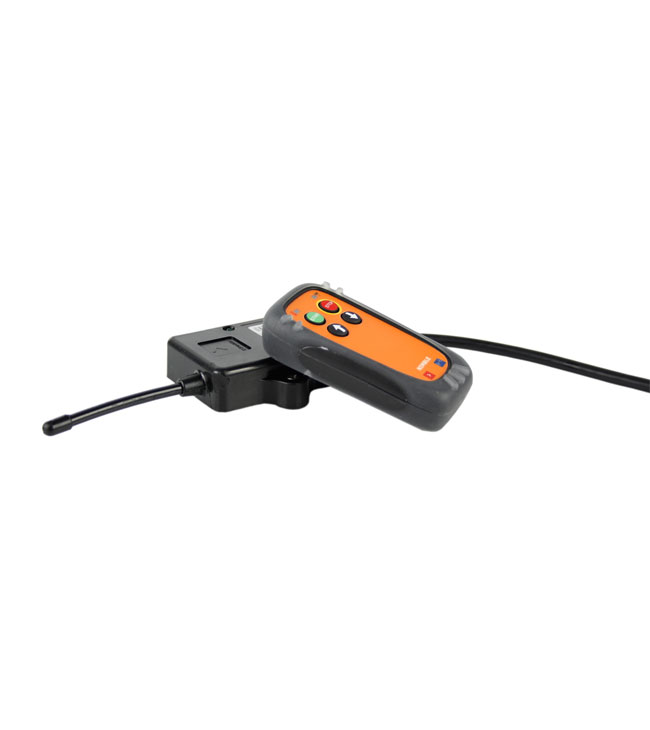

RTX Nimble Remote Control Unit (2 functions) for power packs, 12V

RTX Nimble Remote Control Unit (2 functions) for power packs, 12V

This steering wheel is characterised by it high quality and reasonable price.

Range of applications:
Winches and cable winches, hydraulic cranes, industrial automation, trailers for special transports, vehicles and equipment for agriculture, hydraulic control units, lifting platforms

Its features are as follows:

Technical data receiver:

• Number of outputs: 2
• Frequency bands: ISM 868/915 MHz
• microprocessor control
• Dimensions: 190x83x22 including antenna
• Protection class: IP67
• Battery reversal protection
• Nominal supply 12/24VDC (10 - 30 VDC permitted)
• Current consumption at standstill: 18mA (12V); 14mA (24V)
• Internal and re-insertable fuse: 7 A
• Max. current output for each channel: 5 A
• Max. total current output: 7 A

Technical data handheld:

• Number of controls: 2
• Frequency bands: ISM 868/915 MHz
• Battery supply by 2 batteries type AAA 1, 5V
• Current consumption at standstill: ~ 1 μA
• Average current consumption in operation: 14 mA
• Range in open field: 100 - 150 m
• Transmission and charging current control lamp
• Silicone rubber keyboard (protection class IP67)
• Total weight including batteries: 120 g
• Operating temperature: from -20°C to +70°C
• Dimensions (in mm): 109 x 56 x 30

Hydraulic component for integration in hydraulic systems

All our hydraulic products are new, unused and in OEM quality (except when explicitly declared otherwise). Should a particular item not be in stock or not be represented here, please don’t hesitate to contact us. We will immediately try to find an appropriate solution pertaining to your given specifications. Moreover, we are constantly expanding our product range to offer you a wide variety of hydraulic components at reasonable prices. Hydromot hydraulics – always an excellent choice at low prices!
