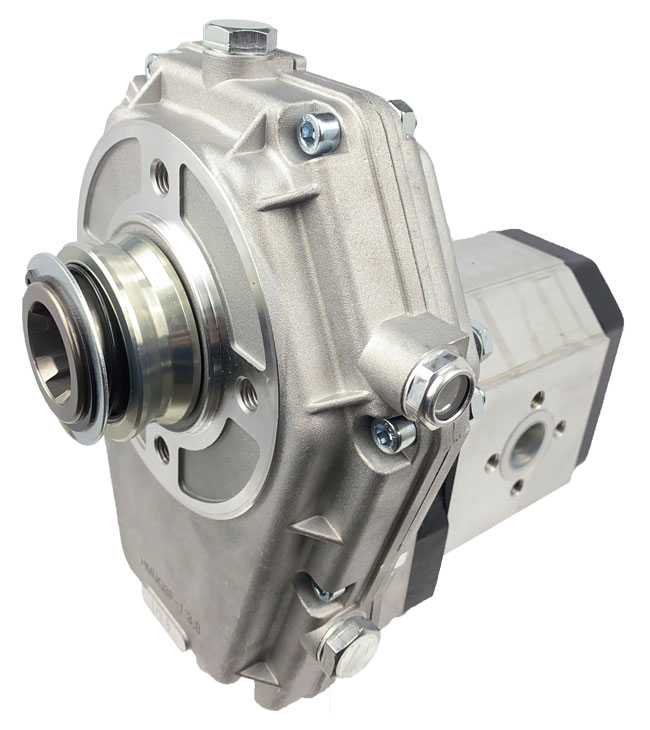

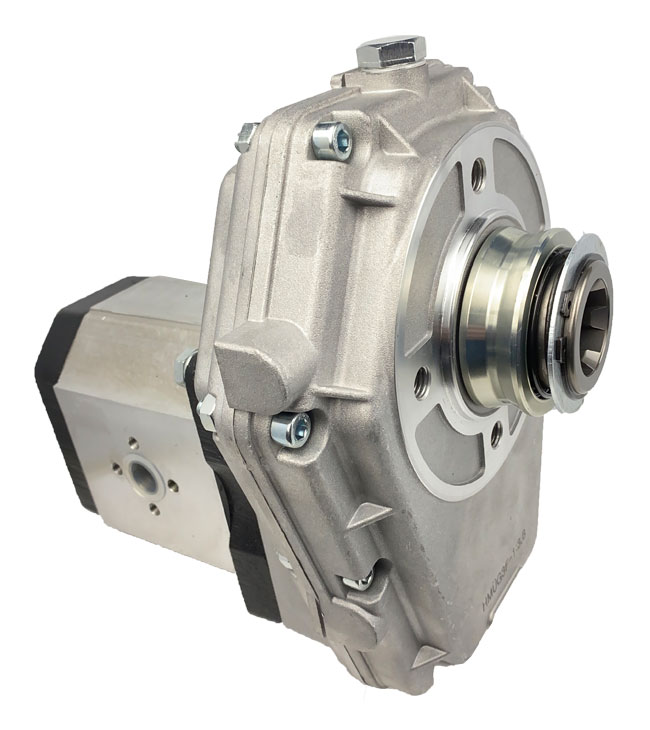

Gear Box hollow shaft with Hydraulic Pump (Gear Pump) group 3 selectable displacement

P.T.O. Shaft Gear Box Group 3 with Hydraulic Pump (Gear Pump) Group 3

This P.T.O. shaft gear box is equipped with a hydraulic pump (gear pump).

Gear box with P.T.O shaft:

• P.T.O. shaft 1 3/8''
• Ratio i=1:3,8
• Size: group 3

Attached hydraulic pump (gear pump) with the following parameters

• Displacement selectable from 20 to 63 ccm/REV,
• con. shaft 1:8,
• rotation direction: right
• max. working pressure: up to 250bar (depending on pump size)

Flow rate gear / pump unit:



Elbow flanges:

Size	Inlet ports	Outlet ports
20ccm - 28ccm	LK40-3/4"	LK40-3/4"
32ccm - 55ccm	LK51-1"	LK40-3/4"
63ccm	LK62-11/4"	LK51-1"

Dimension:

Gear box:


Gear pump:




Hydraulic component for integration in hydraulic systems

All our hydraulic products are new, unused and in OEM quality (except when explicitly declared otherwise). Should a particular item not be in stock or not be represented here, please don’t hesitate to contact us. We will immediately try to find an appropriate solution pertaining to your given specifications. Moreover, we are constantly expanding our product range to offer you a wide variety of hydraulic components at reasonable prices. Hydromot hydraulics – always an excellent choice at low prices!
