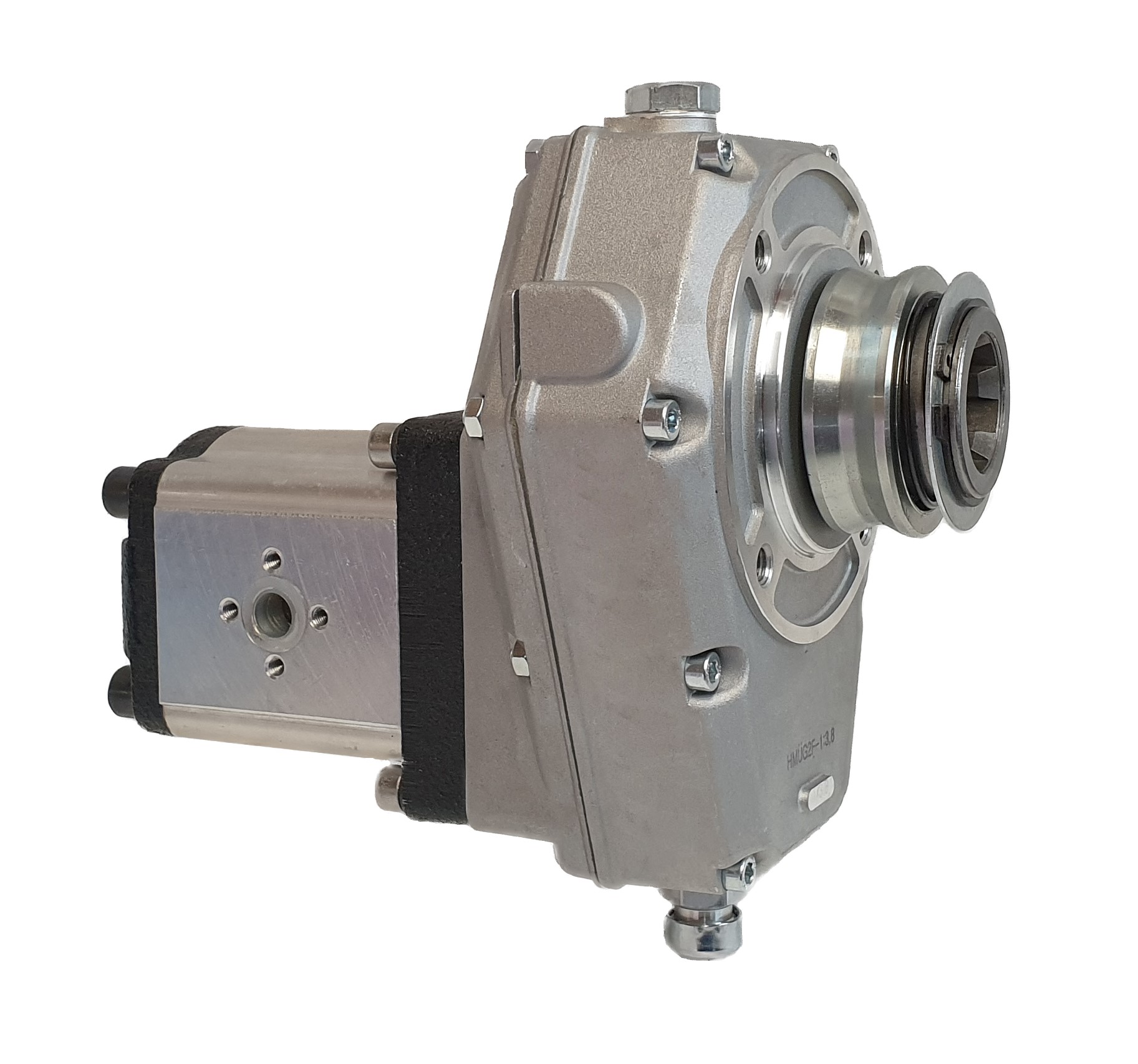

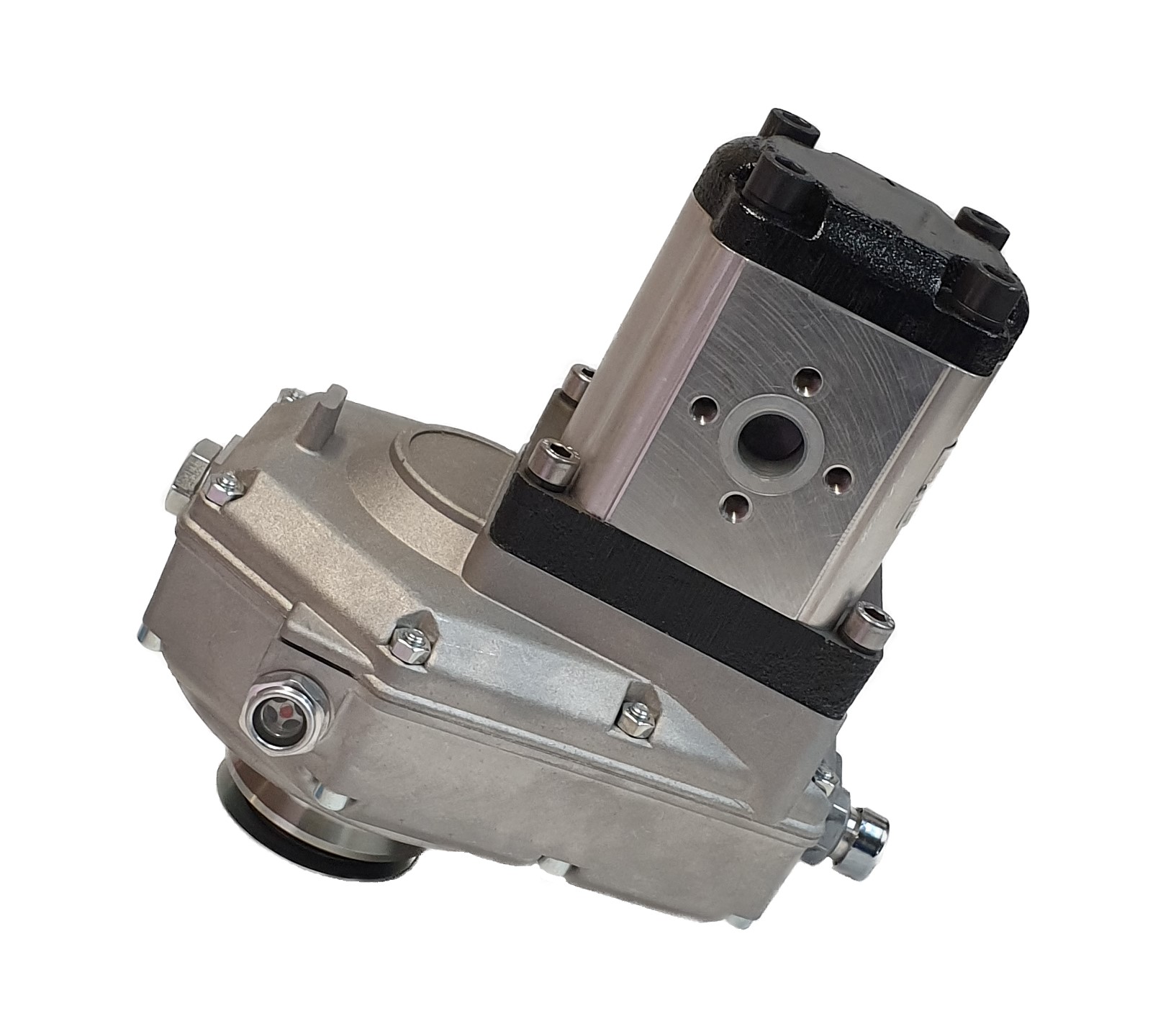

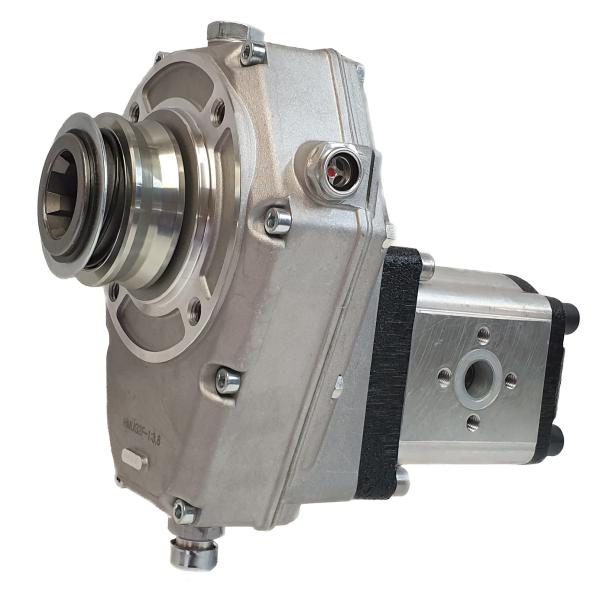

Gear Box Hollow Shaft with Snap Ring with Hydraulic Pump (Gear Pump) group 2 selectable displacement

P.T.O. Shaft Gear Box Group 2 with Hydraulic Pump (Gear Pump) Group 2

This P.T.O. shaft gear box is equipped with a gear pump.

Gear box with P.T.O shaft:

• Hollow P.T.O. shaft 1 3/8'' with snap ring
• Ratio i=1:3,8
• Size: group 2

Attached hydraulic pump (gear pump) with the following parameters

• Displacement selectable from 4 to 32 ccm/REV,
• con. shaft 1:8,
• rotation direction: right
• max. working pressure: up to 250bar (depending on pump size)

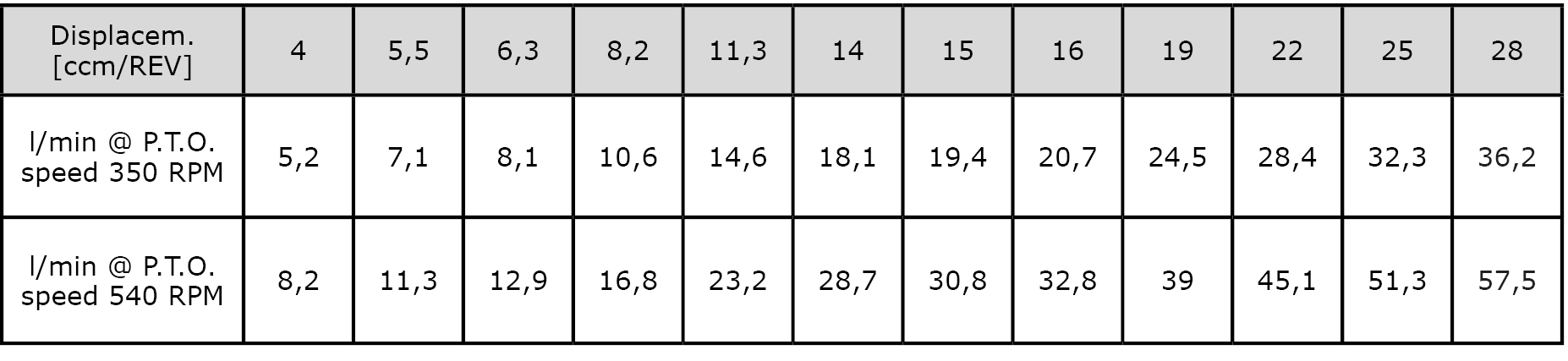

Flow rate gear / pump unit:

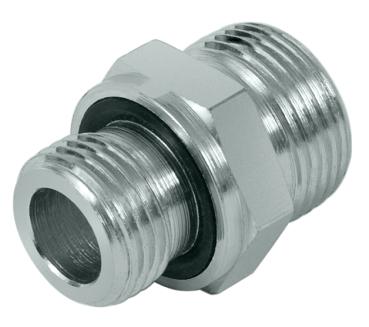

Elbow flanges:

Size	Inlet ports	Outlet ports
4ccm - 9ccm	LK31-1/2"	LK31-1/2"
10ccm - 26ccm	LK40-3/4"	LK31-1/2"
28ccm - 32ccm	LK40-3/4"	LK40-3/4"

Hydraulic component for integration in hydraulic systems All our hydraulic products are new, unused and in OEM quality (except when explicitly declared otherwise). Should a particular item not be in stock or not be represented here, please don’t hesitate to contact us. We will immediately try to find an appropriate solution pertaining to your given specifications. Moreover, we are constantly expanding our product range to offer you a wide variety of hydraulic components at reasonable prices. Hydromot hydraulics – always an excellent choice at low prices!
