Hydraulic Power Pack, 3 kW, 8 liter oil reservoir square (steel), 4.8 ccm/REV gear pump, for double acting use

Hydraulic Power Pack, 3 kW, 8 liter oil reservoir square (steel), 4.8 ccm/REV gear pump, for double acting use

This hydraulic power pack is characterised by its high quality and its reasonable price.

The hydraulic power pack has the following features:

• Gear pump with 4.8 ccm/REV (equal about 6.3 l/min)
• Max. working pressure: PRV adjusted to 180 bar
• Hydraulic reservoir (steel reservoir) 8 liter with return filter
• Horizontal assembly
• Suction filter 0-17 l/min
• With pressure gauge 0-250 bar
• Connection "X" and "Y" plugged
• With 4/3-way solenoid valve (24 Volt) for double acting use
• Electrical motor 3kW, 400V, 50Hz, Size B14

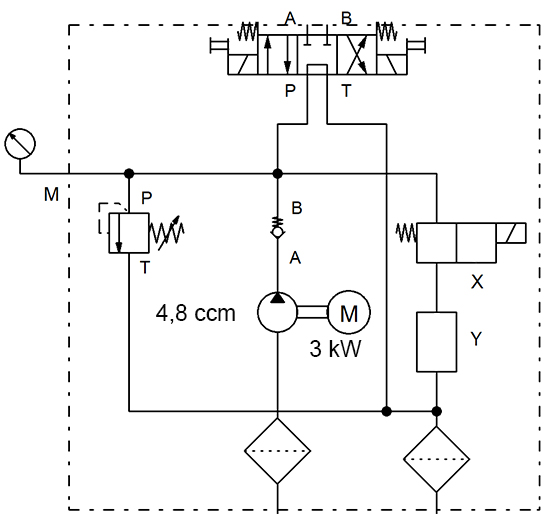

Hydraulic scheme:

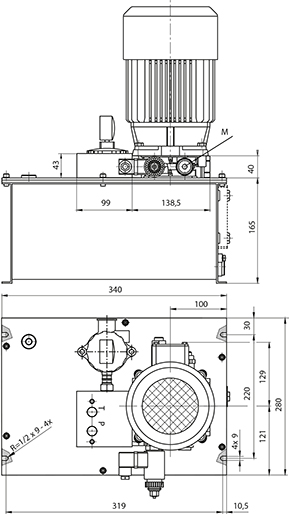

Dimension (without manifold):

More information and versions you'll find in our catalogue, delivery on request:





Hydraulic component for integration in hydraulic systems
