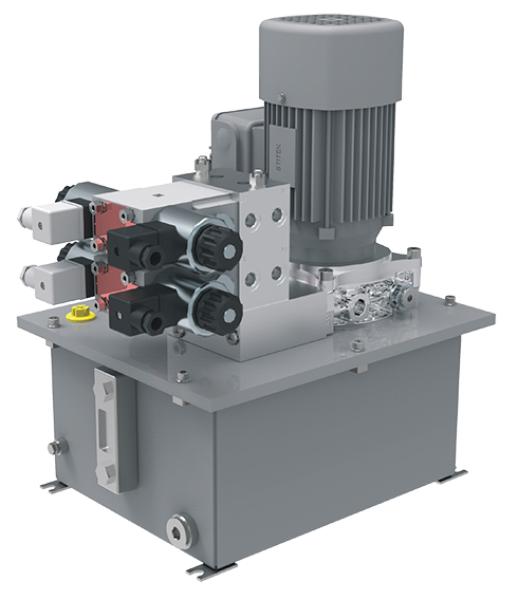

ARGO HYTOS Hydraulic Power Pack, 3 kW, 40 liter oil reservoir square (steel), 7.9 ccm/REV gear pump, for double acting use

ARGO HYTOS Hydraulic Power Pack, 3 kW, 40 liter oil reservoir square (steel), 7.9 ccm/REV gear pump, for double acting use

This hydraulic power pack is characterised by its high quality and its reasonable price.

The hydraulic power pack has the following features:

• Gear pump with 7.9 ccm/REV (equal about 10.4 l/min)
• Max. working pressure: PRV adjusted to 180 bar
• Hydraulic reservoir (steel reservoir) 40 liter with return filter
• Horizontal assembly
• Suction filter 0-17 l/min
• With pressure gauge 0-250 bar
• Connection "X" and "Y" plugged
• With 4/3-way solenoid valve (24 Volt) for double acting use
• Electrical motor 3kW, 400V, 50Hz, Size B14

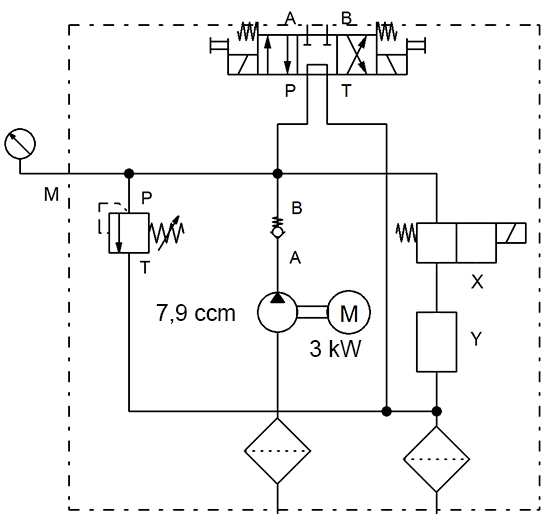

Hydraulic scheme:

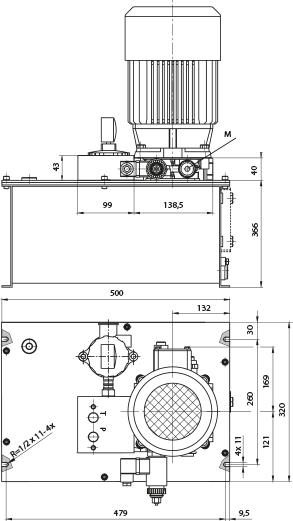

Dimension (without manifold):

More information and versions you'll find in our catalogue, delivery on request:





Hydraulic component for integration in hydraulic systems

All our hydraulic products are new, unused and in OEM quality (except when explicitly declared otherwise). Should a particular item not be in stock or not be represented here, please don’t hesitate to contact us. We will immediately try to find an appropriate solution pertaining to your given specifications. Moreover, we are constantly expanding our product range to offer you a wide variety of hydraulic components at reasonable prices. Hydromot hydraulics – always an excellent choice at low prices!
