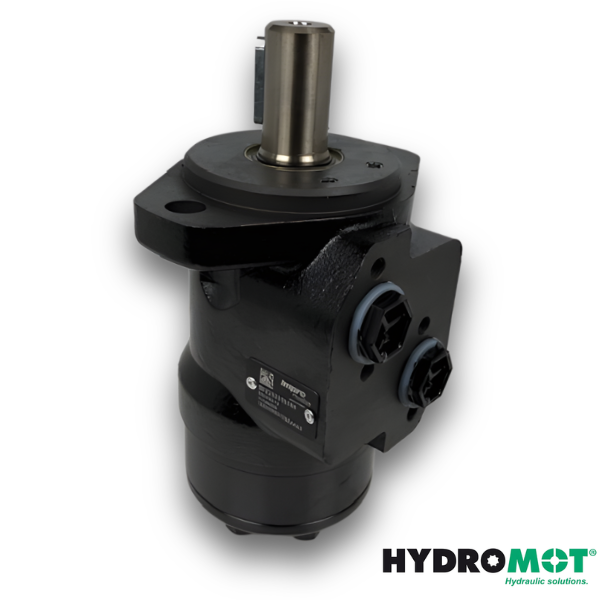

WP-155-200-A63-12 Hydraulic Motor

WP-155-200-A63-12 Hydraulic Motor, 190 cm³/rev, cylindrical shaft Ø25 mm, SAE A 2-bolt flange (106.4 mm)

The WP hydraulic motor from Impro Fluidtek offers a cost-effective and reliable solution for applications that require high torque in a compact package. Thanks to its spool-valve design, the motor operates exceptionally smoothly and efficiently across a wide torque and speed range. Integrated check valves enhance versatility and extend seal life — ideal for continuous-duty use in industrial and agricultural equipment.

Technical Data – WP-155-200-A63-12 (155200A6312BAAAAS)

• Displacement: 190 cm³/rev (11.6 in³/rev)
• Max. flow: 60 L/min
• Max. speed: 315 rpm
• Max. torque: 380 Nm
• Max. pressure: 160 bar
• Shaft: cylindrical Ø25 mm with key
• Mounting flange: SAE A, 2-bolt (106.4 mm)
• Ports A+B: G 1/2″, side-mounted, offset
• Finish: black painted, unpainted mounting face

Benefits & Features

• High efficiency across a broad operating range
• Smooth operation thanks to spool-valve design
• Extended seal life due to integrated check valves
• Bi-directional operation by simply reversing flow
• Optional sensor and valve functions available

Typical Applications

• Agricultural machinery
• Conveyor and washing systems
• Sweeper and brush drives
• Food processing
• Screw drives

Download datasheet



Do you have questions about our WP series hydraulic motor? Need support selecting the right hydraulic motor? Feel free to contact us by phone at +352 267 43 080, via our contact form, by email at shop@hydromot.lu or on WhatsApp.
