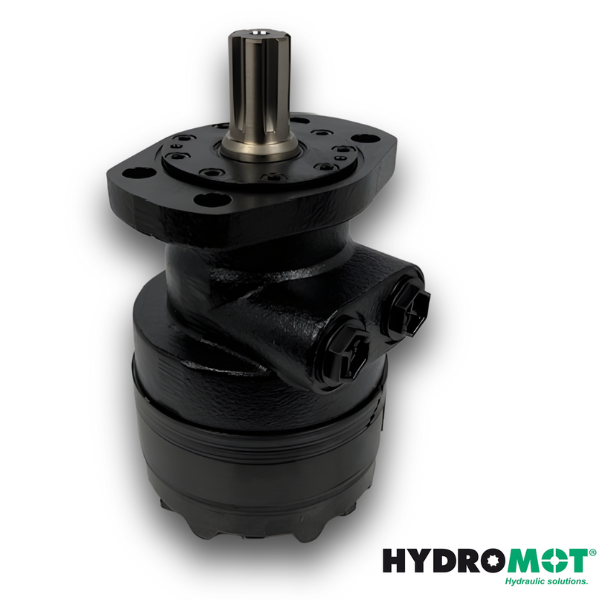

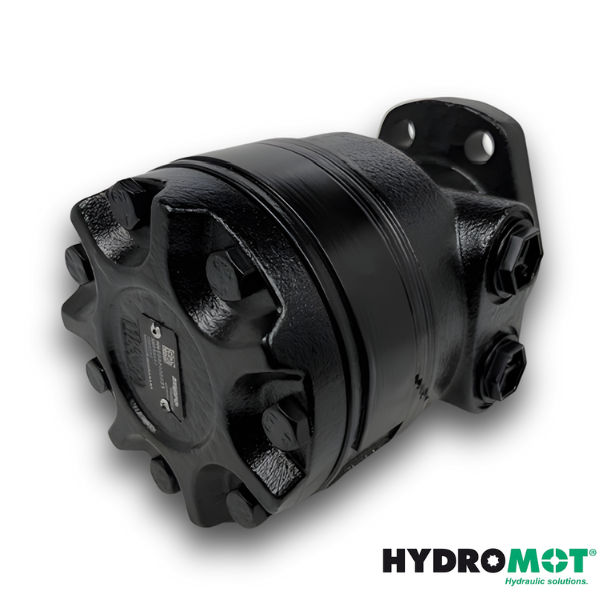

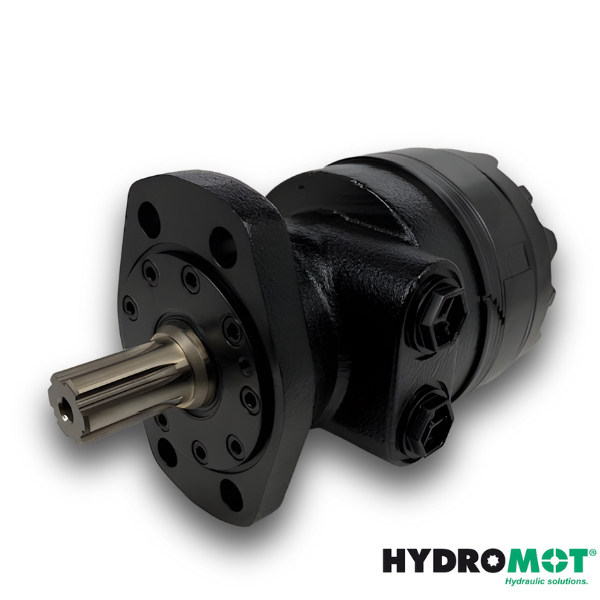

RE-505-300-A38-02 Hydraulic Motor

RE-505-300-A38-02 Hydraulic Motor, medium-duty orbital motor, 300 cm³/rev, splined Ø 25.32 mm (SAE 6B), 4-bolt Magneto SAE A oval flange (106.3 mm)

The RE hydraulic motor from Impro Fluidtek is a robust medium-duty orbital motor for low-flow, high-pressure applications. Its compact valve-in-rotor design ensures efficient oil distribution and a short overall length, while the heavy-duty drive link with full-flow lubrication delivers exceptional durability — ideal for reliable continuous operation.

Technical Data – RE-505-300-A38-02 (505300A3802AAAAAS)

• Displacement: 300 cm³/rev (18.3 in³/rev)
• Max. flow: 83 L/min
• Max. speed: 277 rpm
• Max. torque: 826 Nm
• Max. pressure: 207 bar
• Shaft: splined Ø 25.32 mm (SAE 6B)
• Flange: 4-bolt Magneto SAE A oval flange (106.3 mm)
• Ports A+B: G 1/2″, side, straight
• Finish: black painted

Benefits & Features

• Exceptional durability thanks to heavy-duty drive link
• High efficiency and compact size via valve-in-rotor architecture
• Excellent efficiency at low speeds and high pressure
• Modular concept with bearing, flange, and shaft variants
• Sensor, valve, and freewheel options for maximum configurability
• Service-friendly: sensor add-on located outside the high-pressure zone

Typical Applications

• Wheel drives for medium-duty vehicles
• Auger drives
• Mixers
• Winch drives
• Swing drives
• Grapple heads
• Feed rollers
• Broom and brush drives
