Size 10 / CETOP5

Discover our NG10 / CETOP 5 hydraulic solenoid valves – precise directional control valves in a modular design for demanding hydraulic applications. These valves,
which comply with ISO 4401, enable reliable control at flow rates of up to 140 l/min and pressures of up to 315 bar. Learn more...

Filter
Design
Control type
Failed to retrieve the available filter values!

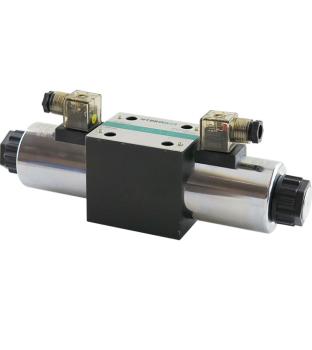

Solenoid Valve, NG06, 3C4, P closed, A-B-T connected
Solenoid Valve, NG06, 3C4, P closed, A-B-T connected
  • 4/3-way solenoid valve
  • scheme: P closed, A-B-T connected
  • direct controlled
  • for modular assembly
  • max. pressure: 315 bar
  • spool voltage: 12V DC, 24V DC or 230V AC
  • Qmax.: see diagram in our catalogue
Scheme Valve Solénoïde, CETOP5, NG10, 3C4
123,14 EUR
105,25 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
105,25 EUR excl. 17% tax
solenoid valve 43 cetop 3 front

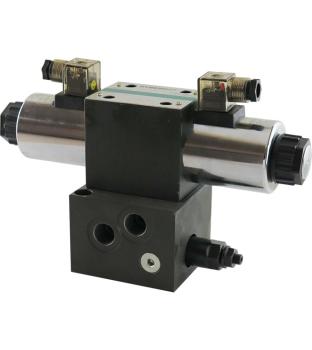

Solenoid Valve, Cetop 5, 3C60, A-B closed, P-T connected assembled with subplate and PRV
  • 4/3-way solenoid valve, CETOP 5
  • scheme: A-B closed, P-T connected
  • direct controlled
  • for modular assembly,assembled with subplate (steel) and PRV
  • max. pressure: 315 bar
  • spool voltage: 12V DC, 24V DC or 230V AC
  • Qmax.: see diagram in our catalogue
245,59 EUR
209,91 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
209,91 EUR excl. 17% tax
solenoid valve 43 cetop 5 front 2B2
Solenoid Valve, Cetop 5, 2B2
  • 4/3-way solenoid valve
  • Qmax.: see diagram in our catalogue

Scheme:
Scheme Solenoid Valve, Cetop 5, 2B2
103,53 EUR
88,49 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
88,49 EUR excl. 17% tax
solenoid valve 43 cetop 3 front
Solenoid Valve, Cetop 5, 3C60, A-B closed, P-T connected
  • 4/3-way solenoid valve, CETOP 5
  • scheme: A-B closed, P-T connected
  • direct controlled
  • for modular assembly
  • max. pressure: 315 bar
  • spool voltage: 12V DC, 24V DC or 230V AC
  • Qmax.: see diagram in our catalogue
Scheme NG10, 3C60
123,14 EUR
105,25 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
105,25 EUR excl. 17% tax
solenoid valve 43 closed cetop 5 front
Solenoid Valve, Cetop 5, 3C2, A-B-P-T closed
  • 4/3-way solenoid valve, CETOP5
  • scheme: A-B-P-T closed
  • direct controlled
  • for modular assembly
  • max. pressure: 315 bar
  • spool voltage: 12V DC, 24V DC or 230V AC
  • Qmax.: see diagram in our catalogue
Scheme NG10, 3C2
123,14 EUR
105,25 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
105,25 EUR excl. 17% tax
product image Solenoid Valve, Cetop 5, 3C3, A-B-P-T connected
Solenoid Valve, Cetop 5, 3C3, A-B-P-T connected
  • 4/3-way solenoid valve, CETOP5
  • scheme: A-B-P-T connected
  • direct controlled
  • for modular assembly
  • max. pressure: 315 bar
  • spool voltage: 12V DC, 24V DC or 230V AC
  • Qmax.: see diagram in our catalogue

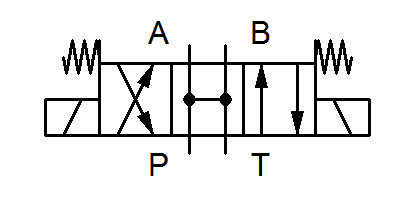

Scheme NG10 3C3
123,14 EUR
105,25 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
105,25 EUR excl. 17% tax
solenoid valve 43 cetop 3 front
Solenoid Valve, Cetop 5, 3C2, A-B-P-T closed assembled with subplate and PRV
  • 4/3-way solenoid valve, CETOP 5
  • scheme: A-B-P-T closed
  • direct controlled
  • for modular assembly,assembled with subplate (steel) and PRV
  • max. pressure: 315 bar
  • spool voltage: 12V DC, 24V DC or 230V AC
  • Qmax.: see diagram in our catalogue
245,59 EUR
209,91 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
209,91 EUR excl. 17% tax
solenoid valve 42 cetop 5 front 2B3BL
Solenoid Valve, Cetop 5, 2B3BL
  • 4/2-way solenoid valve
  • Qmax.: see diagram in our catalogue

Scheme:
Scheme NG10, 2B3BL
103,53 EUR
88,49 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
88,49 EUR excl. 17% tax
1 to 8 (from a total of 8)





Thanks to the CETOP 5 mounting pattern, they are compatible with systems from Bosch, Parker, Eaton, and Argo Hytos and can be easily integrated into existing installations. Our 4/2 and 4/3 directional control valves are available in various circuit symbols (e.g., 3C4, 3C60) and voltage options of 12 V DC, 24 V DC, or 230 V AC. Optionally, we offer pre-assembled versions on a steel base plate with an integrated pressure relief valve. Order NG10 / CETOP 5 solenoid valves now in the Hydromot online shop and benefit from fast delivery and top quality.


Frequently Asked Questions (FAQ): Hydraulic Solenoid Valves NG10 / CETOP 5

What are solenoid valves of nominal size 10 (NG10) / CETOP 5?

Solenoid valves of nominal size NG10 / CETOP 5 are standardized hydraulic solenoid valves manufactured according to the ISO 4401 (CETOP 5) standard. They are characterized by their modular design and robust construction, allowing easy integration into hydraulic systems.

What is the primary function of these valves?

The valves are used to control the flow of hydraulic fluids in industrial applications. They are typically 4/2 or 4/3 directional control valves that regulate flow between ports P, A, B, and T — for example, to operate double-acting cylinders.

What are the typical maximum pressure and flow values for NG10 / CETOP 5 solenoid valves?

The valve bodies are robustly designed to withstand high operating pressures:

  • Max. operating pressure: up to 315 bar
  • Max. flow rate: approximately 130 – 140 l/min

What materials are used for the housings and seals?

The valve bodies are made from durable materials such as steel or brass. The sealing elements consist of long-lasting, chemically resistant materials such as NBR or FKM (Viton), selected according to the hydraulic fluid used.

Where are NG10 / CETOP 5 solenoid valves used?

NG10 / CETOP 5 solenoid valves are widely used in industrial hydraulic systems, including:

  • for controlling hydraulic cylinders in machinery and drives
  • in manufacturing systems and presses
  • in vehicle hydraulics and mobile machinery (e.g., forestry and agricultural equipment)

What electrical voltages are available for operating these valves?

The solenoid valves are available with common voltage options:

  • 12 V DC (direct current)
  • 24 V DC (direct current)
  • 230 V AC (alternating current)

Are Hydromot NG10 directional valves compatible with products from other manufacturers?

Yes. The Hydromot CETOP directional control valves are built in a modular design and are therefore largely compatible and interchangeable with solenoid valves from leading manufacturers such as Bosch, Parker, Eaton, and Argo Hytos.
