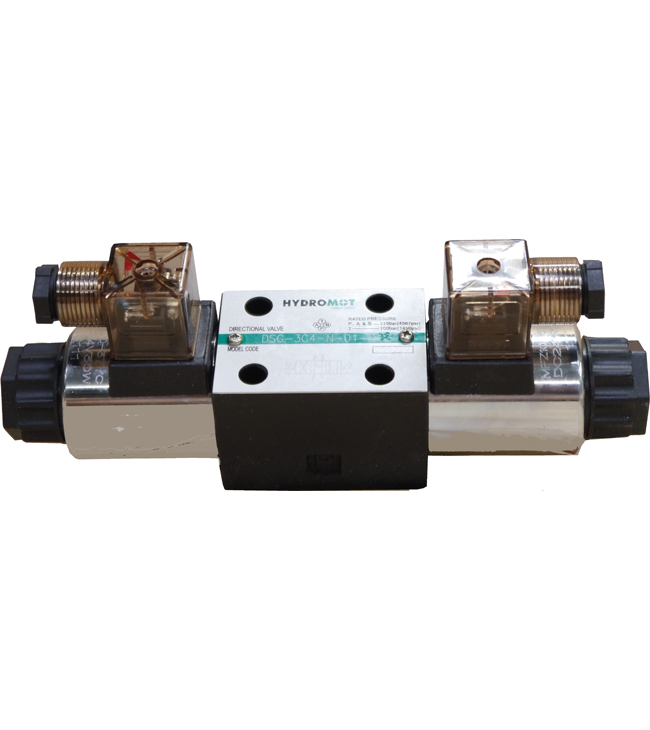

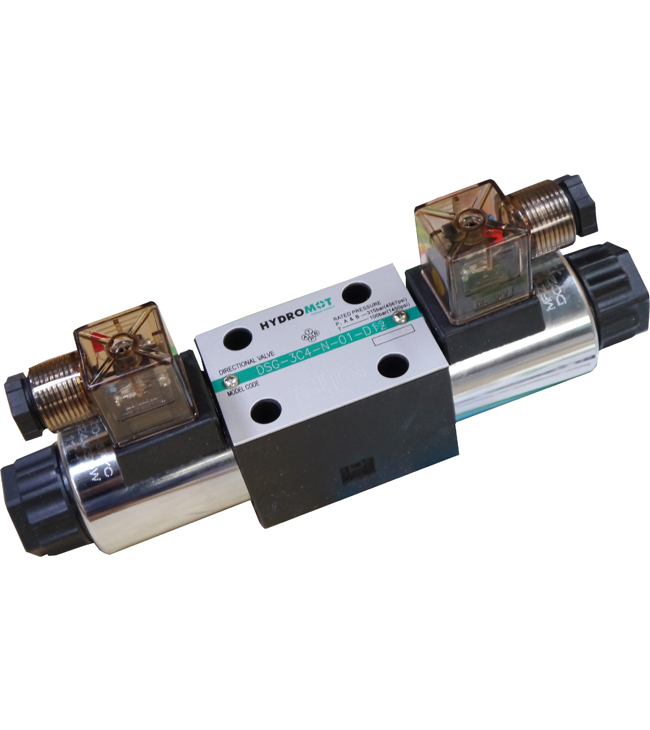

CETOP 3 Solenoid Hydraulic Valve, 3C9, T closed, A-B-P connected

Solenoid Hydraulic Valve, Cetop 3, 3C9

This solenoid valve is characterised by ist high quality and ist reasonable price..

This products features are as follows:

• 4/3-way solenoid valve
• direct controlled
• for modular assembly
• max. pressure: 315 bar
• spool voltage: 12V DC, 24V DC or 230V AC
• Qmax.: see diagram in our catalogue

Scheme:
A-B-P connected
T closed

Technical data:

Type		CETOP03 (NG06)
Working pressure (bar)	Ports A,B,P	315
Working pressure (bar)	Port T	100
Max oil flow (l/min)		80
Fluid tempreture (°C)		-20 bis 70
Viscosity (mm2/s)		-2.8 bis 100
Voltages	DC AC	12V     24V 110V/50Hz       220V/Hz
Max switching frequency (1/h)	DC AC	15000 7200
Isolation degree		IP65
Weight (Kg)		DC	AC
Single solenoid		1.45	1.4
Double solenoid		1.95	1.9

Dimensions:

Hydraulic component for integration in hydraulic systems
