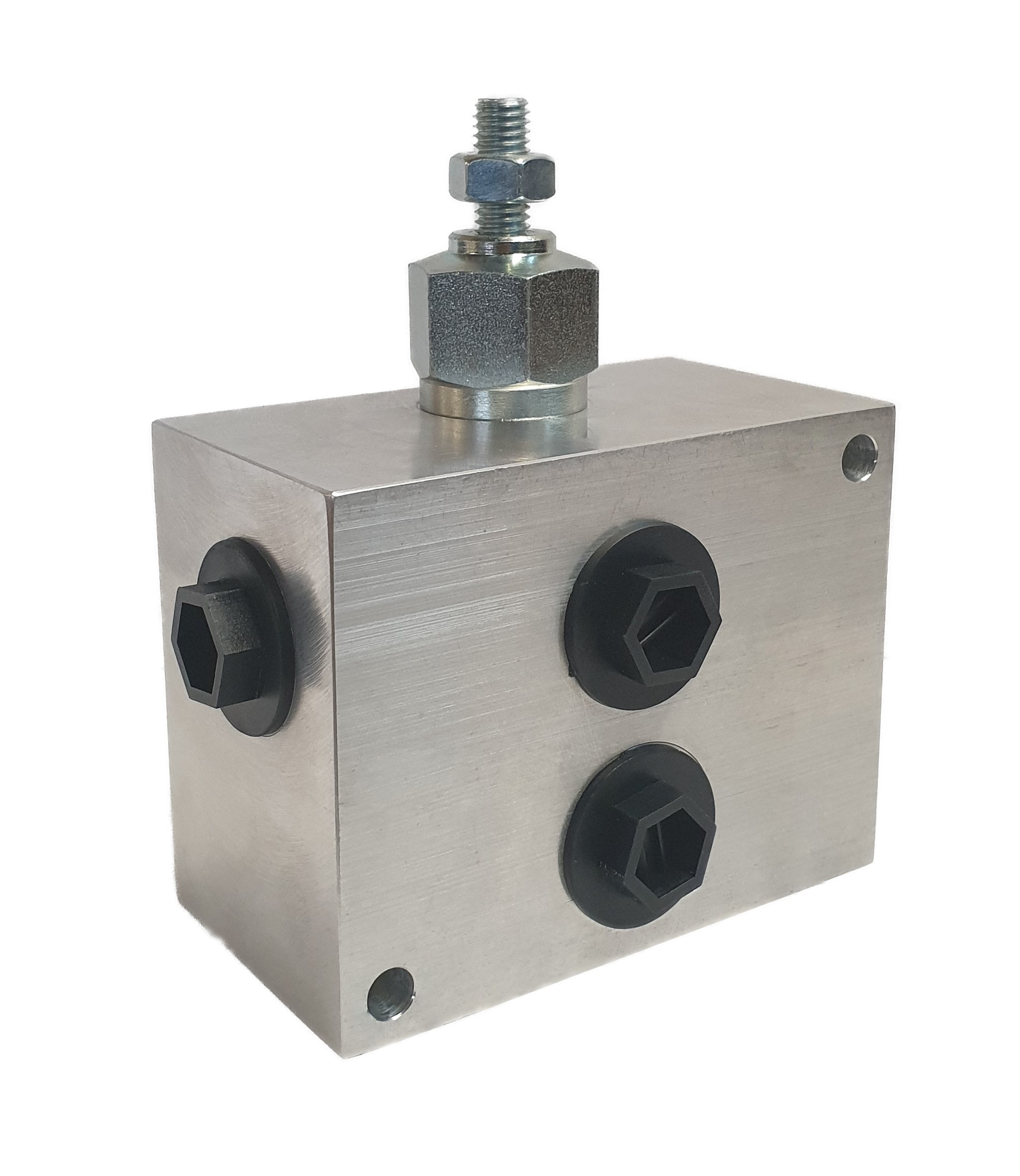

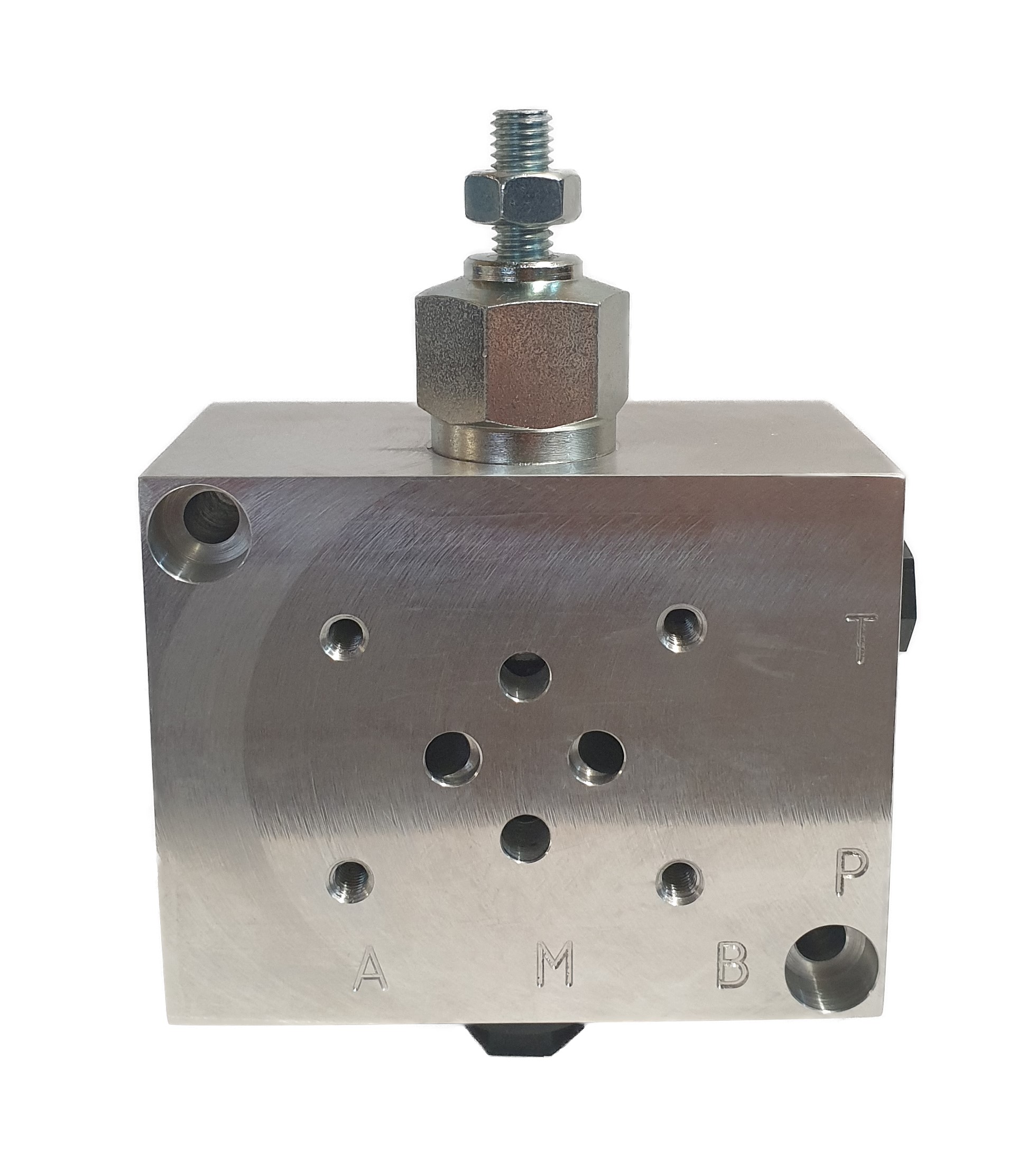

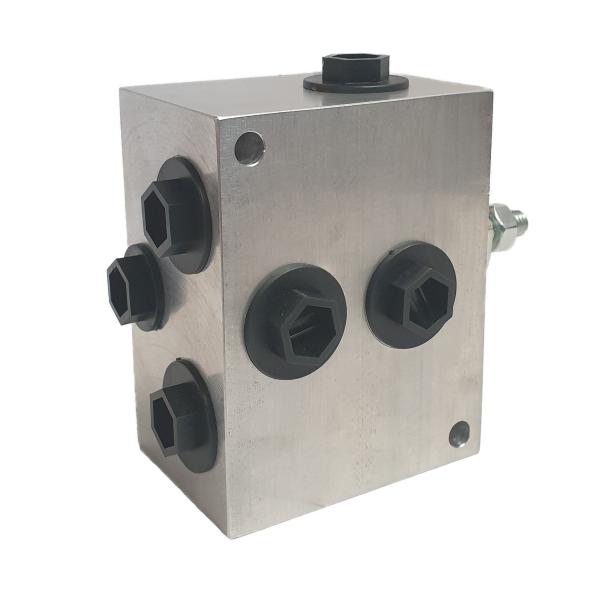

Manifold 1-stage CETOP 3, Aluminium, with pressure relief valve

1-stage Manifold for assembly with solenoid valve Cetop 3, Aluminium, with pressure relief valve

This manifold is suitable for the assembly with a solenoid valve, nominal size CETOP 3.
Its features are as follows:

• nominal size Cetop 3
• 1-stage
• max. pressure 250 bar
• connectors: A, B, P, T1: G3/8'", T2: G 1/2", M (for Manometer): G1/4"
• max. flow: T1=25 l/min, T2=40 l/min
• material: Aluminium
• incl. pressure relief valve

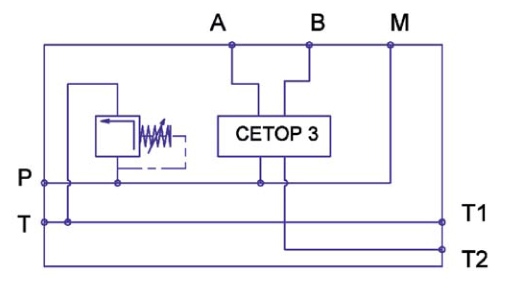

Hydraulic Scheme:

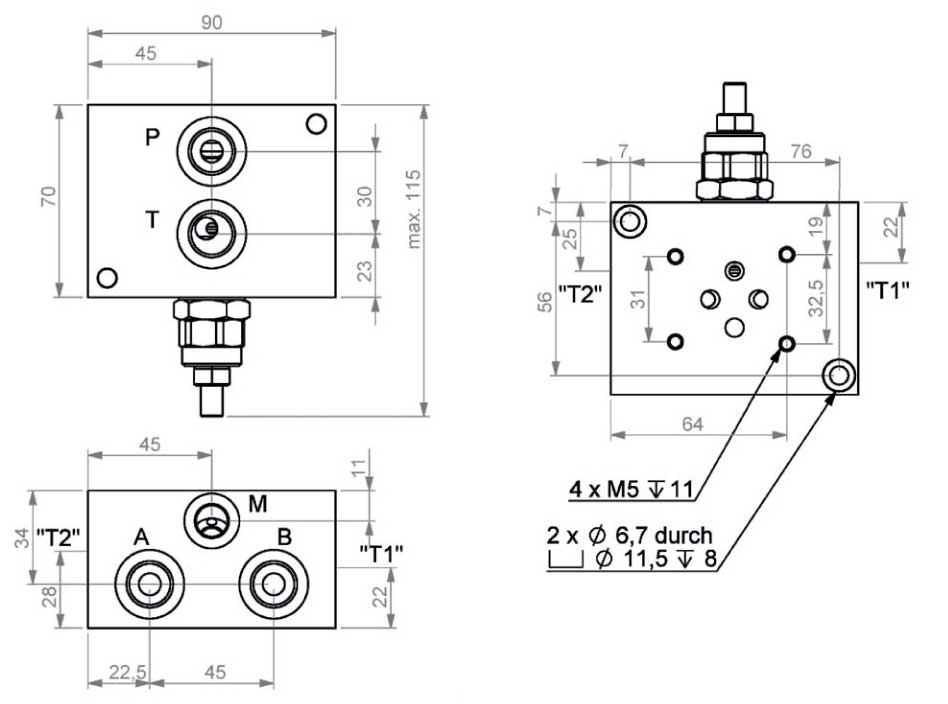

Dimensions:


Hydraulic component for integration in hydraulic systems
