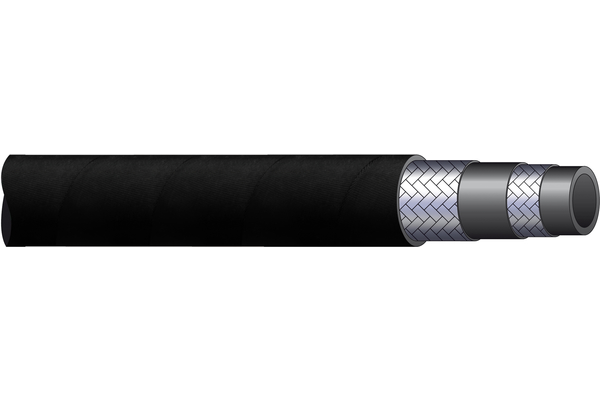

Hydraulic hose according to EN 857 - 2SC DN08
Hydraulic hose according to EN 857 - 2SC DN08
Hydraulic hose according to EN 857 - 2SC DN08

Hydraulic hose according to EN 857 - 2SC DN08

Product No.:
HMS-2SC-08
approx. 2-3 days approx. 2-3 days (abroad may vary)
Weight:
0.22 kg per piece
Minimum order:
0,1
7,23 EUR
7,23 EUR per meter

incl. 17% tax excl. Shipping costs

* depending on the delivery country
6,18 EUR excl. 17% tax
Add to wish list
Ask about product
Description

  • Reinforcement: 2 layers of high tensile steel wire braid

  • Inner tube​: Synthetic rubber, black

  • Cover: Synthetic rubber, wear resistant, black

  • Temperature range and resistance: - 40 ° C to + 100 ° C, water and water-based media up to + 70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions

  • Nominal width: 8

  • Size: 5

  • Inch: 5/16

  • Inner diameter: 7,9 mm

  • Outer diameter: max. 16,0 mm

  • R min.: 85 mm

  • Working pressure: 350 bar

  • Burstpressure: 1400 bar


Hydraulic component for integration in hydraulic systems

All our hydraulic products are new, unused and in OEM quality (except when explicitly declared otherwise). Should a particular item not be in stock or not be represented here, please don’t hesitate to contact us. We will immediately try to find an appropriate solution pertaining to your given specifications. Moreover, we are constantly expanding our product range to offer you a wide variety of hydraulic components at reasonable prices. Hydromot hydraulics – always an excellent choice at low prices!
