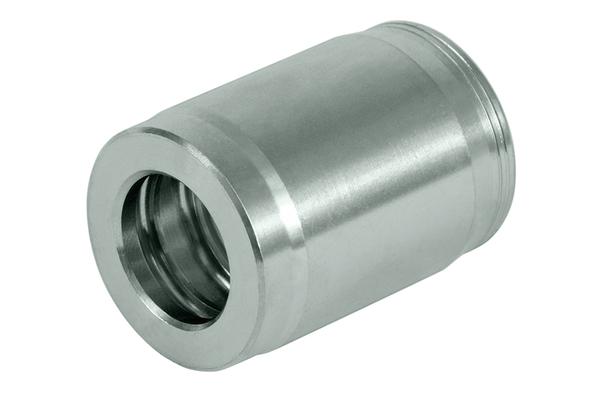

HMS-PF-22-DN12
HMS-PF-22 - DN12 - Swage ferrule for 1SN, 2SN and 2SC
Preview: HMS-PF-22-DN12
Preview: HMS-PF-22 - DN12 - Swage ferrule for 1SN, 2SN and 2SC
HMS-PF-22 - DN12 - Swage ferrule for 1SN, 2SN and 2SC
HMS-PF-22-DN12
HMS-PF-22 - DN12 - Swage ferrule for 1SN, 2SN and 2SC
Mobile Preview: HMS-PF-22-DN12
Mobile Preview: HMS-PF-22 - DN12 - Swage ferrule for 1SN, 2SN and 2SC

HMS-PF-22 - DN12 - Swage ferrule for 1SN, 2SN and 2SC

Product No.:
HMS-PF-22-13
approx. 2-3 days approx. 2-3 days (abroad may vary)
Weight:
0.056 kg per piece
2,43 EUR

incl. 17% tax excl. Shipping costs

* depending on the delivery country
2,08 EUR excl. 17% tax
Add to wish list
Ask about product
Description

  • Swage ferrule, non skive for 1SN, 2SN and 2SC

  • Material: Free cutting steel

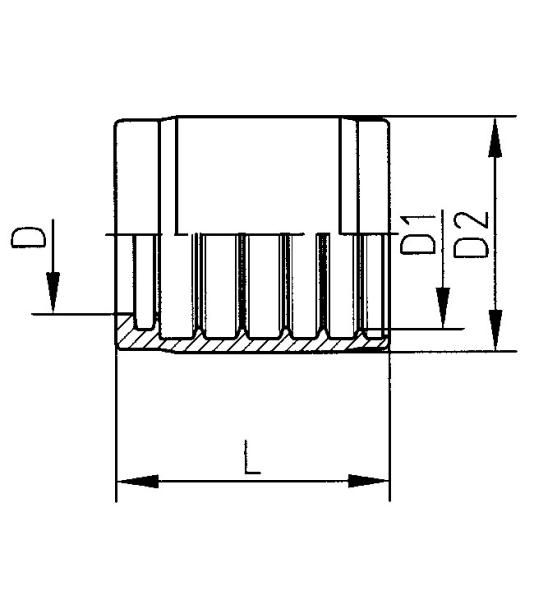

  • D: 18,8 mm

  • D1: 23,0 mm

  • D2: 30,0 mm

  • L: 36,0 mm

  • DN12 / Size 8 / 1/2"

Hydraulic component for integration in hydraulic systems

All our hydraulic products are new, unused and in OEM quality (except when explicitly declared otherwise). Should a particular item not be in stock or not be represented here, please don’t hesitate to contact us. We will immediately try to find an appropriate solution pertaining to your given specifications. Moreover, we are constantly expanding our product range to offer you a wide variety of hydraulic components at reasonable prices. Hydromot hydraulics – always an excellent choice at low prices!
