Product No.:
HMV0415SBV_SE_BR_PR
approx. 2-3 days approx. 2-3 days (abroad may vary)
93,44 EUR

incl. 17% tax excl. Shipping costs

* depending on the delivery country
79,86 EUR excl. 17% tax
Add to wish list
Ask about product
Description

Overcenter valve CPM / CPRM, Connection ports  G 1/2", with brake release, pressure relief valve

This valve is characterised by its high quality and its reasonable price.

This product’s features are as follows:

  • overcenter valve for CPM and CPRM hydraulic motor
  • with brake unclapping port
  • max. flow: 50 l/min
  • max. pressure: 350 bar
  • pilot ratio: 1:4,5
  • connections: G 1/2’’

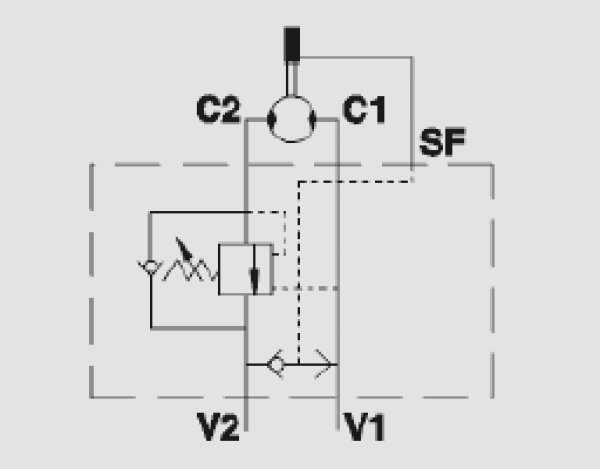

Schematic:
Scheme CPM und CPRM Anschlüsse G 1/2

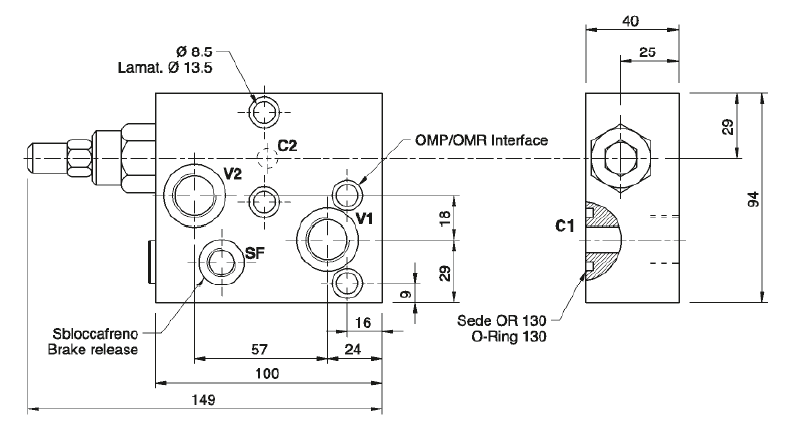

Dimensions:
Dimension CPM und CPRM Anschlüsse G 1/2


Hydraulic component for integration in hydraulic systems
All our hydraulic products are new, unused and in OEM quality (except when explicitly declared otherwise). Should a particular item not be in stock or not be represented here, please don’t hesitate to contact us. We will immediately try to find an appropriate solution pertaining to your given specifications. Moreover, we are constantly expanding our product range to offer you a wide variety of hydraulic components at reasonable prices. Hydromot hydraulics – always an excellent choice at low prices!
