ORFS-Dichtform, Außengewinde mit stirnseitigem O-Ring, UN-/UNF-/UNS-Gewinde
A: 13/16"-16 UN
X: 30,7 mm
L1: 63,2 mm
SW: 24
O-Ring 12,42x1,78 mm
DN12 / Size 8 / 1/2"
Threaded stem with bore form W (24 °) according to DIN 3861, light series
A: M16x1,5
R: 10L
X: 24,4 mm
L1: 54,6 mm
SW: 17
DN8 / Size 5 / 5/16"
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
A: M20x1,5
R: 12S
X: 27,4 mm
L1: 57,6 mm
SW: 22

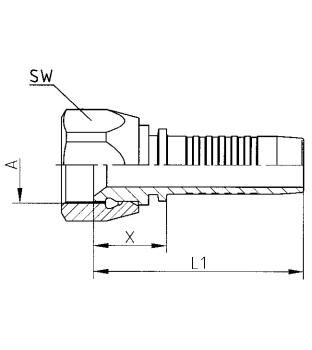

JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
A: 1/2"-20 UNF
L1: 41,0 mm

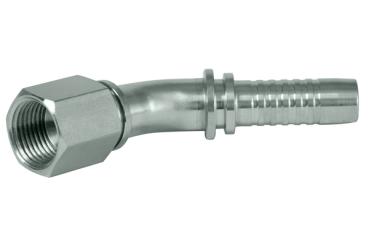

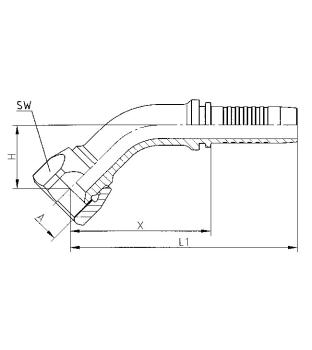

JIC threaded adapter, 74 ° cone with union nut, 45° elbow, UN / UNF thread
X: 55,5 mm
L1: 82,0 mm
H: 14,5 mm (+/- 2,5 mm)
X: 33,0 mm
L1: 59,5 mm
H: 29,0 mm (+/- 2,5 mm)
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
A: M14x1,5
R: 08L
X: 21,8 mm
L1: 52,0 mm
Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
X: 49,1 mm
L1: 79,3 mm
Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
X: 38,0 mm
L1: 68,0 mm
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
A: M18x1,5
R: 10S
X: 24,3 mm
L1: 54,5 mm
Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
X: 31,0 mm
L1: 61,0 mm
Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
X: 37,4 mm
L1: 67,4 mm
BSP sealing head, 60° cone union with BSP thread
A: G 3/8"
L1: 45,2 mm
BSP sealing head 90°, 60° cone union with BSP thread
L1: 67,5 mm
DN10 / Size 6 / 3/8"
BSP sealing head 45°, 60° cone union with BSP thread
L1: 71,5 mm
BSP sealing head, union nut with BSP thread, flat sealing
L1: 49,8 mm
{{.}}
{{{.}}}
