Threaded adapter with conical NPTF thread
A: 1/4"-18 NPTF
L1: 62,5 mm
DN10 / Size 6 / 3/8"
BSP threaded adapter, 60° cone with BSP male thread
A: G 1/2"
L1: 67,2 mm
ORFS-Dichtform, Außengewinde mit stirnseitigem O-Ring, UN-/UNF-/UNS-Gewinde
A: 1 3/16"-12 UN
X: 39,2 mm
L1: 83,5 mm
SW: 32
O-Ring 18,77x1,78 mm
DN19 / Size 12 / 3/4"

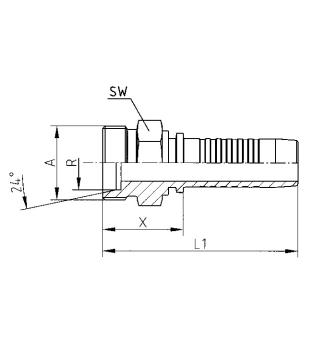

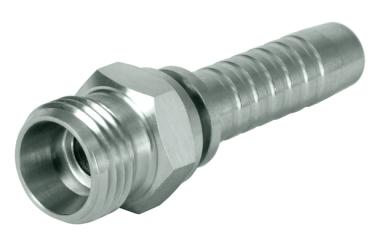

Threaded stem with bore form W (24 °) according to DIN 3861, light series
A: M22x1,5
R: 15L
X: 28,1 mm
L1: 58,3 mm
SW: 22
DN8 / Size 5 / 5/16"
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
A: M20x1,5
R: 12S
X: 27,5 mm
L1: 61,0 mm

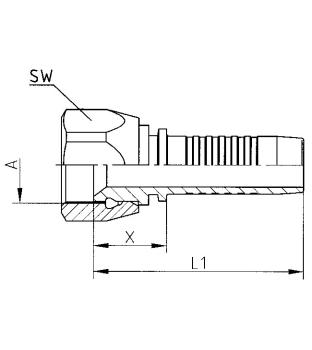

JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
A: 1/2"-20 UNF
L1: 50,3 mm

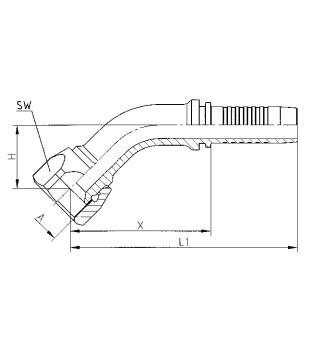

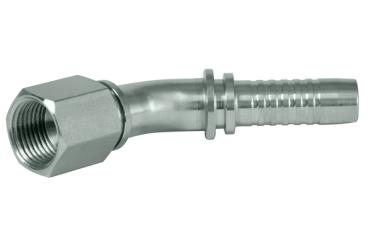

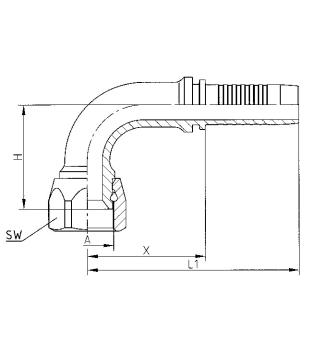

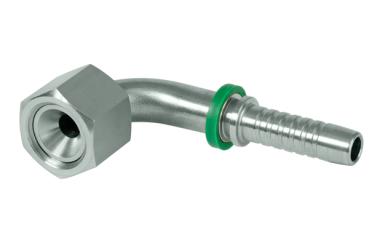

JIC threaded adapter, 74 ° cone with union nut, 45° elbow, UN / UNF thread
X: 43,5 mm
L1: 77,0 mm
H: 18,2 mm (+/- 2,5 mm)
SW: 17
X: 37,0 mm
L1: 70,5 mm
H: 37,5 mm (+/- 2,5 mm)

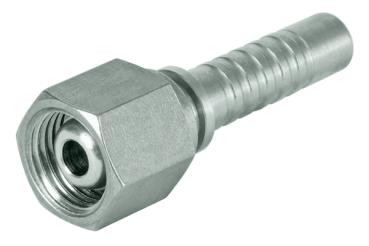

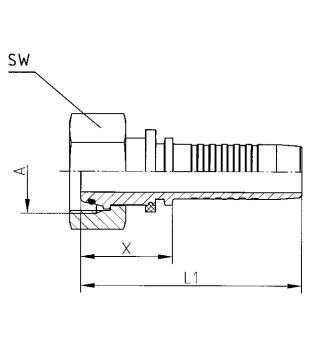

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
A: M18x1,5
R: 12L
X: 29,8 mm
L1: 60,0 mm
Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
X: 40,0 mm
L1: 70,0 mm
Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
X: 31,0 mm
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
R: 10S
X: 25,0 mm
L1: 58,5 mm
Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
X: 36,0 mm
L1: 69,5 mm
Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
X: 45,7 mm
L1: 79,0 mm

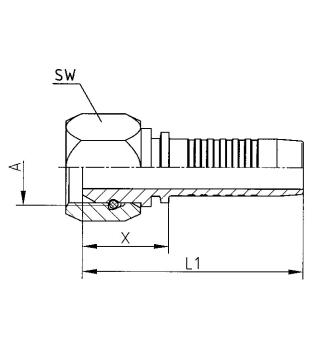

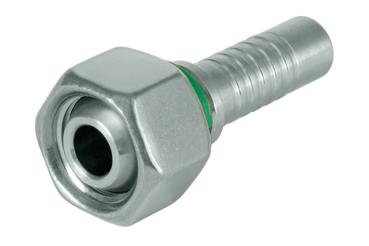

BSP sealing head, 60° cone union with BSP thread
A: G 3/8"
L1: 57,1 mm

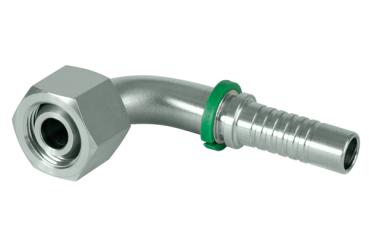

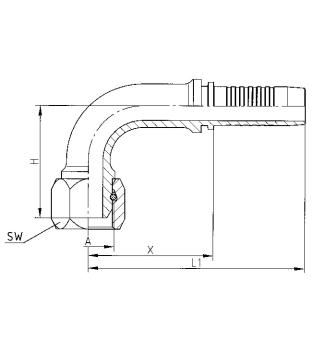

BSP sealing head 90°, 60° cone union with BSP thread
L1: 94,5 mm
DN12 / Size 8 / 1/2"
{{.}}
{{{.}}}
