Current filter

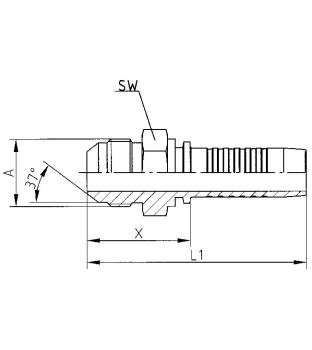

JIC threaded adapter, 74 ° cone with UN / UNF thread
A: 9/16"-18 UNF
L1: 61,4 mm
DN10 / Size 6 / 3/8"

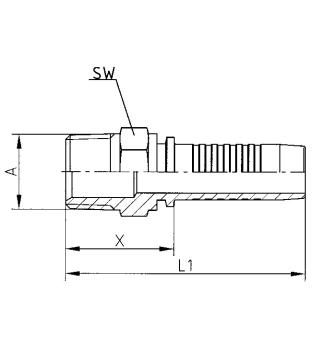

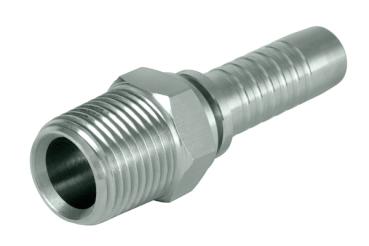

Threaded adapter with conical NPTF thread
A: 1/2"-14 NPTF
L1: 67,9 mm
BSP threaded adapter, 60° cone with BSP male thread
A: G 1/2"
L1: 63,4 mm
DN12 / Size 8 / 1/2"
ORFS-Dichtform, Außengewinde mit stirnseitigem O-Ring, UN-/UNF-/UNS-Gewinde
A: 1 11/16"-12 UN
X: 45,3 mm
L1: 103,2 mm
SW: 46
DN31 / Size 20 / 1 1/4"
Threaded stem with bore form W (24 °) according to DIN 3861, light series
A: M18x1,5
R: 12L
X: 25,5 mm
L1: 59,0 mm
SW: 19

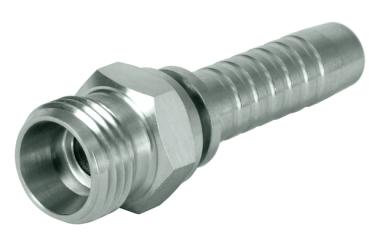

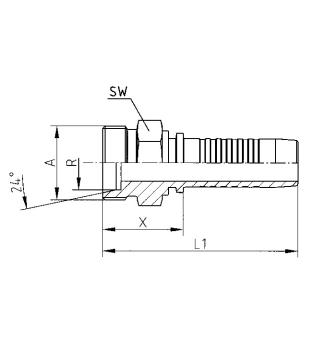

Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
A: M22x1,5
R: 14S
X: 30,1 mm
L1: 65,6 mm
SW: 22

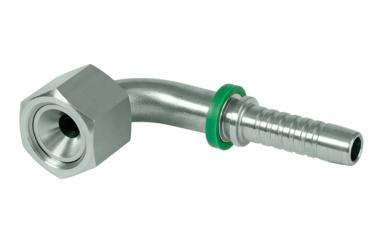

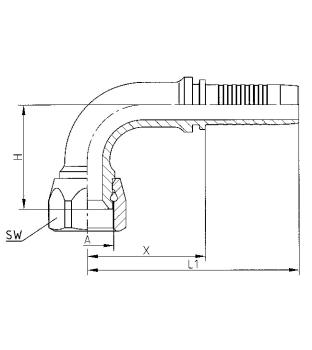

JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
A: 3/4"-16 UNF
L1: 55,5 mm
JIC threaded adapter, 74 ° cone with union nut, 45° elbow, UN / UNF thread
X: 36,7 mm
L1: 76,0 mm
H: 13,5 mm (+/- 2,5 mm)
SW: 24
X: 34,2 mm
L1: 67,5 mm
H: 29,0 mm (+/- 2,5 mm)
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
X: 26,0 mm
Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
X: 41,4 mm
L1: 74,7 mm
Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
L1: 70,8 mm
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
X: 30,3 mm
L1: 63,8 mm
SW: 27

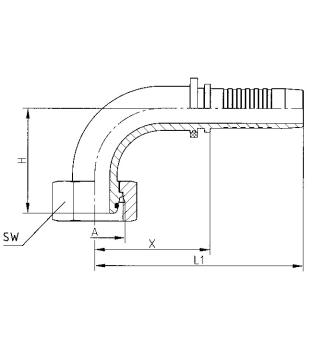

Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
X: 38,7 mm
L1: 72,0 mm
Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
X: 45,7 mm
L1: 79,0 mm

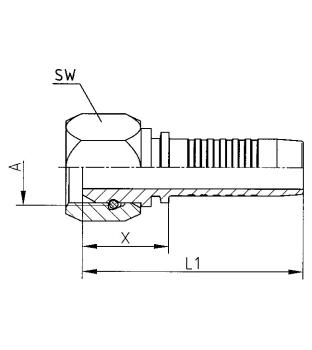

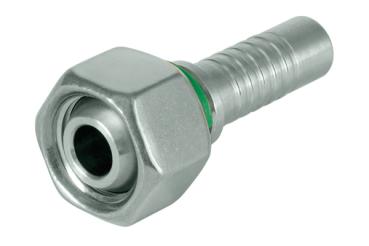

BSP sealing head, 60° cone union with BSP thread
A: G 3/8"
L1: 51,9 mm
{{.}}
{{{.}}}
