Hose Fittings

JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread

A: 3/4"-16 UNF

L1: 42,0 mm

DN12 / Size 8 / 1/2"

JIC threaded adapter, 74 ° cone with union nut, 45° elbow, UN / UNF thread

A: 7/8"-14 UNF

X: 64,0 mm

L1: 96,5 mm

H: 21,0 mm (+/- 2,5 mm)

SW: 27

DN12 / Size 8 / 1/2"

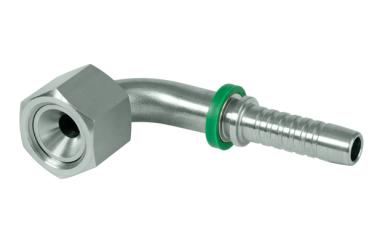

JIC threaded adapter, 74 ° cone with union nut, 45° elbow, UN / UNF thread

A: 3/4"-16 UNF

X: 39,0 mm

L1: 71,5 mm

H: 39,0 mm (+/- 2,5 mm)

SW: 24

DN12 / Size 8 / 1/2"

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series

A: M18x1,5

R: 12L

X: 24,0 mm

L1: 59,5 mm

SW: 22

DN12 / Size 8 / 1/2"

Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series

A: M18x1,5

R: 12L

X: 49,7 mm

L1: 87,0 mm

SW: 22

DN12 / Size 8 / 1/2"

Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series

A: M18x1,5

R: 12L

X: 42,5 mm

L1: 78,0 mm

SW: 22

DN12 / Size 8 / 1/2"

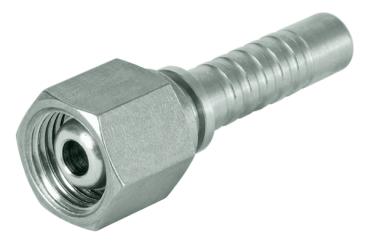

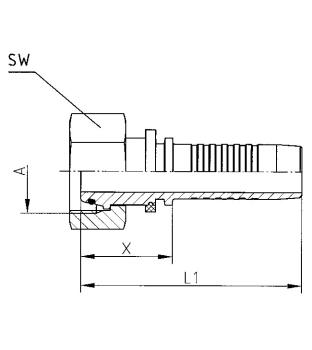

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series

A: M22x1,5

R: 14S

X: 26,7 mm

L1: 62,2 mm

SW: 27

DN12 / Size 8 / 1/2"

Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series

A: M24x1,5

R: 16S

X: 50,7 mm

L1: 86,0 mm

SW: 30

DN12 / Size 8 / 1/2"

Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series

A: M22x1,5

R: 14S

X: 44,0 mm

L1: 79,5 mm

SW: 27

DN12 / Size 8 / 1/2"

BSP sealing head, 60° cone union with BSP thread

A: G 5/8"

L1: 51,4 mm

DN12 / Size 8 / 1/2"

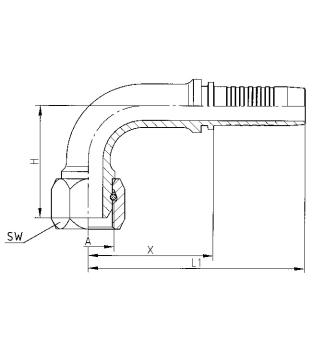

BSP sealing head 90°, 60° cone union with BSP thread

A: G 5/8"

L1: 83,5 mm

DN16 / Size 10 / 5/8"

BSP sealing head 45°, 60° cone union with BSP thread

A: G 3/4"

L1: 94,0 mm

DN16 / Size 10 / 5/8"

BSP sealing head, union nut with BSP thread, flat sealing

A: G 3/4"

L1: 64,2 mm

DN19 / Size 12 / 3/4"

Flange head SAE J514 (ISO 6162) standard series 3000 PSI

Flange size: 3/4"

D: 38,1 mm

X: 58,8 mm

L1: 114,0 mm

DN25 / Size 16 / 1"

Flange head SAE J514 (ISO 6162) standard series 3000 PSI, elbow 45°

Flange size: 1"

D: 44,5 mm

X: 85,5 mm

L1: 145,5 mm

​H: 31,5 mm (+/- 2,5 mm)

DN31 / Size 20 / 1 1/4"

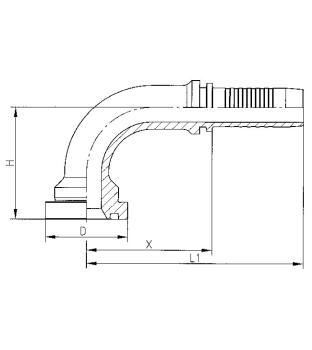

Flange head SAE J514 (ISO 6162) standard series 3000 PSI, elbow 90°

Flange size: 1 1/4"

D: 50,8 mm

X: 99,0 mm

L1: 154,0 mm

​H: 77,7 mm (+/- 2,5 mm)

DN25 / Size 16 / 1"
