Flange head SAE J514 (ISO 6162) high pressure series 6000 PSI
Flange size: 1 1/2"
D: 63,5 mm
X: 65,5 mm
L1: 125,5 mm
DN31 / Size 20 / 1 1/4"
Flange head SAE J514 (ISO 6162) high pressure series 6000 PSI, elbow 45°
X: 112,5 mm
L1: 172,5 mm
H: 49,5 mm (+/- 2,5 mm)
Flange head SAE J514 (ISO 6162) high pressure series 6000 PSI, elbow 90°
X: 109,0 mm
L1: 176,5 mm
H: 112,0 mm (+/- 2,5 mm)
DN38 / Size 24 / 1 1/2"
Banjo coupling, metric
Material: Free cutting steel
A: 22,1 mm
X: 28,3 mm
L1: 60,8 mm
K: 39,0 mm
DN12 / Size 8 / 1/2"
JIC threaded adapter, 74 ° cone with UN / UNF thread
A: 7/8"-14 UNF
L1: 74,0 mm
DN16 / Size 10 / 5/8"
Threaded adapter with conical NPTF thread
A: 1/2"-14 NPTF
L1: 82,4 mm
DN19 / Size 12 / 3/4"
BSP threaded adapter, 60° cone with BSP male thread
A: G 3/4"
L1: 79,3 mm
DN19 / Size 12 / 1/2"

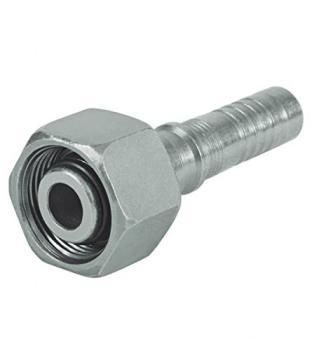

Threaded stem with bore form W (24 °) according to DIN 3861, light series
A: M30x2,0
R: 22L
X: 32,6 mm
L1: 78,6 mm
SW: 30
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
A: M36x2,0
R: 25S
X: 37,6 mm
L1: 83,6 mm
SW: 36

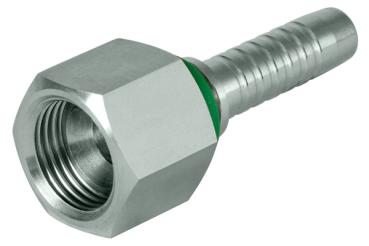

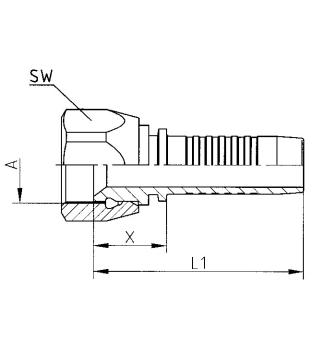

JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
A: 1 1/16"-12 UN
L1: 63,0 mm

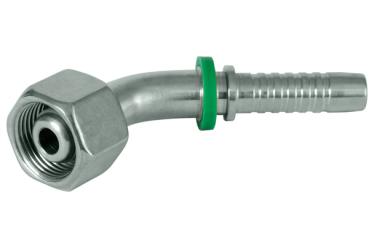

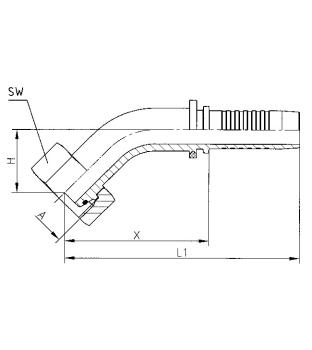

JIC threaded adapter, 74 ° cone with union nut, 45° elbow, UN / UNF thread
A: 1 3/16"-12 UN
X: 75,6 mm
L1: 114,9 mm
H: 31,9 mm (+/- 2,5 mm)
X: 42,2 mm
L1: 80,5 mm
H: 41,0 mm (+/- 2,5 mm)
SW: 32
{{.}}
{{{.}}}
