Current filter

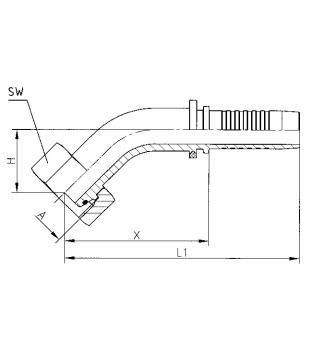

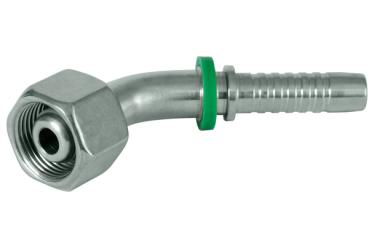

Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
A: M36x2,0
R: 28L
X: 80,0 mm
L1: 135,0 mm
SW: 41
DN25 / Size 16 / 1"

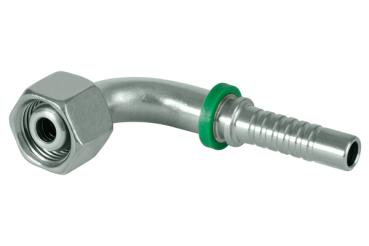

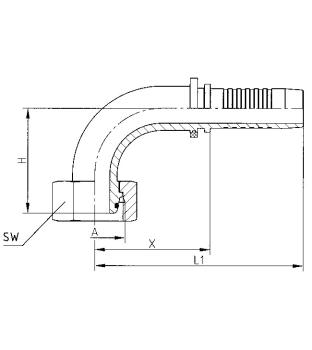

Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
X: 72,0 mm
L1: 127,0 mm
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
A: M42x2,0
R: 30S
X: 33,8 mm
L1: 89,0 mm
SW: 50
Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
X: 70,5 mm
L1: 125,5 mm

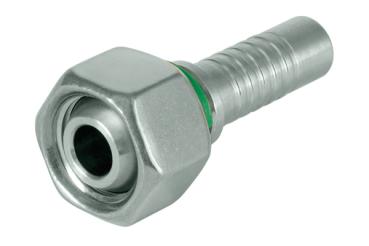

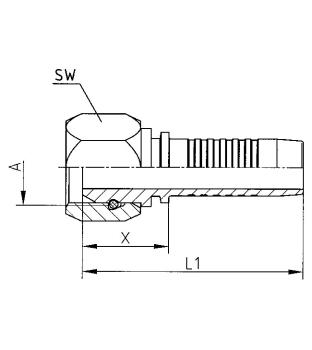

BSP sealing head, 60° cone union with BSP thread
A: G 1 1/4"
L1: 96,5 mm
DN31 / Size 20 / 1 1/4"
Flange head SAE J514 (ISO 6162) standard series 3000 PSI
Flange size: 2"
D: 71,4 mm
L1: 147,2 mm
DN51 / Size 32 / 2"
JIC threaded adapter, 74 ° cone with UN / UNF thread
A: 1 5/16"-12 UN
L1: 97,2 mm
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
A: 1 7/8"-12 UN
L1: 86,4 mm
JIC threaded adapter, 74 ° cone with union nut, 45° elbow, UN / UNF thread
X: 110,0 mm
L1: 177,5 mm
H: 111,0 mm (+/- 2,5 mm)
SW: 60
DN38 / Size 24 / 1 1/2"
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
A: M45x2,0
R: 35L
X: 35,8 mm
L1: 91,0 mm
X: 85,5 mm
L1: 140,5 mm
X: 76,0 mm
L1: 131,0 mm
A: M52x2,0
R: 38S
X: 37,5 mm
L1: 97,5 mm
X: 74,0 mm
L1: 129,0 mm
Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
X: 100,7 mm
L1: 160,5 mm
A: G 1 1/2"
L1: 109,0 mm
{{.}}
{{{.}}}
