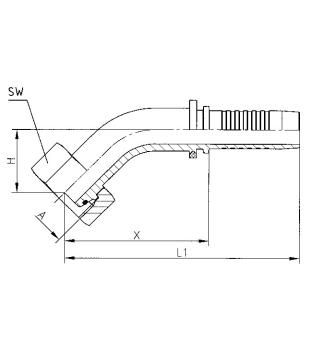

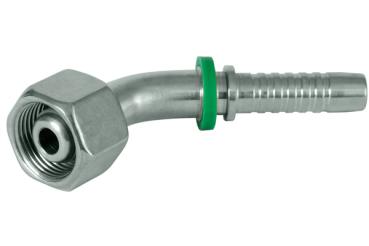

Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
A: M42x2,0
R: 30S
X: 77,0 mm
L1: 132,5 mm
SW: 50
DN19 / Size 12 / 3/4"
BSP sealing head, 60° cone union with BSP thread
A: G 3/4"
L1: 67,1 mm
BSP sealing head 90°, 60° cone union with BSP thread
A: G 1 1/2"
L1: 184,5 mm
DN38 / Size 24 / 1 1/2"
BSP sealing head 45°, 60° cone union with BSP thread
L1: 202,0 mm
Flange head SAE J514 (ISO 6162) standard series 3000 PSI
Flange size: 1 1/4"
D: 71,4mm
X: 66,5mm
L1: 134,0 mm
Flange head SAE J514 (ISO 6162) standard series 3000 PSI, elbow 45°
Flange size: 1 1/2"
D: 60,3 mm
X: 128,7 mm
L1: 203,7 mm
H: 55,3 mm (+/- 2,5 mm)
DN51 / Size 32 / 2"
Flange head SAE J514 (ISO 6162) standard series 3000 PSI, elbow 90°
X: 116,0 mm
L1: 174,5 mm
H: 110,0 mm (+/- 2,5 mm)
Flange head SAE J514 (ISO 6162) high pressure series 6000 PSI
Flange size: 2"
D: 79,4 mm
X: 73,5 mm
L1: 141,0 mm
Flange head SAE J514 (ISO 6162) high pressure series 6000 PSI, elbow 45°
X: 150,0 mm
L1: 223,5 mm
H: 65,5 mm (+/- 2,5 mm)
Banjo coupling, metric
Material: Free cutting steel
A: 30,1 mm
X: 44,8 mm
L1: 100,0 mm
K: 54,0 mm
DN25 / Size 16 / 1"
JIC threaded adapter, 74 ° cone with UN / UNF thread
A: 1 1/16"-12 UN
L1: 85,0 mm
Threaded adapter with conical NPTF thread
A: 3/4"-14 NPTF
L1: 94,0 mm
BSP threaded adapter, 60° cone with BSP male thread
A: G 1 1/4"
L1: 105,4 mm
DN31 / Size 20 / 1 1/4"
Threaded stem with bore form W (24 °) according to DIN 3861, light series
A: M52x2,0
R: 42L
X: 42,3 mm
L1: 110,0 mm
SW: 55
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
R: 38S
X: 46,3 mm
L1: 101,5 mm
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
A: 1 5/16"-12 UN
L1: 68,6 mm
{{.}}
{{{.}}}
