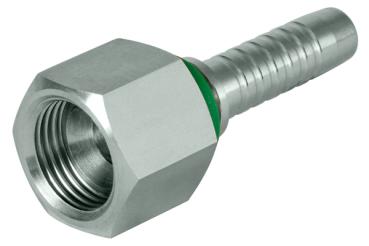

JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
A: 1 5/8"-12 UN
L1: 81,0 mm
DN25 / Size 16 / 1"
JIC threaded adapter, 74 ° cone with union nut, 45° elbow, UN / UNF thread
X: 132,0 mm
L1: 189,9 mm
H: 35,0 mm (+/- 2,5 mm)
SW: 50
DN31 / Size 20 / 1 1/4"
A: 1 5/16"-12 UN
X: 72,0 mm
L1: 126,3 mm
H: 67,0 mm (+/- 2,5 mm)
SW: 41

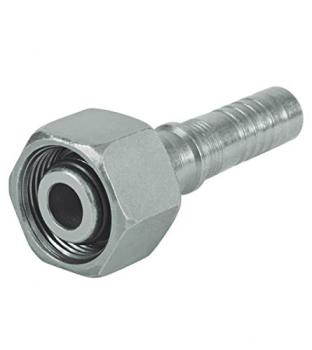

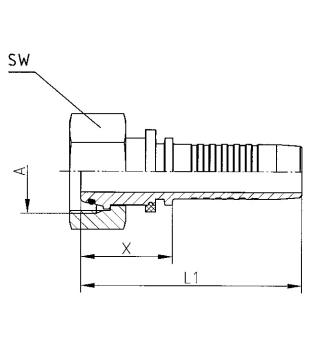

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
A: M30x2,0
R: 22L
X: 29,5 mm
L1: 84,5 mm
SW: 36

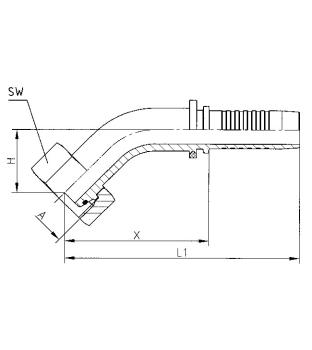

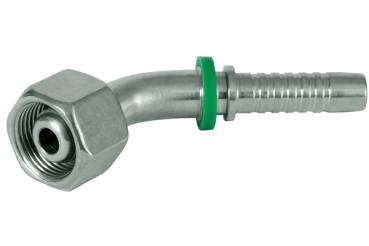

Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
X: 74,0 mm
L1: 129,0 mm

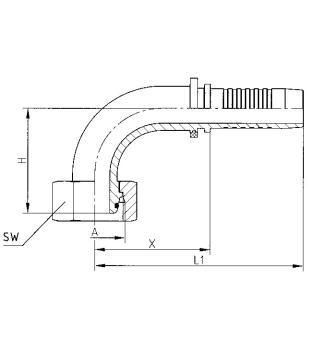

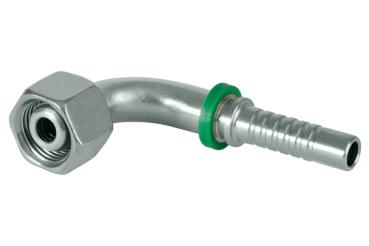

Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
X: 64,0 mm
L1: 119,0 mm
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
A: M36x2,0
R: 25S
X: 34,0 mm
L1: 108,0 mm
Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
A: M52x2,0
R: 38S
X: 87,5 mm
L1: 142,5 mm
SW: 60

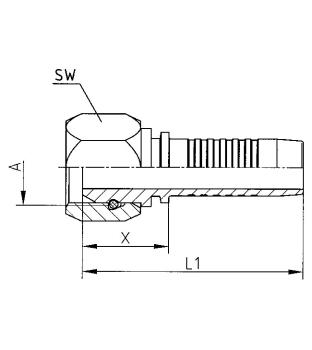

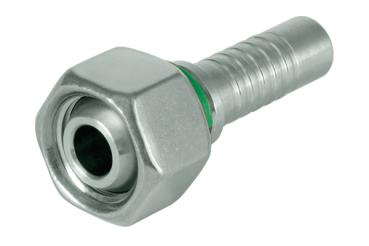

BSP sealing head, 60° cone union with BSP thread
A: G 1 1/4"
L1: 86,7 mm
Flange head SAE J514 (ISO 6162) standard series 3000 PSI
Flange size: 1 1/2"
D: 60,3 mm
X: 71,5 mm
L1: 146,5 mm
DN51 / Size 32 / 2"
Flange head SAE J514 (ISO 6162) standard series 3000 PSI, elbow 90°
Flange size: 2"
D: 71,4 mm
X: 141,0 mm
L1: 237,0 mm
H: 150,0 mm (+/- 2,5 mm)
JIC threaded adapter, 74 ° cone with UN / UNF thread
A: 1 3/16"-12 UN
L1: 99,6 mm
L1: 86,0 mm
X: 88,0 mm
L1: 145,9 mm
H: 77,0 mm (+/- 2,5 mm)
R: 28L
X: 32,8 mm
L1: 88,0 mm
{{.}}
{{{.}}}
