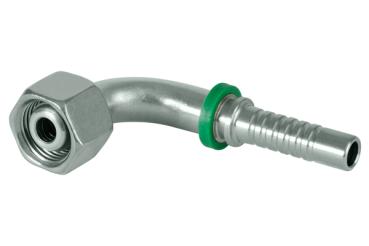

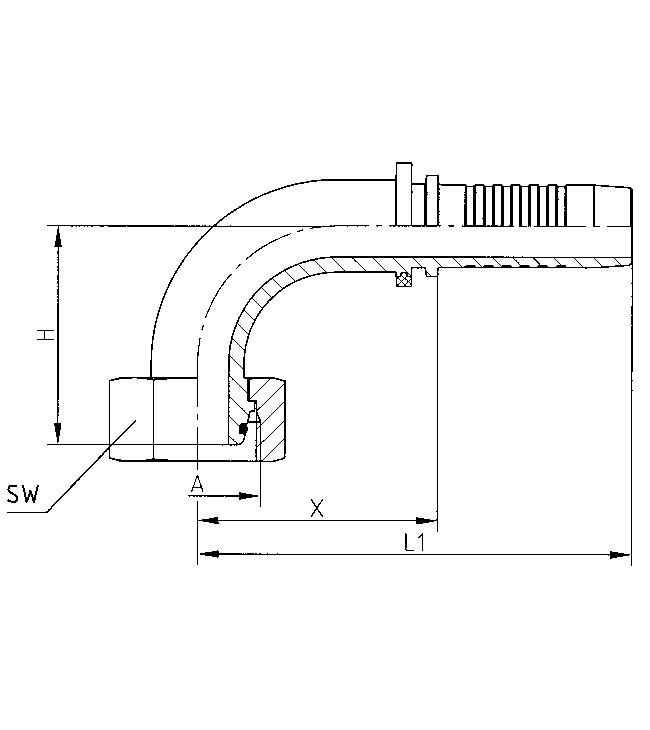

Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series

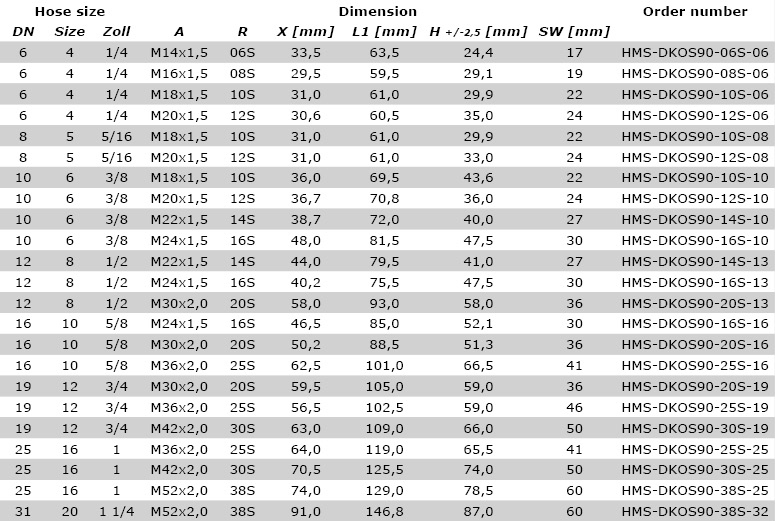

A: M16x1,5
R: 08S
X: 29,5 mm
L1: 59,5 mm
SW: 19
DN6 / Size 4 / 1/4"
A: M18x1,5
R: 10S
X: 31,0 mm
L1: 61,0 mm
SW: 22
A: M14x1,5
R: 06S
X: 33,5 mm
L1: 63,5 mm
SW: 17
A: M20x1,5
R: 12S
X: 30,6 mm
L1: 60,5 mm
SW: 24
DN8 / Size 5 / 5/16"
X: 36,0 mm
L1: 69,5 mm
DN10 / Size 6 / 3/8"
X: 36,7 mm
L1: 70,8 mm
A: M22x1,5
R: 14S
X: 38,7 mm
L1: 72,0 mm
SW: 27
A: M24x1,5
R: 16S
X: 48,0 mm
L1: 81,5 mm
SW: 30
X: 44,0 mm
L1: 79,5 mm
DN12 / Size 8 / 1/2"
X: 40,2 mm
L1: 75,5 mm
A: M30x2,0
R: 20S
X: 58,0 mm
L1: 93,0 mm
SW: 36
X: 46,5 mm
L1: 85,0 mm
DN16 / Size 10 / 5/8"
X: 50,2 mm
L1: 88,5 mm
A: M36x2,0
R: 25S
X: 62,5 mm
L1: 101,0 mm
SW: 41
{{.}}
{{{.}}}
