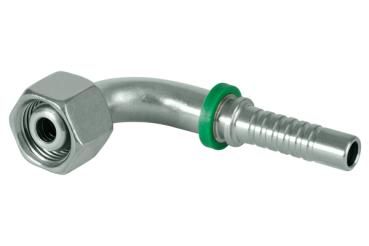

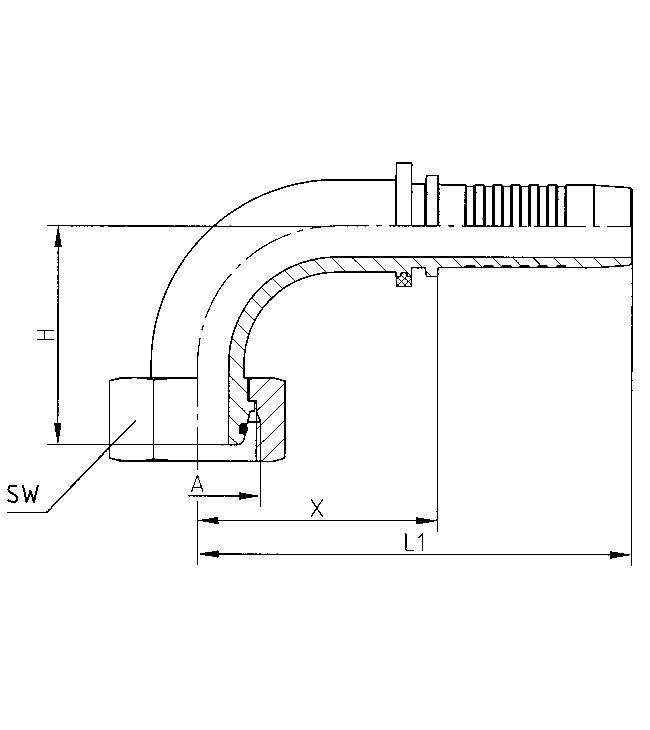

Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
A: M14x1,5
R: 08L
X: 29,5 mm
L1: 59,5 mm
SW: 17
DN6 / Size 4 / 1/4"
A: M16x1,5
R: 10L
X: 31,0 mm
L1: 61,0 mm
SW: 19
A: M12x1,5
R: 06L
X: 25,0 mm
L1: 55,0 mm
SW: 14
A: M18x1,5
R: 12L
X: 30,5 mm
L1: 60,5 mm
SW: 22
X: 38,0 mm
L1: 68,0 mm
DN8 / Size 5 / 5/16"
X: 38,2 mm
L1: 71,5 mm
DN10 / Size 6 / 3/8"
X: 36,7 mm
L1: 70,8 mm
A: M22x1,5
R: 15L
X: 39,0 mm
L1: 72,5 mm
SW: 27
X: 42,5 mm
L1: 78,0 mm
DN12 / Size 8 / 1/2"
X: 40,7 mm
L1: 76,0 mm
A: M26x1,5
R: 18L
X: 55,5 mm
L1: 91,0 mm
SW: 32
X: 46,5 mm
L1: 85,0 mm
DN16 / Size 10 / 5/8"
X: 45,7 mm
L1: 84,0 mm
A: M30x2,0
R: 22L
X: 62,5 mm
L1: 101,0 mm
SW: 36
{{.}}
{{{.}}}
